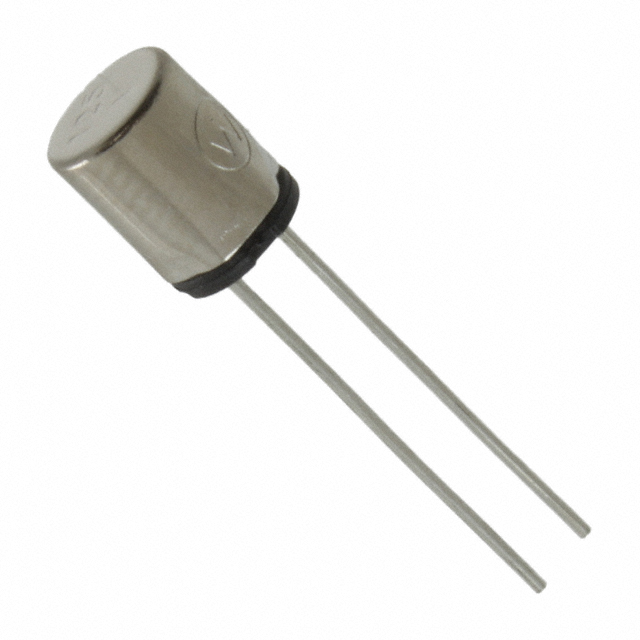

30300500001 Series

FUSE 125V FA TR3 LL AMMO .050A

Catalog

FUSE 125V FA TR3 LL AMMO .050A

Part	Current Rating (Amps)	Voltage Rating - AC	Package / Case	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	DC Cold Resistance	Approval Agency	Melting I²t	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Fuse Type	Breaking Capacity @ Rated Voltage
Littelfuse/Commercial Vehicle Products 30300500001	50 mA	125 V	Can Radial Vertical	Through Hole	63 VDC	70 °C	-25 °C	Fast Blow	3.41 Ohms	CSA UL	0.00007	8 mm	0.315 "	0.236 in	6 mm	Board Mount	50 A

FUSE 125V FA TR3 LL AMMO .050A

• Lead-free and RoHS compliant

• Reduced PCB space requirements

• Direct solderable or plug-in versions

• Internationally approved

• Low internal resistance

• Shocksafe casing

• Vibration resistant
