1320 Series

Catalog

SURGE PROTECTOR, DIN RAIL, MAINS SURGE PROTECTOR, 2 POLE, TYPE 2 & 4, 30 KA, 65 VDC, DIN RAIL

Part	Voltage - Protection Level (VP) (2416)	Number of Poles	Form	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Max) (8/20µS) [Max]	Voltage - Continuous Operating (Max) (MCOV) [Max]	Mounting Type	Type	Features	Current - Discharge (Nom) (8/20µS)

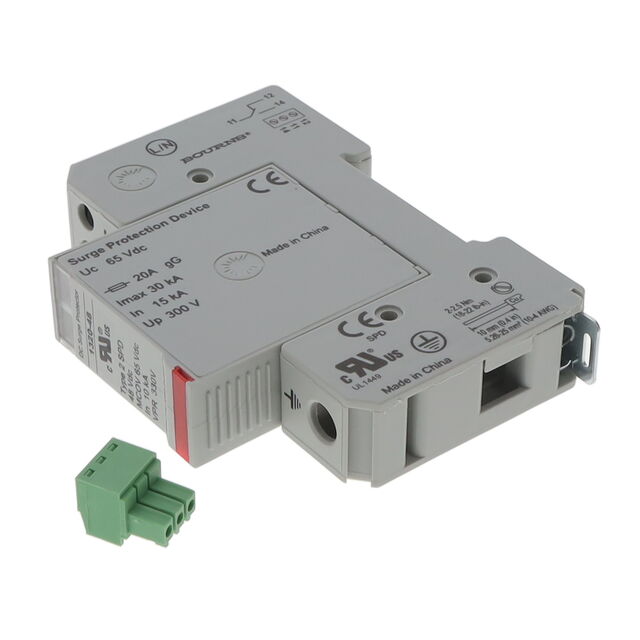

Bourns Inc. 1320-S-48	300 V	2	Base + Module	CE CSA UR	85 °C	-40 C	30 kA	65 VDC	DIN Rail	Type 2 Type 4	Remote Signaling Contacts	15 kA

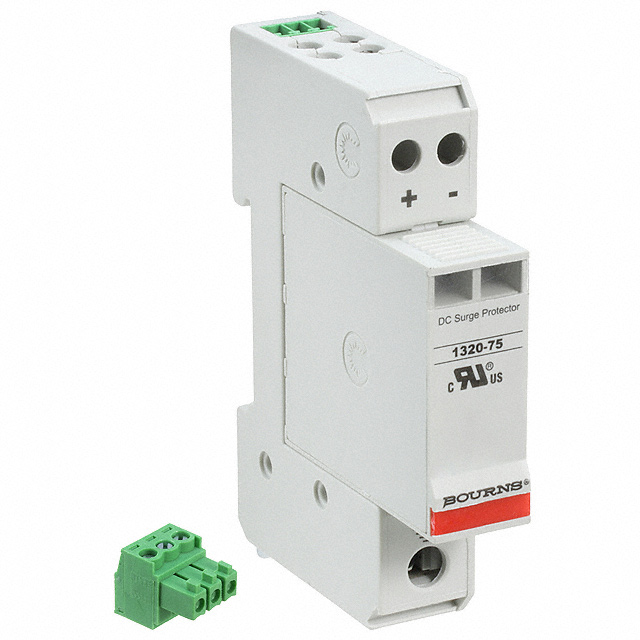

Bourns Inc. 1320-S-75	390 V	2	Base + Module	CE CSA UR	85 °C	-40 C	40 kA	100 VDC	DIN Rail	Type 2 Type 4	Remote Signaling Contacts	20 kA
