R1413060 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

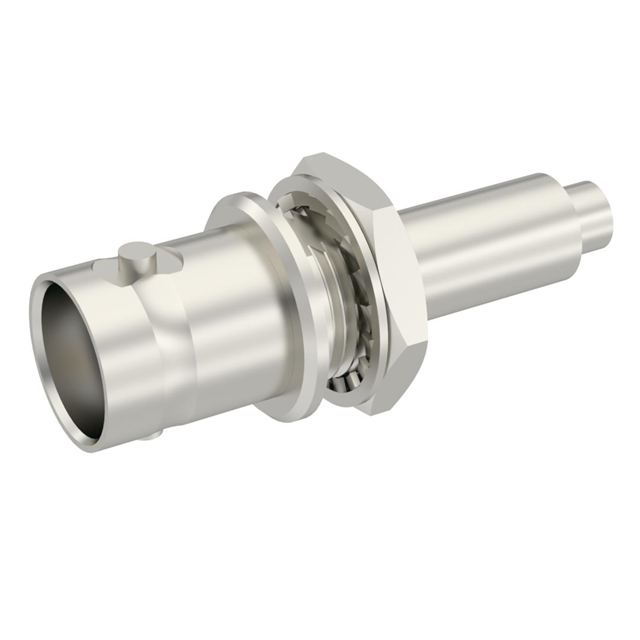

BNC F STR BHD CR 2.6/50 C100
| Part | Voltage Rating | Mating Cycles | Body Material | Center Contact Plating | Dielectric Material | Includes | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Cable Group | Cable Group | Mounting Feature | Connector Type | Housing Color | Contact Termination | Impedance | Number of Ports | Connector Style | Shield Termination | Center Contact Material | Fastening Type | Frequency - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | 1 Braid Clamp 1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Lockwasher 1 Nut | Nickel | -65 ░C | 165 °C | RG-174 | 316 | Bulkhead - Rear Side Nut | Female Socket Jack | Silver | Crimp | 50 Ohms | 1 | BNC | Crimp | Beryllium Copper | Bayonet Lock | 4 GHz | Panel Mount |
