MEC1-130 Series

Catalog

CONN EDGE DUAL FMALE 60POS 0.039

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Gender	Read Out	Termination	Mounting Type	Contact Type	Color	Features	Number of Rows	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Card Type	Material - Insulation
Samtec Inc. MEC1-130-02-S-D-K-TR	0.76 Ám	30 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black	Pick and Place	2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-S-D-NP	0.76 Ám	30 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black		2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-L-D-EM1	0.25 Ám	10 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Board Edge Straddle Mount	Loop Bellows	Black		2	Gold	Phosphor Bronze	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)

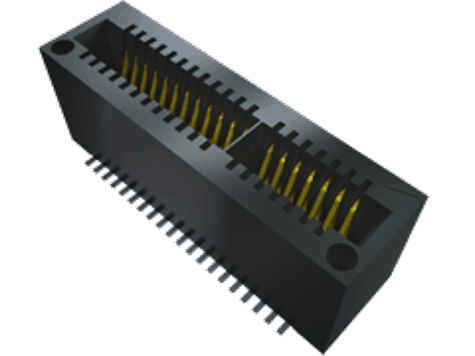

Samtec Inc. MEC1-130-02-L-D-NP-A	0.25 Ám	10 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black	Board Guide	2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-S-D-LC	0.76 Ám	30 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black		2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-S-D-NP-A-K-TR	0.76 Ám	30 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black	Board Guide Pick and Place	2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-F-D-EM2-NP	0.076 Ám	3 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Board Edge Straddle Mount	Loop Bellows	Black		2	Gold	Phosphor Bronze	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-F-D-NP-K	0.076 Ám	3 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black	Pick and Place	2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-L-D-NP-A-TR	0.25 Ám	10 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black	Board Guide	2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC1-130-02-S-D	0.76 Ám	30 Áin	0.039 in	1 mm	0.062 in	1.57 mm	Female	Dual	Solder	Surface Mount	Loop Bellows	Black		2	Gold	Beryllium Copper	-55 °C	125 °C	60	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)
