PT6202 Series

Catalog

DC DC CONVERTER 5V

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Type	Efficiency

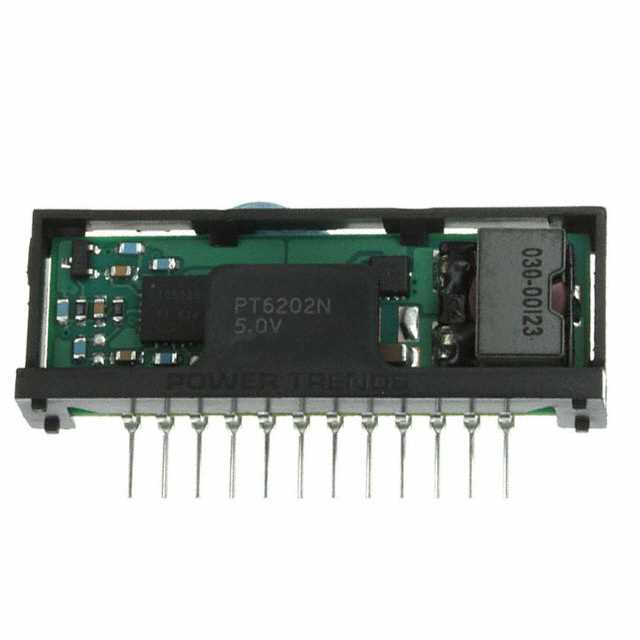

Texas Instruments PT6202N	7.25 V	30 V	1	5 V	2 A	12-SIP Module	-40 °C	60 °C	ITE (Commercial)	Through Hole	Non-Isolated PoL Module	90 %

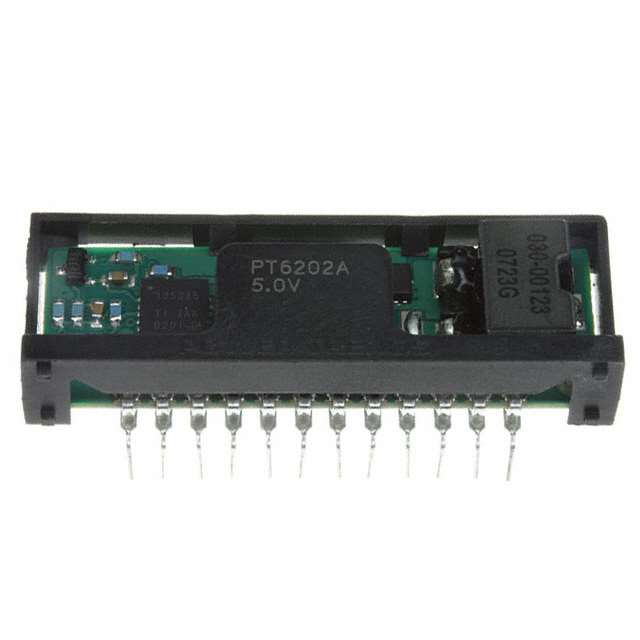

Texas Instruments PT6202A	7.25 V	30 V	1	5 V	2 A	12-SIP Module	-40 °C	60 °C	ITE (Commercial)	Through Hole Right Angle	Non-Isolated PoL Module	90 %
Texas Instruments PT6202R	7.25 V	30 V	1	5 V	2 A	12-SIP Module	-40 °C	60 °C	ITE (Commercial)	Through Hole	Non-Isolated PoL Module	90 %
Texas Instruments PT6202B	7.25 V	30 V	1	5 V	2 A	12-SIP SMD Module	-40 °C	60 °C	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module	90 %
Texas Instruments PT6202C	7.25 V	30 V	1	5 V	2 A	12-SIP SMD Module	-40 °C	60 °C	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module	90 %
Texas Instruments PT6202G	7.25 V	30 V	1	5 V	2 A	12-SIP Module	-40 °C	60 °C	ITE (Commercial)	Through Hole Right Angle	Non-Isolated PoL Module	90 %
