1445086 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

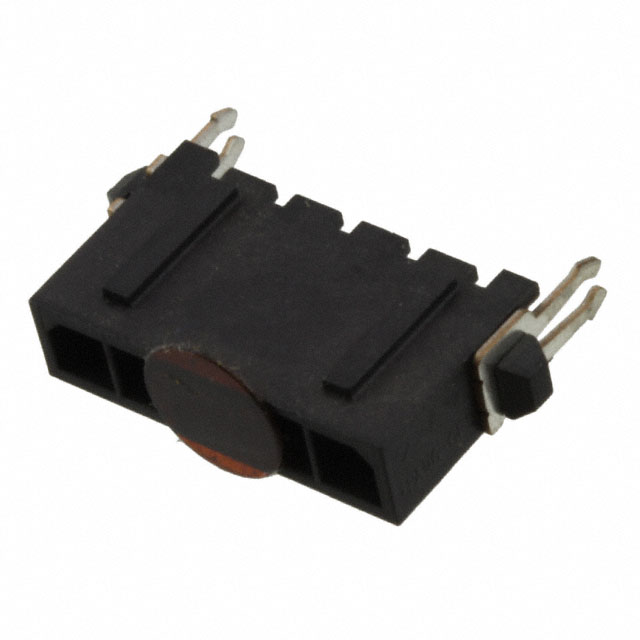

CONN HEADER SMD 5POS 3MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Contact Material	Number of Rows	Features	Insulation Material	Voltage Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Number of Positions	Contact Finish - Mating	Connector Type	Insulation Color	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Style	Insulation Height [z]	Insulation Height [z]
TE Connectivity AMP Connectors 1445086-5	General Purpose	2.54 µm	100 µin	0.38 µm	15 µin	Locking Ramp	All	Brass	1	Board Lock Pick and Place	Nylon Polyamide (PA)	250 V	Square	3 mm	0.118 in	Shrouded - 4 Wall	Tin-Lead	-40 C	105 ░C	Male Pin	Solder	5	Gold	Header	Black	Surface Mount	Varies by Wire Gauge	UL94 V-0	Board to Cable/Wire	9.25 mm	0.364 in
TE Connectivity AMP Connectors 1-1445086-1	General Purpose	2.54 µm	100 µin	0.38 µm	15 µin	Locking Ramp	All	Brass	1	Board Lock Pick and Place	Nylon Polyamide (PA)	250 V	Square	3 mm	0.118 in	Shrouded - 4 Wall	Tin-Lead	-40 C	105 ░C	Male Pin	Solder	11	Gold	Header	Black	Surface Mount	Varies by Wire Gauge	UL94 V-0	Board to Cable/Wire	9.25 mm	0.364 in
TE Connectivity AMP Connectors 1445086-7	General Purpose	2.54 µm	100 µin	0.38 µm	15 µin	Locking Ramp	All	Brass	1	Board Lock Pick and Place	Nylon Polyamide (PA)	250 V	Square	3 mm	0.118 in	Shrouded - 4 Wall	Tin-Lead	-40 C	105 ░C	Male Pin	Solder	7	Gold	Header	Black	Surface Mount	Varies by Wire Gauge	UL94 V-0	Board to Cable/Wire	9.25 mm	0.364 in
