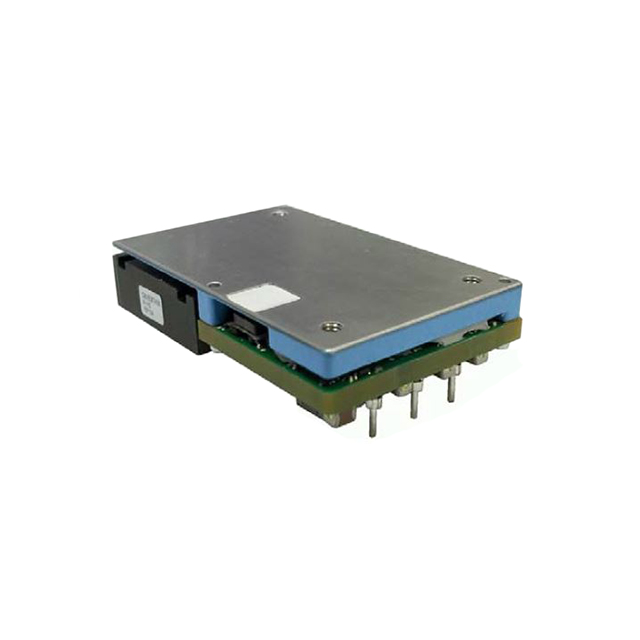

QBDE067 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 12V 804W
| Part | Mounting Type | Voltage - Input (Min) [Min] | Power (Watts) | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Voltage - Isolation | Type | Voltage - Output 1 | Number of Outputs | Current - Output (Max) [Max] | Applications | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Through Hole | 40 V | 804 W | Quarter Brick | 12.7 mm | 36.8 mm | 0.5 in | 58.4 mm | 2.3 in | 1.45 in | 60 V | 2250 VDC | Intermediate Bus Converter | 12 V | 1 | 67 A | ITE (Commercial) | 96.1 % | 85 °C | -40 C | OCP OTP OVP Remote On/Off UVLO |
OmniOn Power™ | Through Hole | 40 V | 804 W | Quarter Brick | 12.7 mm | 36.8 mm | 0.5 in | 58.4 mm | 2.3 in | 1.45 in | 60 V | 2250 VDC | Intermediate Bus Converter | 12 V | 1 | 67 A | ITE (Commercial) | 96.1 % | 85 °C | -40 C | OCP OTP OVP Remote On/Off UVLO |
