8P1P010 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, CABLE MOUNT PLUG, 10 CONTACTS, SOLDER PIN, PUSH-PULL
| Part | Orientation | Contact Finish - Mating | Contact Material | Current Rating (Amps) | Ingress Protection | Number of Positions | Connector Type | Voltage Rating | Shielding | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Fastening Type | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Mounting Feature | Termination | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Plug Male Pins | 333 V | Unshielded | 0.197 in | 4 mm | 0.157 in | 5 mm | Push-Pull | Free Hanging (In-Line) | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | ||||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Plug Male Pins | 333 V | Unshielded | 0.157 in | 2.2 mm | 0.087 in | 3.99 mm | Push-Pull | Free Hanging (In-Line) | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | ||||

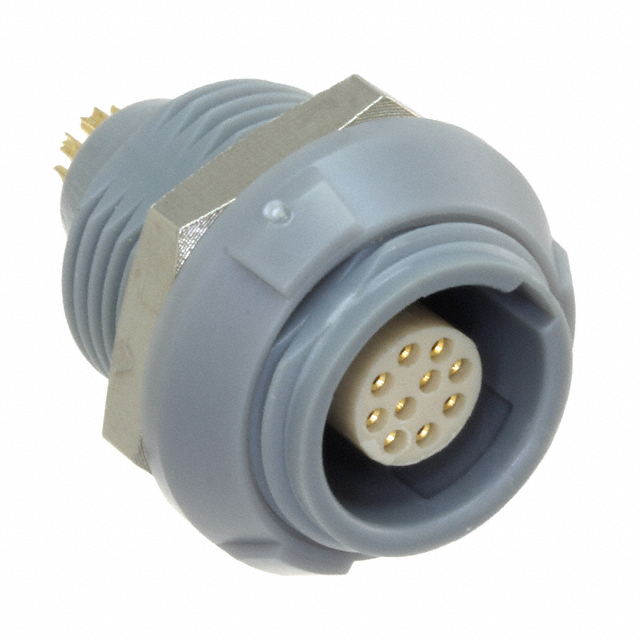

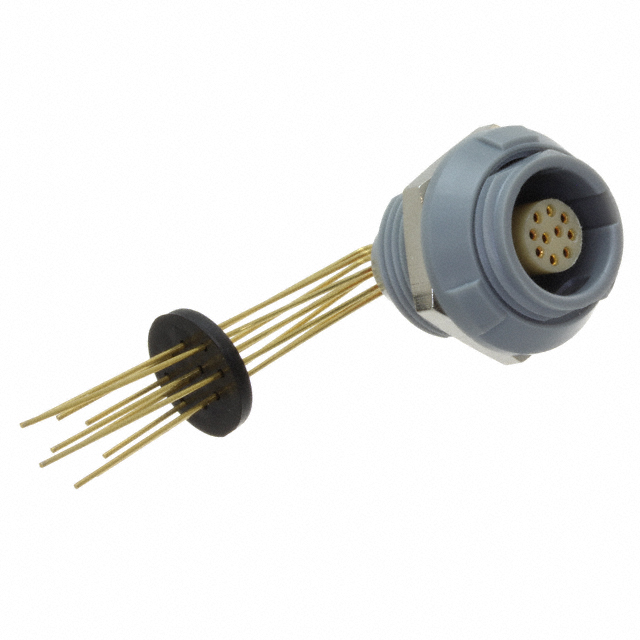

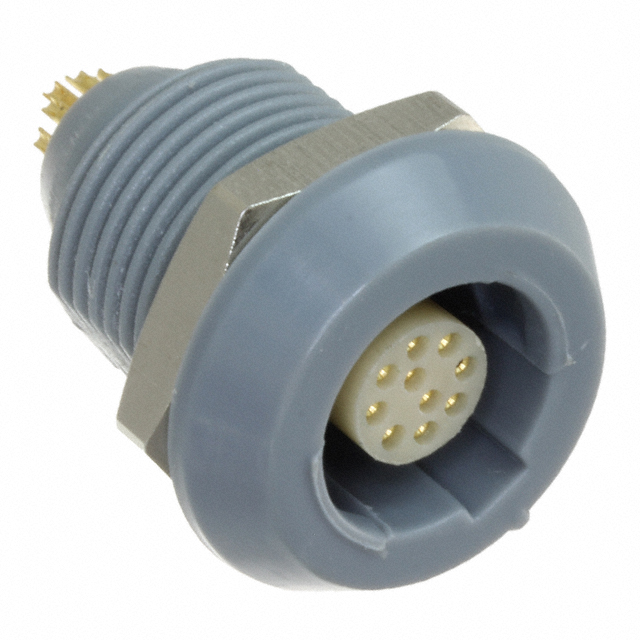

 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Receptacle Female Sockets | 333 V | Unshielded | Push-Pull | Panel Mount Right Angle Through Hole | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Bulkhead - Front Side Nut | Solder | Gray | |||||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Receptacle Female Sockets | 333 V | Unshielded | Push-Pull | Panel Mount Through Hole | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Bulkhead - Front Side Nut | Solder | Blue Gray | |||||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Receptacle Female Sockets | 333 V | Unshielded | Push-Pull | Panel Mount | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Bulkhead - Front Side Nut | |||||||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Plug Male Pins | 333 V | Unshielded | 0.197 in | 4 mm | 0.157 in | 5 mm | Push-Pull | Free Hanging (In-Line) | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Backshell Strain Relief | |||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Receptacle Female Sockets | 333 V | Unshielded | Push-Pull | Panel Mount | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Bulkhead - Rear Side Nut | Gray | ||||||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Receptacle Female Sockets | 333 V | Unshielded | Push-Pull | Panel Mount Right Angle Through Hole | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Bulkhead - Front Side Nut | Solder | Gray Yellow | |||||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Plug Male Pins | 333 V | Unshielded | 0.197 in | 4 mm | 0.157 in | 5 mm | Push-Pull | Free Hanging (In-Line) | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Gray Green | Backshell Strain Relief | ||
 NorComp Inc. | Keyed | Gold | Copper Alloy | 3 A | IP50 - Dust Protected | 10 | Plug Male Pins | 333 V | Unshielded | 0.236 in | 5 mm | 0.197 in | 6 mm | Push-Pull | Free Hanging (In-Line) | 7 µin | 0.178 µm | Plastic | Polyphenylene Sulfide (PPS) | 120 °C | -20 ░C | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Blue Gray | Backshell Strain Relief |
