1546074 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

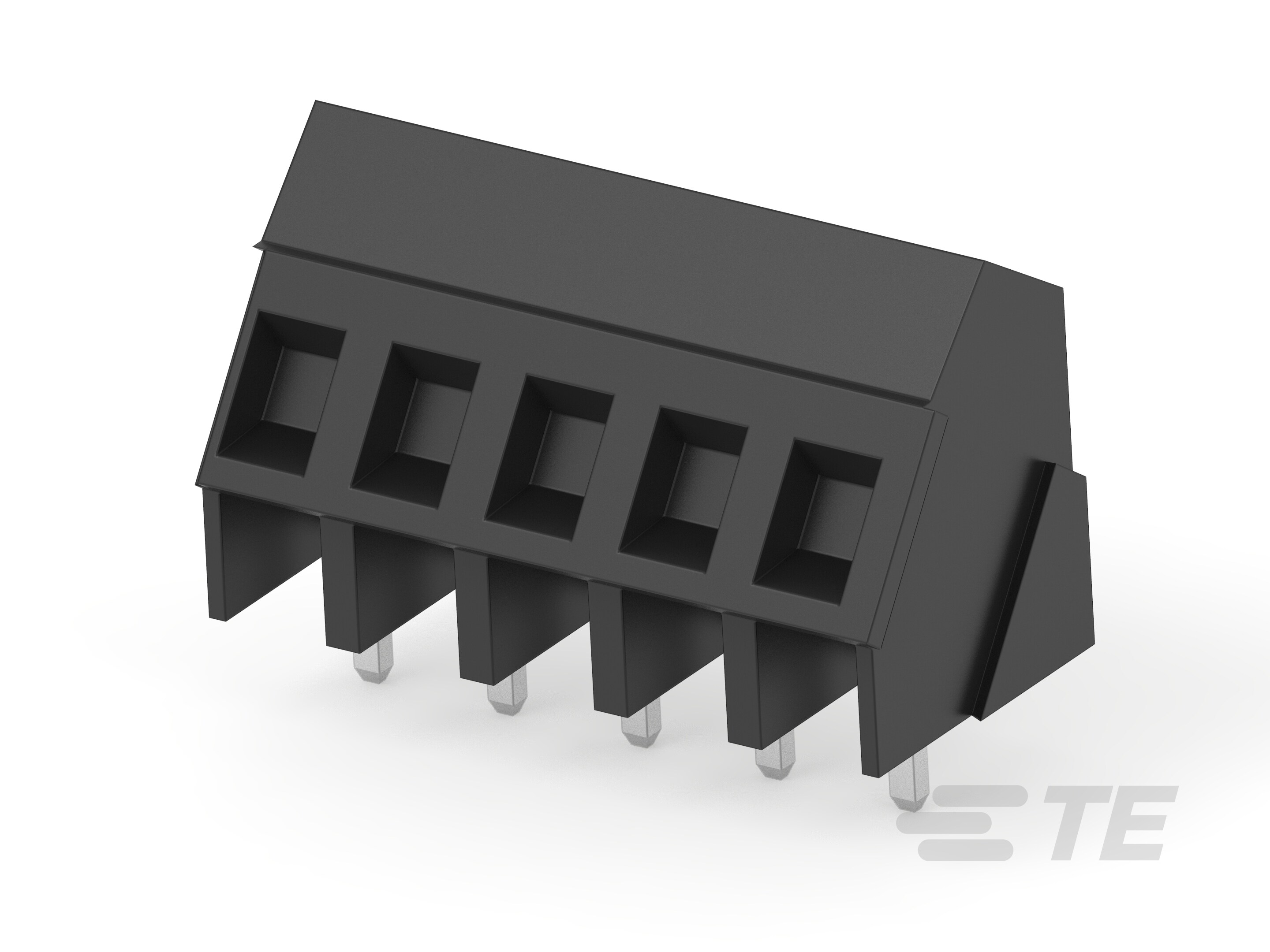

TERM BLOCK 5POS 35DEG 5.08MM PCB

Part	Screw Material - Plating	Torque - Screw	Torque - Screw	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Clamp Material - Plating	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Voltage	Positions Per Level	Number of Levels	Wire Termination	Color	Current	Pitch	Pitch	Features

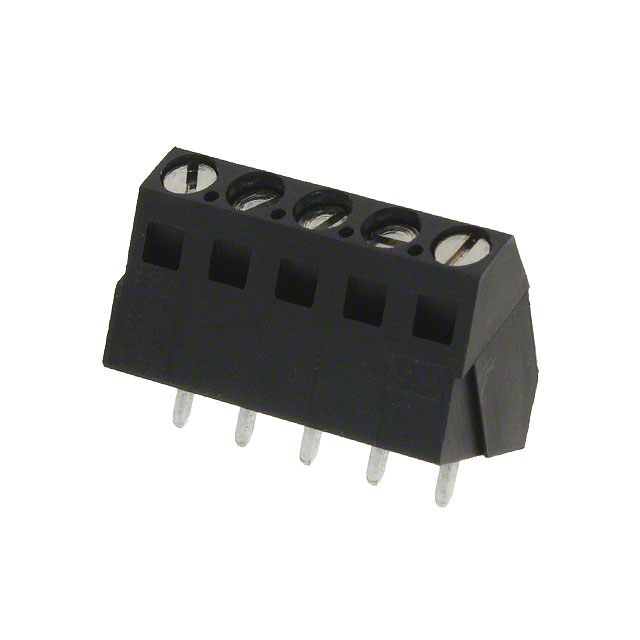

TE Connectivity AMP Connectors 1546074-5	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	5	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)
TE Connectivity AMP Connectors 1-1546074-4	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	14	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)

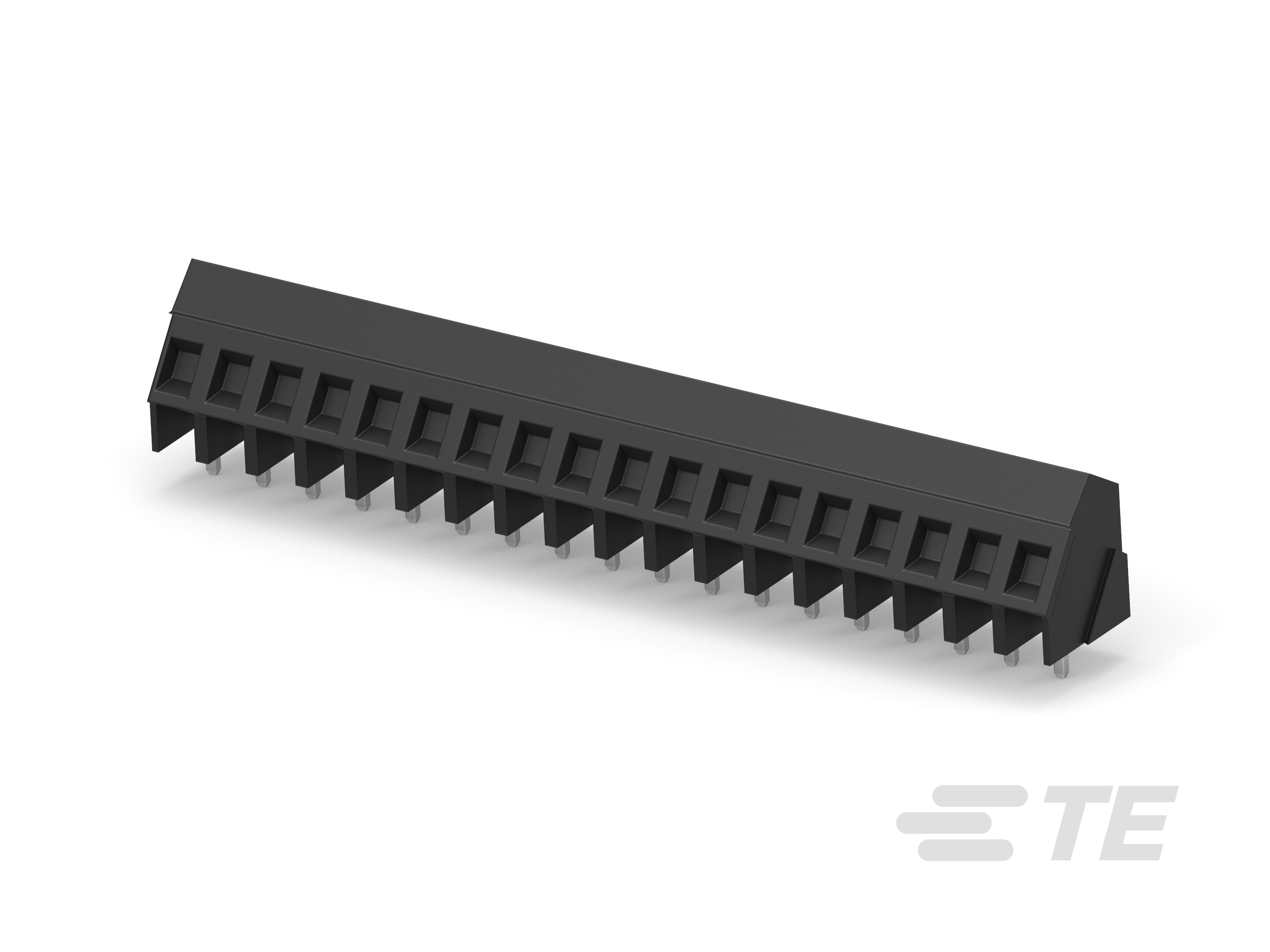

TE Connectivity AMP Connectors 1-1546074-8	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	18	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)
TE Connectivity AMP Connectors 1546074-8	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	8	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)

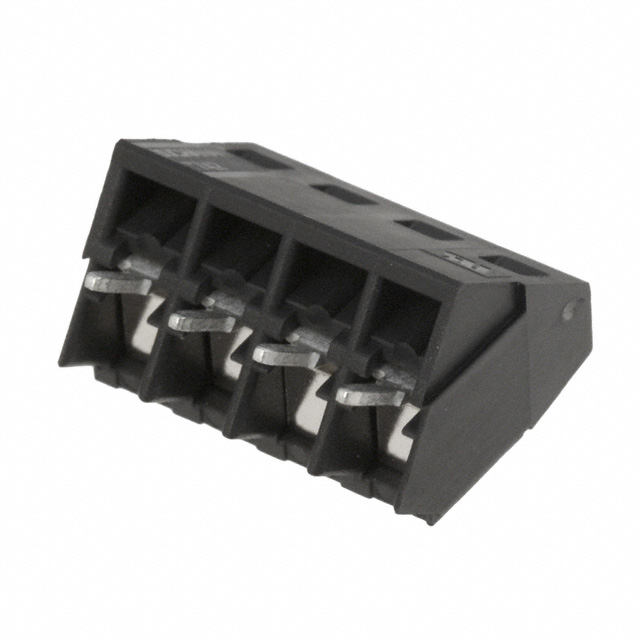

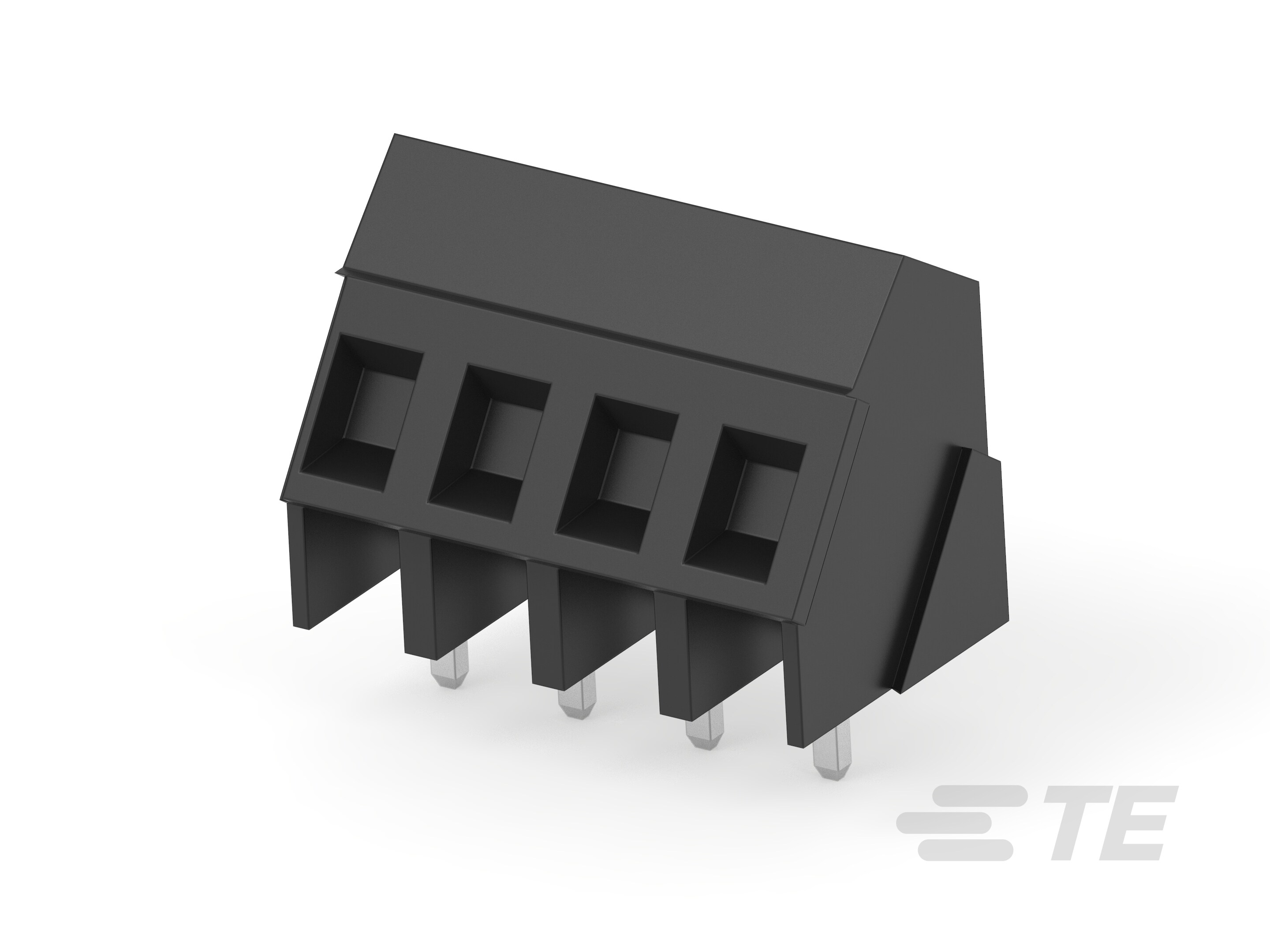

TE Connectivity AMP Connectors 1546074-4	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	4	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)

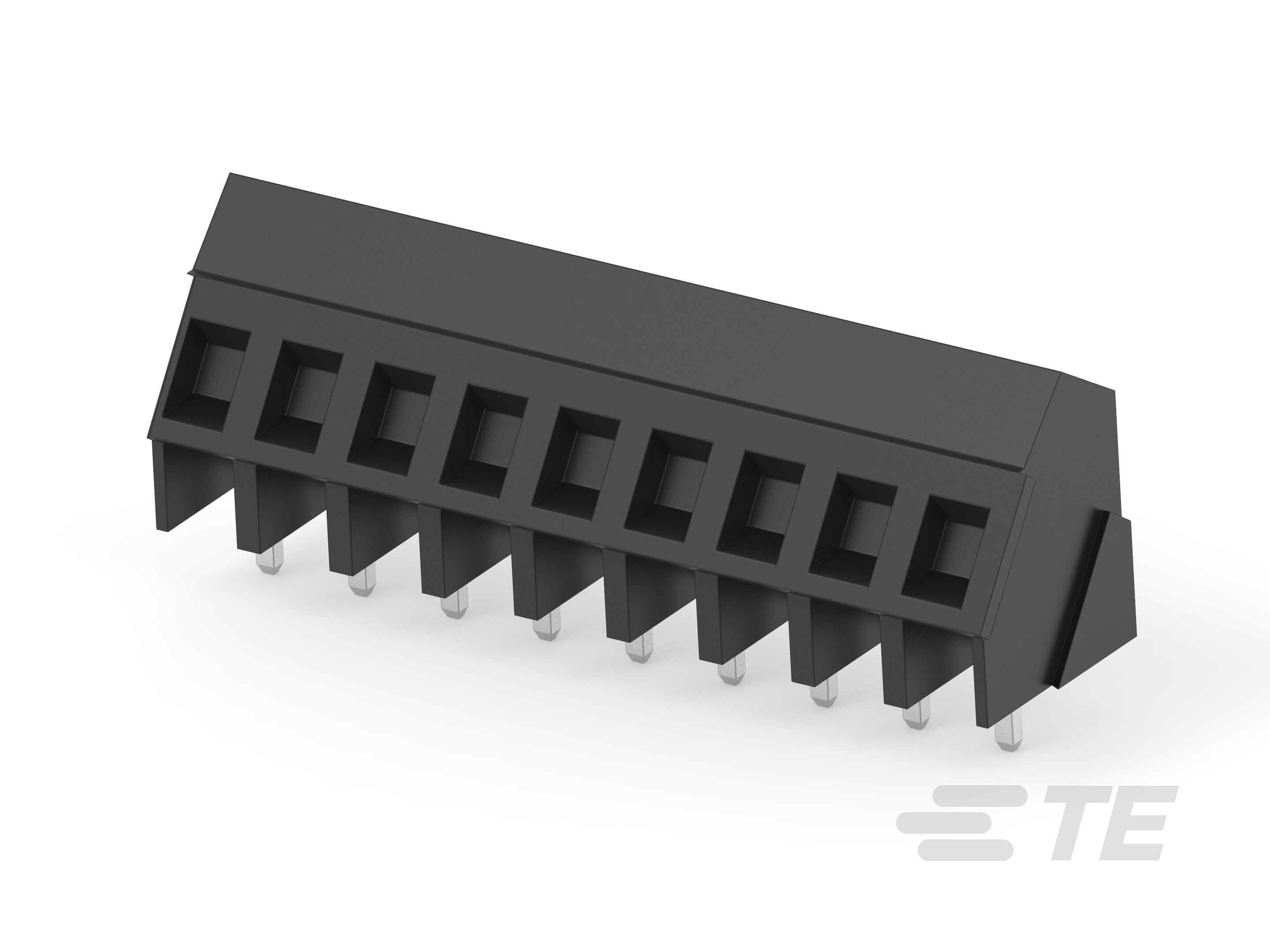

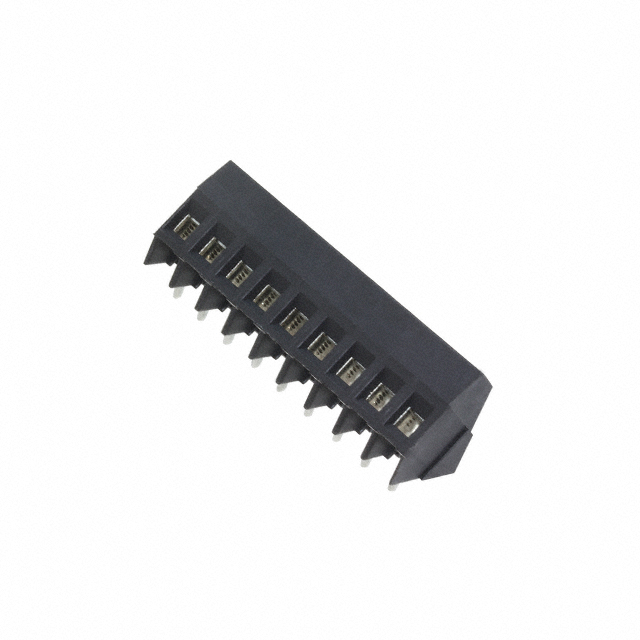

TE Connectivity AMP Connectors 1546074-9	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	9	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)
TE Connectivity AMP Connectors 1-1546074-3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	13	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)

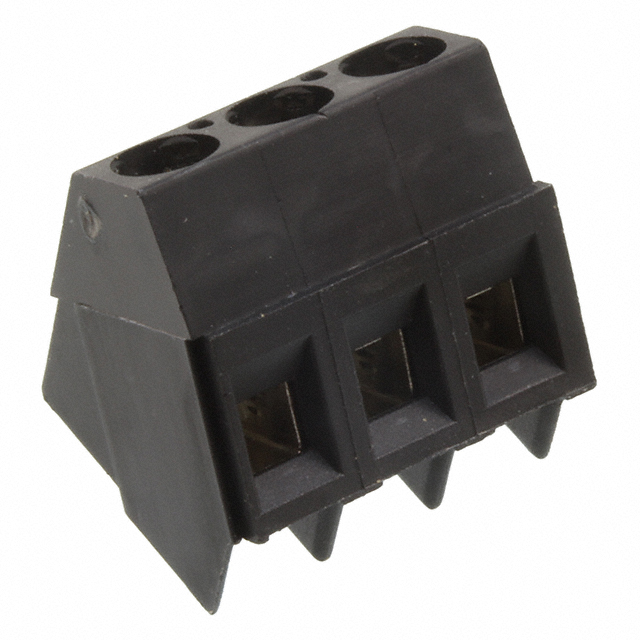

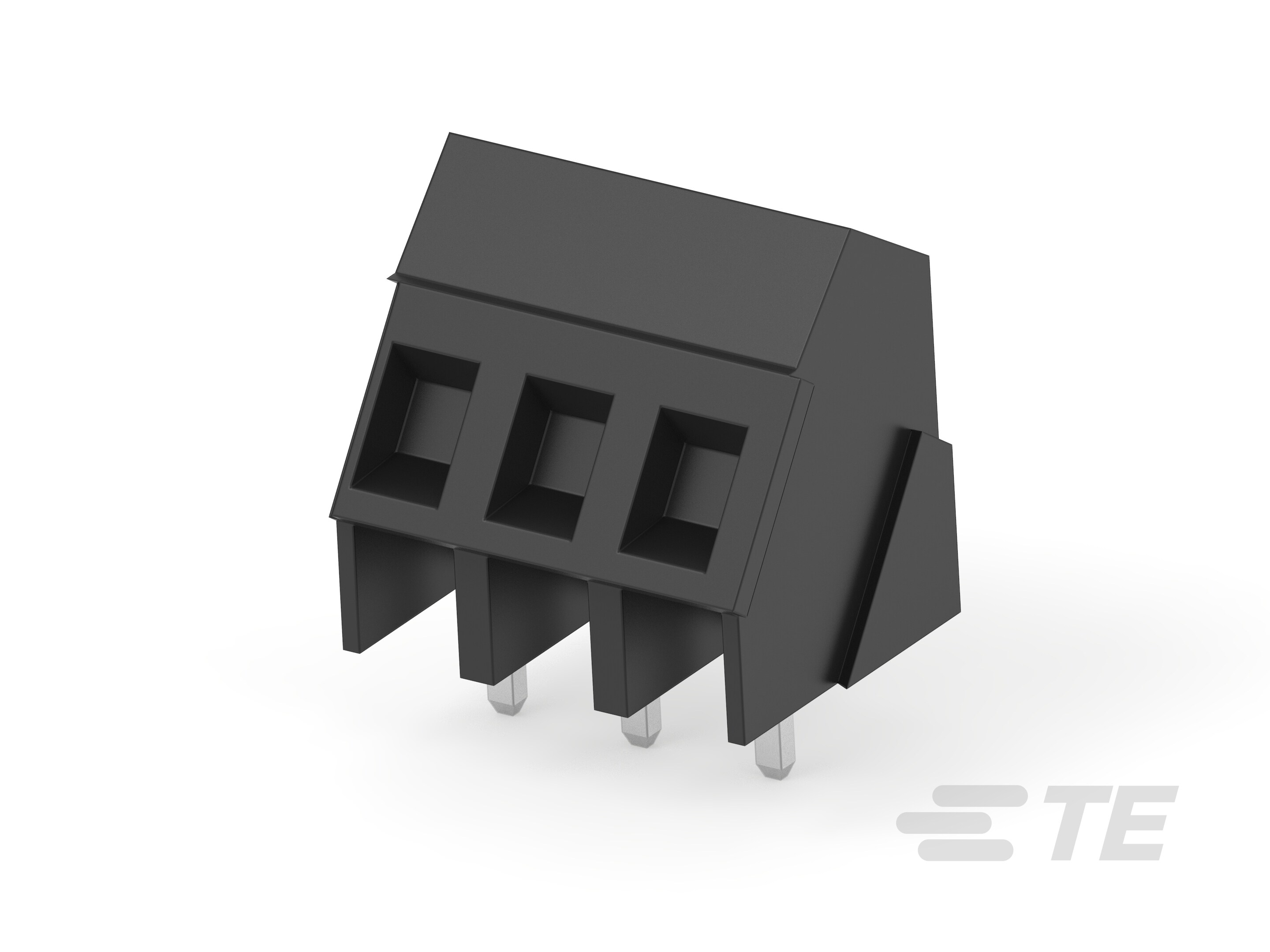

TE Connectivity AMP Connectors 1546074-3	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	3	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)
TE Connectivity AMP Connectors 2-1546074-0	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	-40 C	105 ░C	M3	Brass - Nickel Plated	35° (145°) Angle with Board	30 AWG	12 AWG	Through Hole	300 VDC	20	1	Screw - Rising Cage Clamp	Black	17.5 A	5.08 mm	0.2 in	Interlocking (Side)
