PEC35 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 70POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mounting Type	Connector Type	Contact Type	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Insulation Height	Insulation Height	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Shrouding	Termination	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PEC35DABN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze	0.56 in	14.22 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	2	0.1 in	2.54 mm	70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	5.84 mm	0.23 "

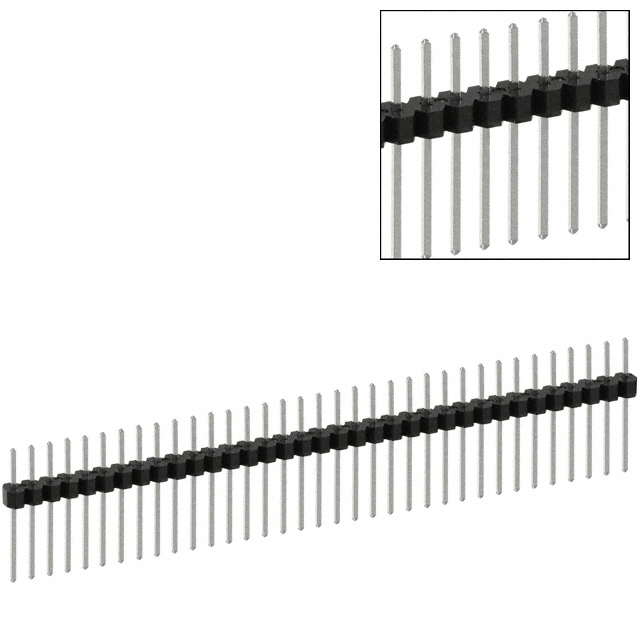

Sullins Connector Solutions PEC35SADN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze					0.23 in	5.84 mm		0.1 in	2.54 mm	35	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	10.67 mm	0.42 in	1	19.05 mm	0.75 in

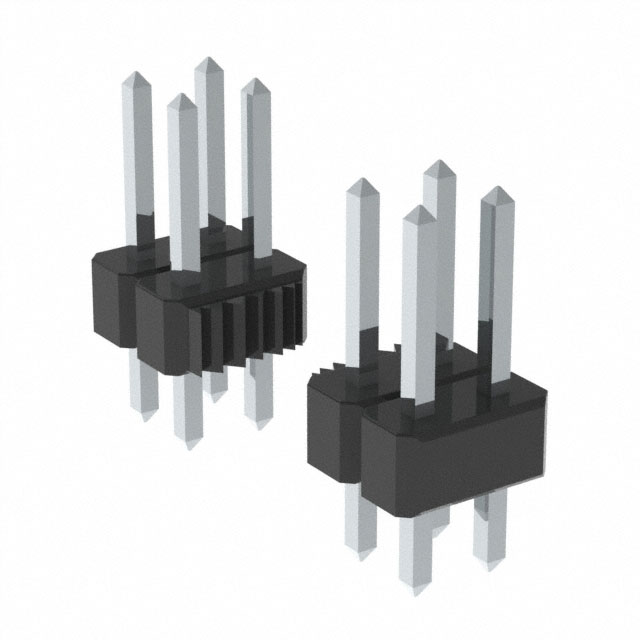

Sullins Connector Solutions PEC35DAAN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze			0.1 in	2.54 mm	0.23 in	5.84 mm	2	0.1 in	2.54 mm	70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	3.05 mm	0.12 in		11.43 mm	0.45 in

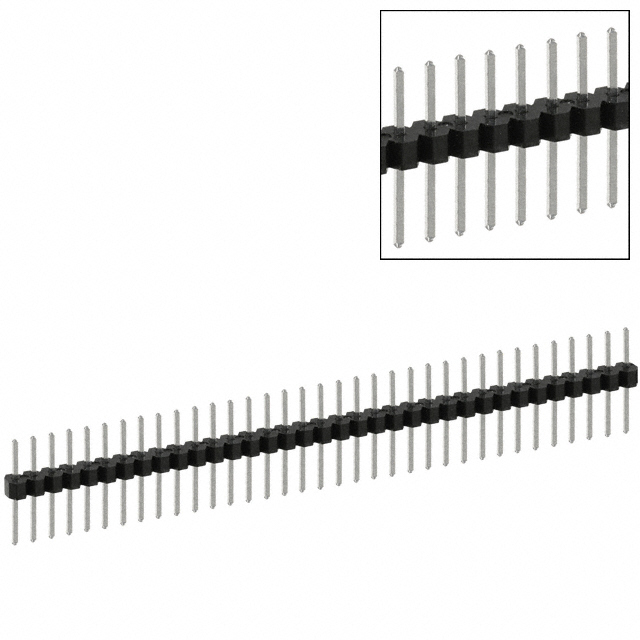

Sullins Connector Solutions PEC35SACN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze	0.65 in	16.51 mm			0.23 in	5.84 mm		0.1 in	2.54 mm	35	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	8.13 mm	0.32 in	1

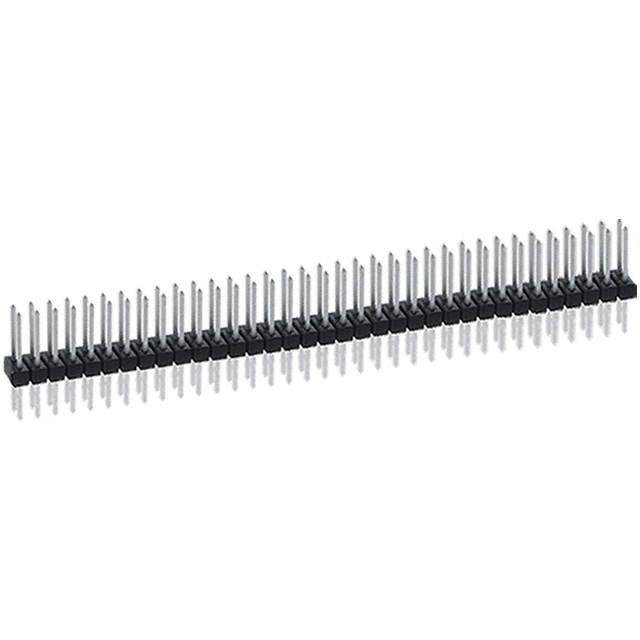

Sullins Connector Solutions PEC35DFBN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze	0.638 in	16.21 mm	0.1 in	2.54 mm	0.318 in	8.08 mm	2	0.1 in	2.54 mm	70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	5.58 mm	0.22 in
Sullins Connector Solutions PEC35DAEN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze	0.85 in	21.59 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	2	0.1 in	2.54 mm	70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	13.21 mm	0.52 in

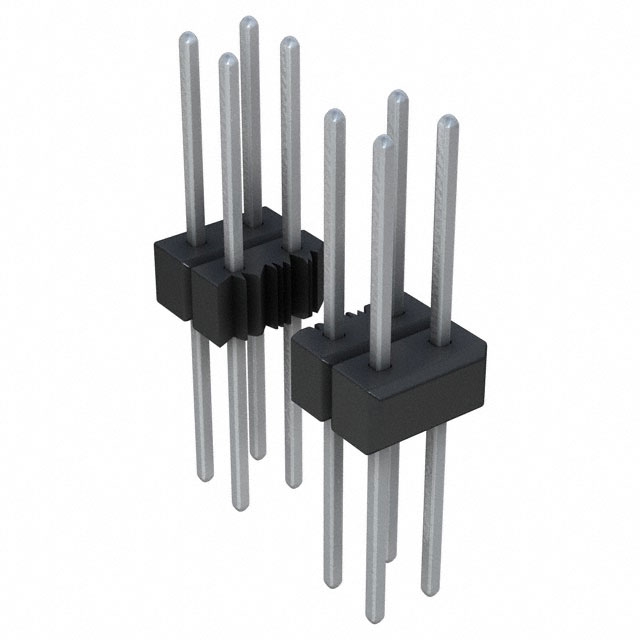

Sullins Connector Solutions PEC35DFCN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze		18.75 mm	0.1 in	2.54 mm	0.318 in	8.08 mm	2	0.1 in	2.54 mm	70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	8.13 mm	0.32 in				0.738 in

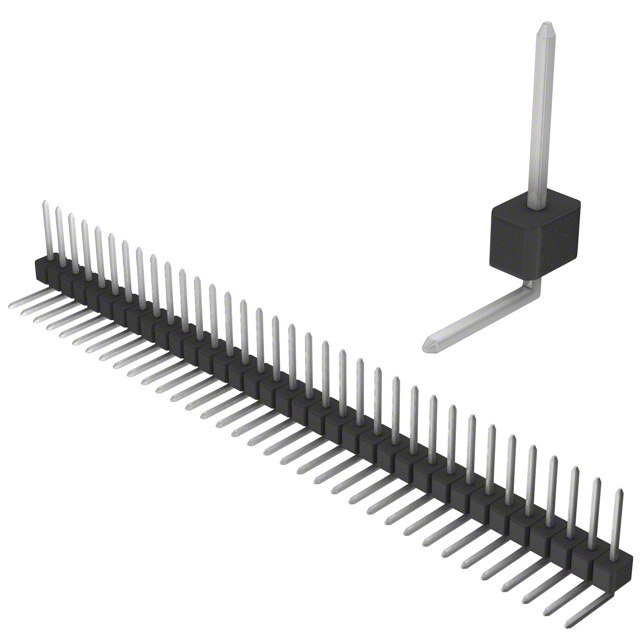

Sullins Connector Solutions PEC35SGBN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Right Angle Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze					0.318 in	8.08 mm		0.14 in	3.56 mm	35	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C			1				5.08 mm	0.2 "
Sullins Connector Solutions PEC35DBEN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Right Angle Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze			0.1 in	2.54 mm	0.23 in	5.84 mm	2			70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	12.7 mm	0.5 "							6.1 mm	0.24 in
Sullins Connector Solutions PEC35DFAN	2.54 µm	100 µin	Square	Board to Board Cable	100 çin	2.54 çm	Black	Through Hole	Header Breakaway	Male Pin	Push-Pull	All	0.1 "	2.54 mm	Phosphor Bronze			0.1 in	2.54 mm	0.318 in	8.08 mm	2	0.1 in	2.54 mm	70	UL94 V-0	3 A	Unshrouded	Solder	Tin	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	3.05 mm	0.12 in		13.67 mm	0.538 in
