SS075 Series

Manufacturer: E-Switch

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Termination Style	Operating Position [x]	Operating Position [x]	Current Rating (Amps)	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life	Operating Force	Voltage Rating - AC	Mounting Type	Release Force	Switch Function	Circuit	Pretravel	Pretravel	Operating Position	Operating Position

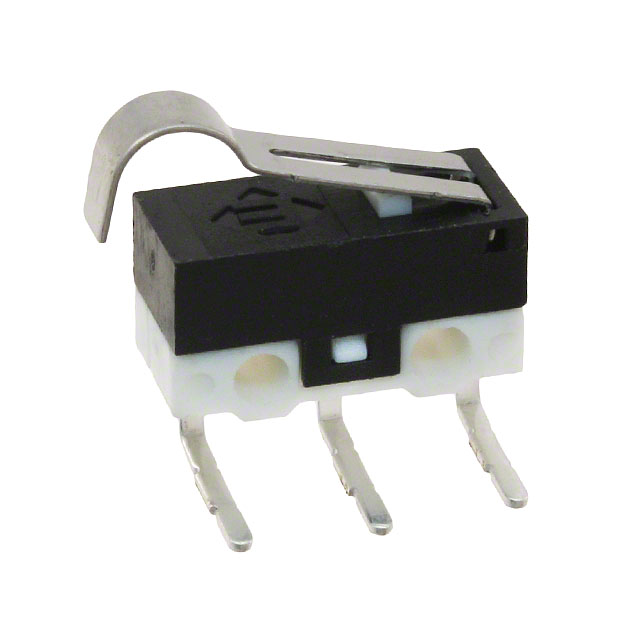

E-Switch SS075Q103F030V2A	PC Pin	0.38 in	9.7 mm	100 mA	1000000 Cycles	-25 °C	75 ░C	Lever Simulated Roller	100000 Cycles	30 gf	125 V	Right Angle Through Hole	10 gf	On-Mom	SPDT	0.053 "	1.35 mm
E-Switch SS075Q102F015P1A	PC Pin			100 mA	1000000 Cycles	-25 °C	75 ░C	Lever Simulated Roller	100000 Cycles	15 gf	125 V	Through Hole		On-Mom	SPDT	0.08 in	2 mm	10.8 mm	0.425 in
E-Switch SS075Q103F050S1A	Solder Lug	0.38 in	9.7 mm	100 mA	1000000 Cycles	-25 °C	75 ░C	Lever Simulated Roller	100000 Cycles	50 gf	125 V	Chassis Mount	15 gf	On-Mom	SPDT	0.053 "	1.35 mm
E-Switch SS075Q102F035V1A	PC Pin			100 mA	1000000 Cycles	-25 °C	75 ░C	Lever Simulated Roller	100000 Cycles	35 gf	125 V	Right Angle Through Hole	10 gf	On-Mom	SPDT	0.08 in	2 mm	10.8 mm	0.425 in
E-Switch SS0750302F015V1A	PC Pin			3 A	1000000 Cycles	-25 °C	75 ░C	Lever Simulated Roller	100000 Cycles	15 gf	125 V	Right Angle Through Hole		On-Mom	SPDT	0.08 in	2 mm	10.8 mm	0.425 in
E-Switch SS075Q101F030P1A	PC Pin			100 mA	1000000 Cycles	-25 °C	75 ░C	Lever Straight	100000 Cycles	30 gf	125 V	Through Hole	10 gf	On-Mom	SPDT	0.063 in	1.6 mm	8.8 mm	0.345 in
