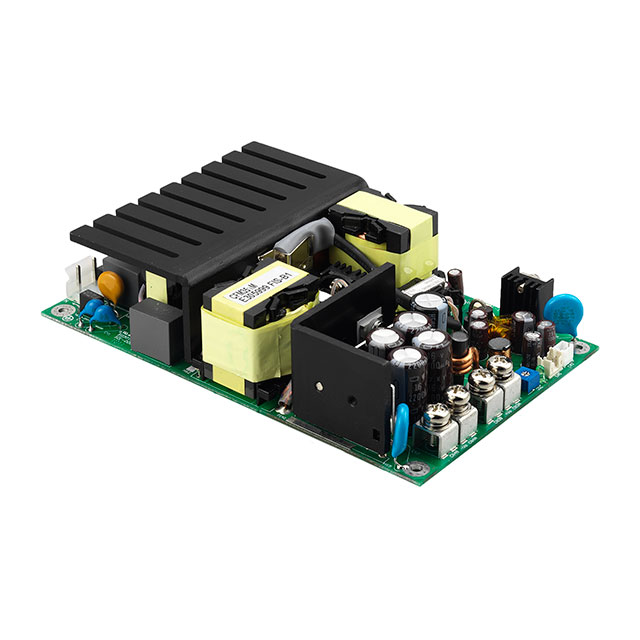

CFM351 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 5V 300W
| Part | Features | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Approval Agency | Voltage - Isolation | Current - Output 1 | Mounting Type | Number of Outputs | Type | Efficiency | Power (Watts) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | 90 VAC | 264 VAC | 6.5 in | 4 " | 1.52 in | 101.6 mm | 165.1 mm | 38.6 mm | -20 °C | 70 °C | 5 V | CE cURus FCC TUV | 5.656 kV | 60 A | Chassis Mount | 1 | Open Frame | 88 % | 300 W | ITE (Commercial) Medical |
Cincon Electronics Co. LTD | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | 90 VAC | 264 VAC | 6.5 in | 4 " | 1.52 in | 101.6 mm | 165.1 mm | 38.6 mm | -20 °C | 70 °C | 12 V | CE cURus FCC TUV | 5.656 kV | 29.2 A | Chassis Mount | 1 | Open Frame | 92 % | 350 W | ITE (Commercial) Medical |
Cincon Electronics Co. LTD | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | 90 VAC | 264 VAC | 6.5 in | 4 " | 1.52 in | 101.6 mm | 165.1 mm | 38.6 mm | -20 °C | 70 °C | 24 V | CE cURus FCC TUV | 5.656 kV | 14.6 A | Chassis Mount | 1 | Open Frame | 93 % | 350 W | ITE (Commercial) Medical |
