FASTIN-FASTON 187 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERMINALS FF 187 REC 0.5 1.5MM2 TPPB LP

Part	Insulation	Gender	Contact Finish	Mounting Type	Termination	Contact Material	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Terminal Type	Tab Width [x]	Tab Width [x]	Wire Gauge [Min]	Wire Gauge [Max]	Tab Length	Tab Length	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Material	Note	Terminal Size	Terminal Size	Stacking Direction	Color	For Use With/Related Products	For Use With/Related Products	Style
TE Connectivity AMP Connectors 182485-4	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Phosphor Bronze	0.81 mm	0.032 in	0.6 in	15.24 mm	Standard	0.187 in	4.75 mm	15 AWG	20 AWG	0.26 in	6.6 mm
TE Connectivity AMP Connectors 280919-4
TE Connectivity AMP Connectors 280919-4	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Phosphor Bronze	0.81 mm	0.032 in	0.63 in	16 mm	Standard	0.187 in	4.75 mm	15 AWG	20 AWG	0.252 "	6.4 mm	2.31 mm	0.13 "	0.091 "	3.3 mm
TE Connectivity AMP Connectors 281197-6	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Phosphor Bronze	0.81 mm	0.032 in			Standard	0.187 in	4.75 mm	13 AWG	17 AWG
TE Connectivity AMP Connectors 150699-2	Non-Insulated	Female	Tin	Free Hanging (In-Line) Right Angle	Crimp	Brass	0.81 mm	0.032 in			Angled - 90° Flag	0.187 in	4.75 mm	16 AWG	20 AWG	0.25 in	6.35 mm	2.79 mm	0.17 "	0.11 in	4.32 mm
TE Connectivity AMP Connectors 62773-2	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Brass	0.51 mm	0.02 in	0.59 in	14.99 mm	Standard	0.187 in	4.75 mm	16 AWG	22 AWG	0.25 in	6.35 mm	2.29 mm	0.13 "	0.09 in	3.3 mm

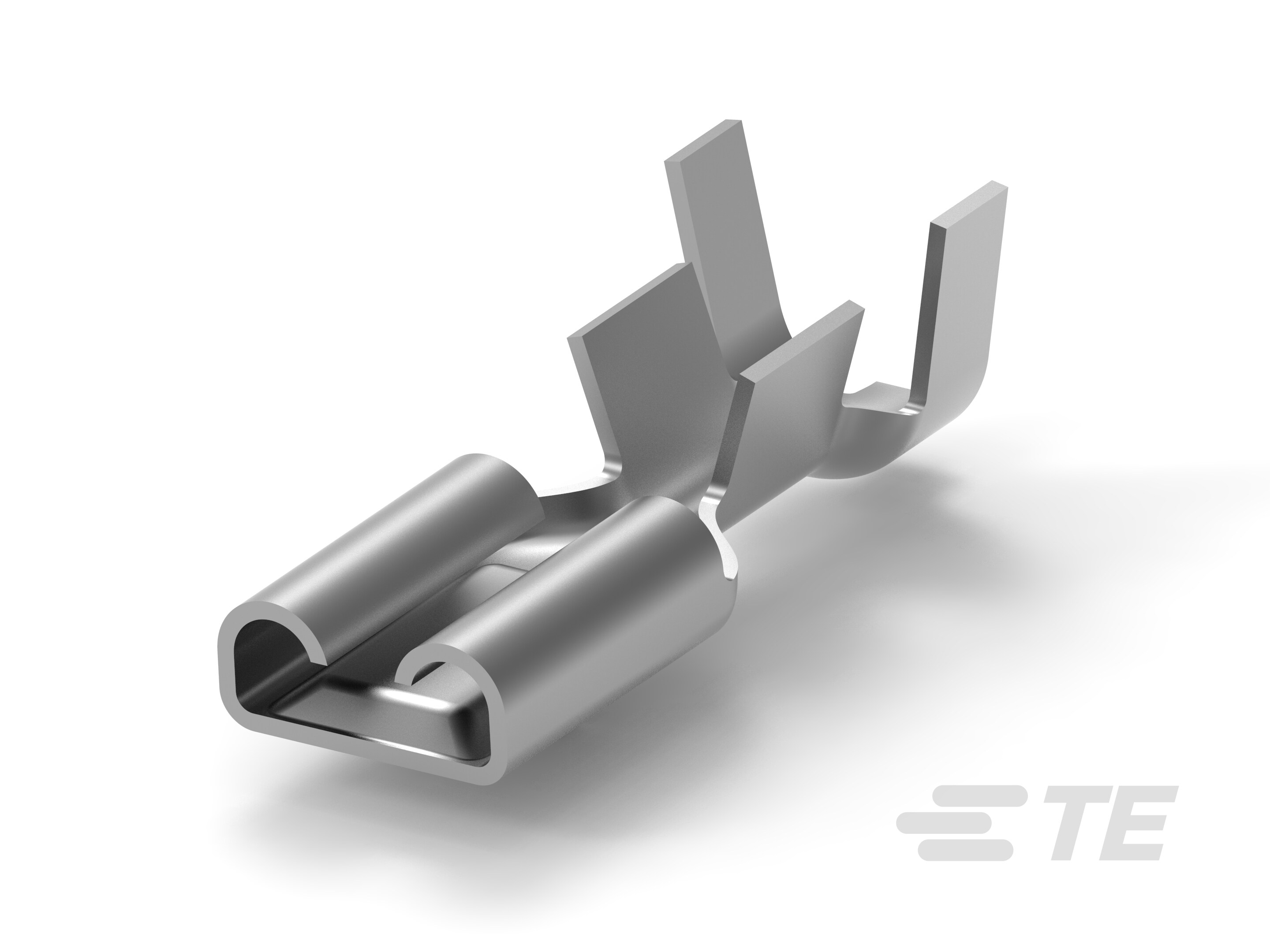

TE Connectivity AMP Connectors 281197-5	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Phosphor Bronze	0.81 mm	0.032 in	0.591 in	15 mm	Standard	0.187 in	4.75 mm	14 AWG	17 AWG	0.25 in	6.35 mm
TE Connectivity AMP Connectors 60435-1	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Brass	0.51 mm	0.02 in	0.75 in	19.05 mm	Standard	0.187 in	4.75 mm	16 AWG	20 AWG

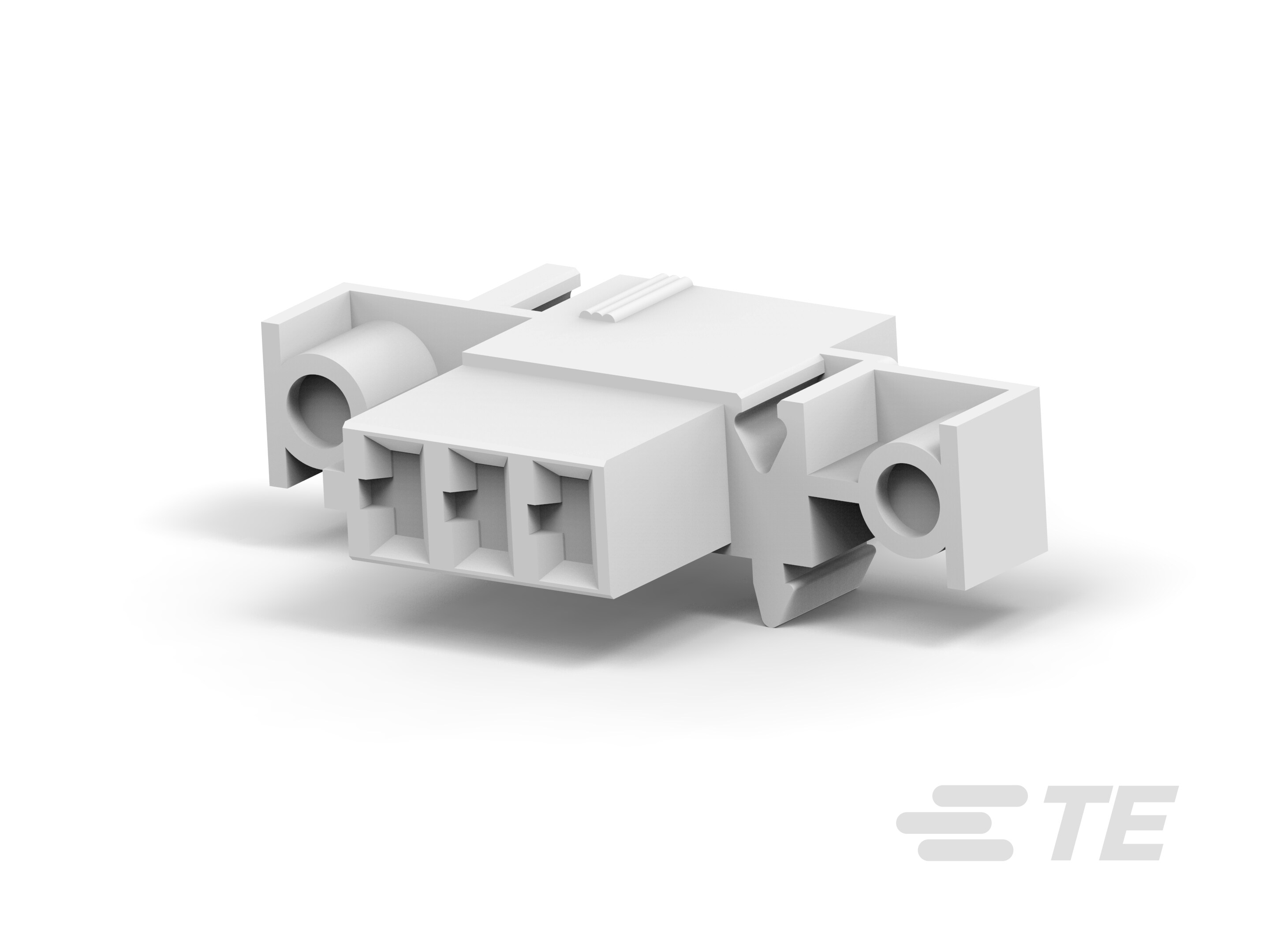

TE Connectivity AMP Connectors 1-480252-0		Female Receptacle		Free Hanging (In-Line)							Quick Connect Disconnect											Nylon	Contacts Not Included	0.187 in	4.75 mm	Side to Side	Natural	0.187 " 4.75 mm	Quick Connects	Housing
TE Connectivity AMP Connectors 182485-4	Non-Insulated	Female	Tin	Free Hanging (In-Line)	Crimp	Phosphor Bronze			0.6 in	15.24 mm	Standard	0.187 in	4.75 mm	15 AWG	20 AWG	0.26 in	6.6 mm
