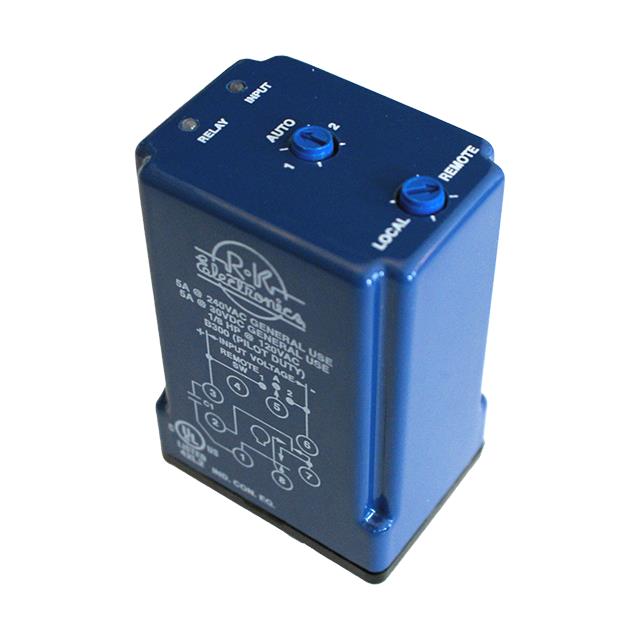

TDR-24 Series
Manufacturer: R-K Electronics, Inc.
Beta
⌘K
RELAY TIME DELAY 24HR 5A 250V
| Part | Voltage Rating | Contact Rating (Current) | Timing Adjustment Method | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Timing Initiate Method | Mounting Type | Pin Count | Termination Style | Circuit | Relay Type | Delay Time (Maximum) | Delay Time (Minimum) | Contact Form | Coil Voltage (Type) | Coil Voltage (Min) | Coil Voltage (Max) | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Release Time | Operate Time | Operating Temperature (Min) | Operating Temperature (Max) | Coil Type | Features | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 8 | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | |||||||||||||
R-K Electronics, Inc. | 5 A | Socketable | 8 | Plug In | General Purpose | 1 C Form SPDT | AC DC | 24 VAC | 240 VAC | 250 VAC | 30 VDC | 5 ms | 5 ms | 0 °C | 65 °C | Non Latching | Lighted Indicator | |||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 8 | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | Repeat Cycle | ||||||||||||
R-K Electronics, Inc. | 5 A | Socketable | 8 | Plug In | General Purpose | 1 C Form SPDT | AC DC | 24 VAC | 240 VAC | 250 VAC | 30 VDC | 5 ms | 5 ms | 0 °C | 65 °C | Non Latching | Lighted Indicator | |||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 11 pins | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | Repeat Cycle | ||||||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 11 pins | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | Off-Delay | ||||||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 11 pins | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | |||||||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | External Resistor | 240 VAC | 24 VAC | Input Voltage | Socketable | 11 pins | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | On-Delay | ||||||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 8 | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | Off-Delay | ||||||||||||
R-K Electronics, Inc. | 250VAC 30VDC | 5 A | Screwdriver Slot | 240 VAC | 24 VAC | Input Voltage | Socketable | 8 | Plug In | DPDT (2 Form C) | Mechanical Relay | 24 Hrs | 0.1 Sec | On-Delay |
