9239 Series
Manufacturer: Belden Inc.
Beta
⌘K

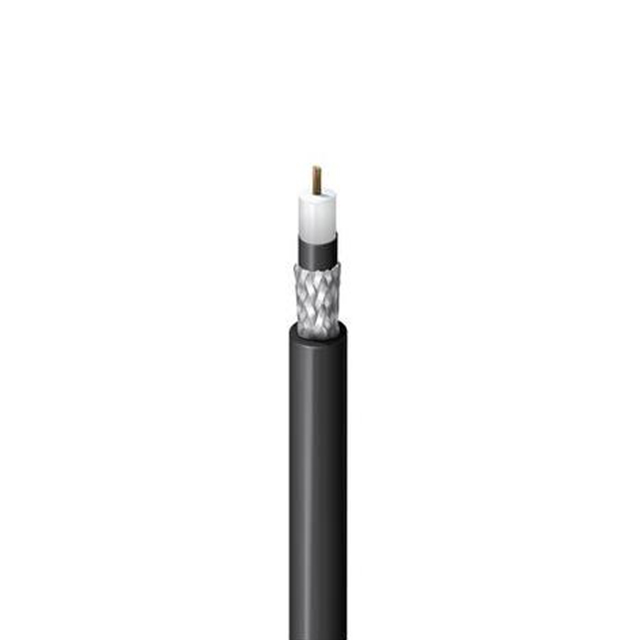

COAXIAL CABLE, RG174, 26 AWG, 50 OHM, 100 FT, 30.48 M
| Part | Conductor Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Cable Type | Cable Group | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket Color | Shield Type | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Coated Steel | 90 % | 60 °C | -40 C | 57 | Poly-Vinyl Chloride (PVC) Polyethylene (PE) | 1.12 mm 1.42 mm | 0.044 in 0.056 in | Copper Tinned | Coaxial | RG-174 | Audio Instrumentation | 0.101 in | 2.57 mm | 26 AWG | Black | Braid | Poly-Vinyl Chloride (PVC) | 100 ' | 30.48 m | 7 | 34 AWG |
