0855-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

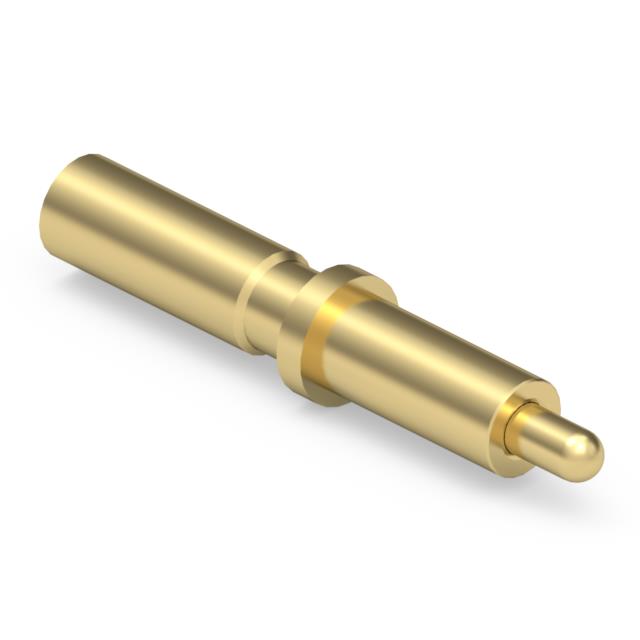

CONTACT SPRING LOADED IN-LINE
| Part | Mounting Type | Minimum Working Height [Min] | Minimum Working Height [Min] | Recommended Working Height [z] | Recommended Working Height [z] | Operating Force - Initial | Features [Min] | Features [Max] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Free Hanging (In-Line) | 6.32 mm | 0.249 in | 7.47 mm | 0.294 in | 25 gf | 16 AWG | 20 AWG | Sleeve & Plunger (Pogo Pins) | -55 °C | 125 °C | 120 gf | 1.27 mm | 0.05 in | 9.6 A | 0.51 µm | 20 µin | 1000000 | 3.18 mm | 0.125 in | Brass Alloy | Gold |
