XM3B Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Material Flammability Rating | Number of Positions | Number of Rows [custom] | Connector Type | Mounting Type | Contact Type | Connector Style | Current Rating (Amps) | Shell Material, Finish | Features | Contact Finish Thickness | Shell Size, Connector Layout | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

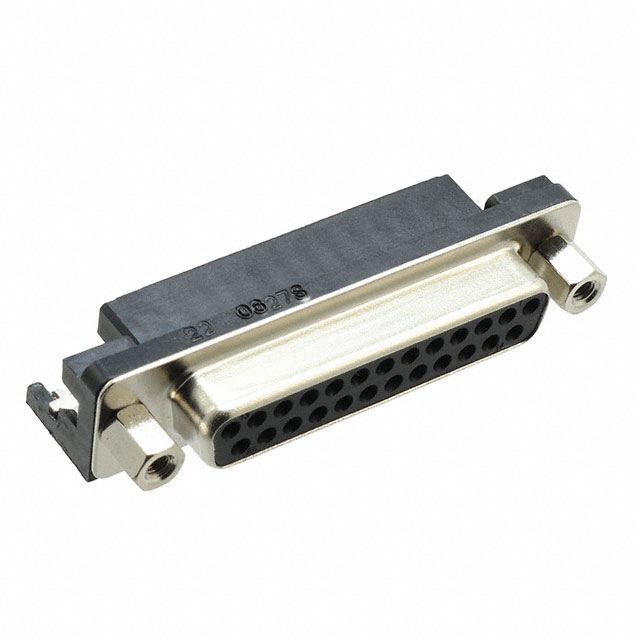

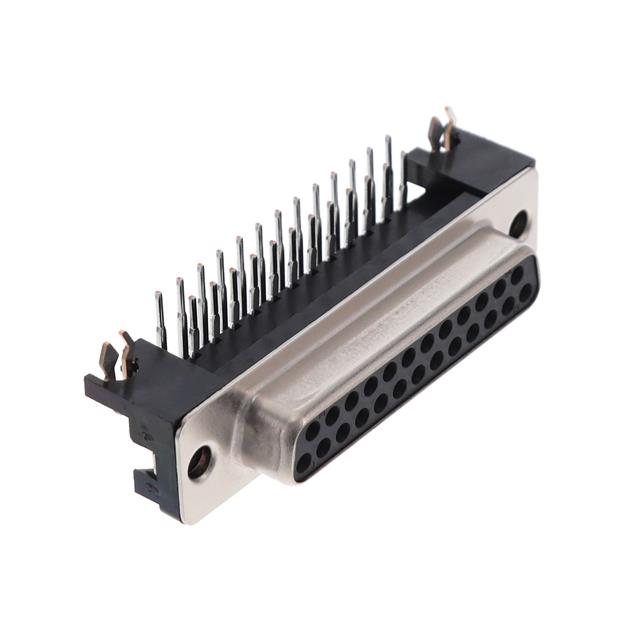

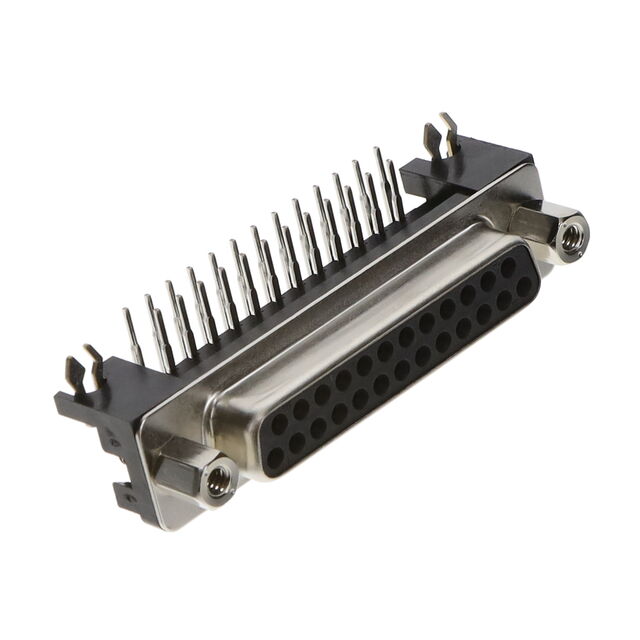

 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | B DB | 3 | Solder | UL94 V-0 | 25 | 2 | Receptacle Female Sockets | Right Angle Through Hole | Signal | D-Sub | 5 A | Nickel Plated Steel | Shielded | ||||||||
Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Solder | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 5 A | Nickel Plated Steel | Board Lock Shielded | Flash | 2 | Gold | |||||||

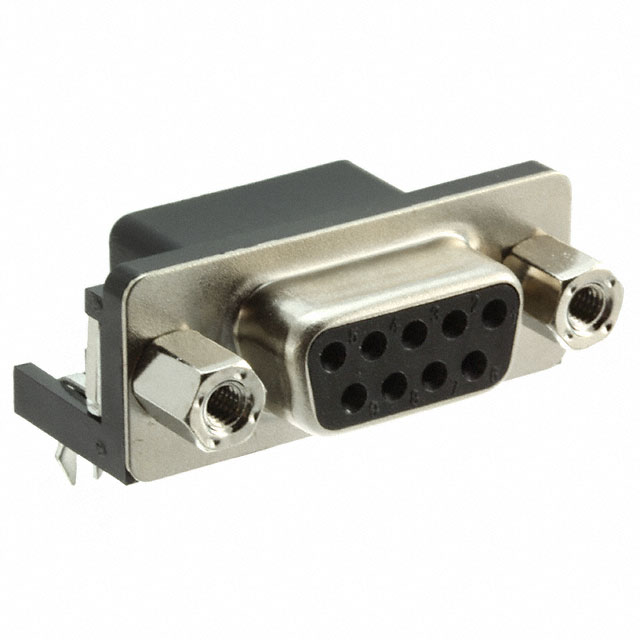

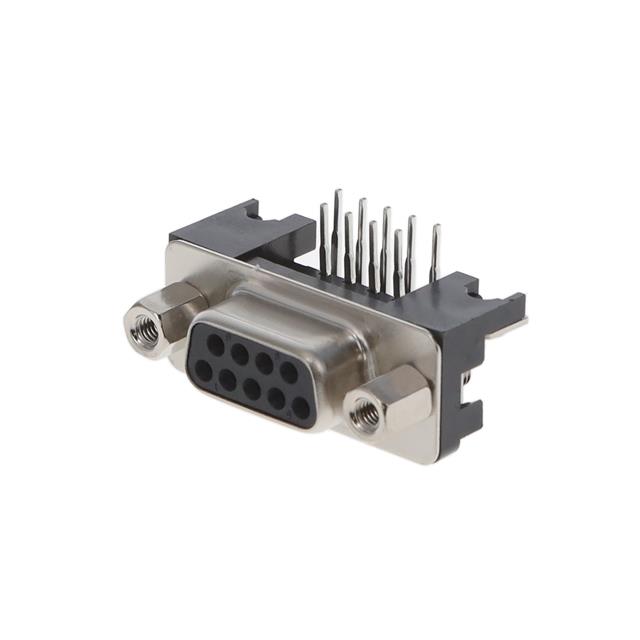

 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -25 °C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Solder | UL94 V-0 | 9 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 3 A | Nickel Plated Steel | Board Lock Shielded | Flash | Gold | 1 | DE E | ||||||
 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -25 °C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Solder | UL94 V-0 | 9 | 2 | Receptacle Female Sockets | Signal | D-Sub | 3 A | Nickel Plated Steel | Shielded | 1 | DE E | |||||||||
 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | B DB | 3 | Solder | UL94 V-0 | 25 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 5 A | Nickel Plated Steel | Board Lock Shielded | Gold | Housing/Shell (Unthreaded) | 16 µin | 0.41 µm | ||||

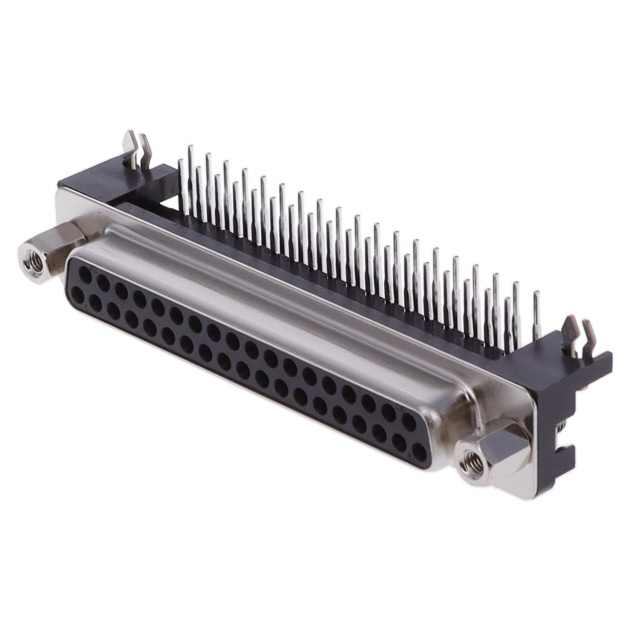

 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | DC C | Solder | UL94 V-0 | 37 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 5 A | Nickel Plated Steel | Board Lock Shielded | 4 | Gold | 16 µin | 0.41 µm | |||||
 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | B DB | 3 | Solder | UL94 V-0 | 25 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 5 A | Nickel Plated Steel | Board Lock Shielded | Gold | 16 µin | 0.41 µm | |||||
 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | B DB | 3 | Solder | UL94 V-0 | 25 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 5 A | Nickel Plated Steel | Board Lock Shielded | Gold | 4-40 Mating Side Female Screwlock | 16 µin | 0.41 µm | ||||
 Omron Electronics Inc-EMC Div | Black | Phosphor Bronze | 300 VDC | -25 °C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Solder | UL94 V-0 | 9 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal | D-Sub | 3 A | Nickel Plated Steel | Board Lock Shielded | Gold | 1 | DE E | Female Screwlock Mating Side | 16 µin | 0.41 µm |
