895-078 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Card Type	Termination	Contact Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Read Out	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Rows [custom]	Gender	Mounting Type	Contact Material	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-078-523-503	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 895-078-540-204	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Wire Wrap	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 895-078-520-504	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78		0.156 "	3.96 mm
EDAC Inc. 895-078-558-207	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Right Angle Through Hole	Copper Alloy	78	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 895-078-559-503	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Right Angle Through Hole	Copper Alloy	78	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 895-078-558-807	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Right Angle Through Hole	Copper Alloy	78	M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-078-541-512	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Wire Wrap	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78	Side Mount Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 895-078-525-512	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78	Side Mount Opening Unthreaded	0.128 "	3.25 mm

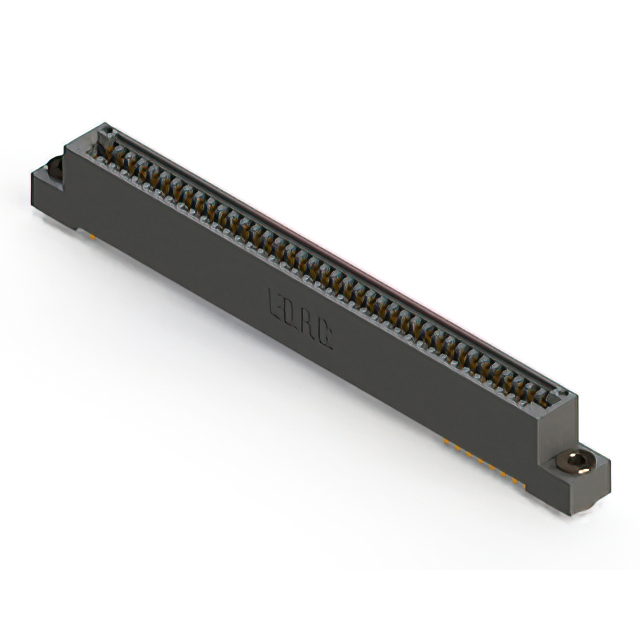

EDAC Inc. 895-078-520-203	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78	Floating Bobbin Flush Mount	0.116 "	2.95 mm

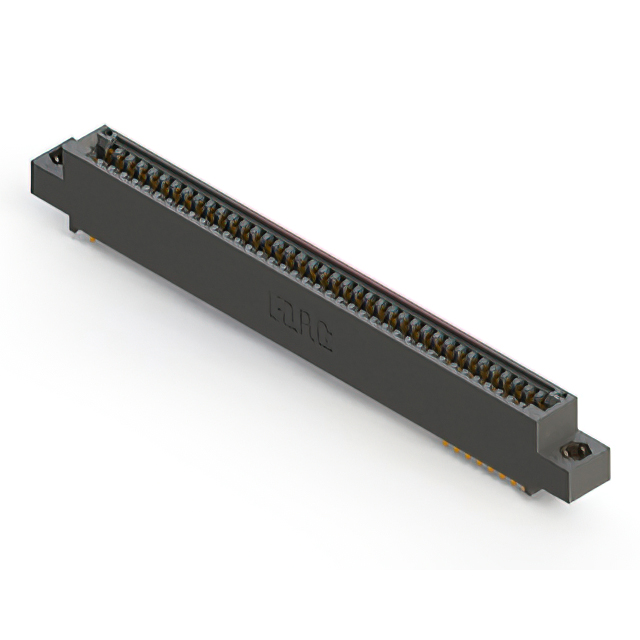

EDAC Inc. 895-078-521-507	Polyphenylene Sulfide (PPS)	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Black	125 °C	-40 C	0.1 "	2.54 mm	Dual	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	39	2	Female	Through Hole	Copper Alloy	78	M3 Threaded Insert Top Mount Opening
