177-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

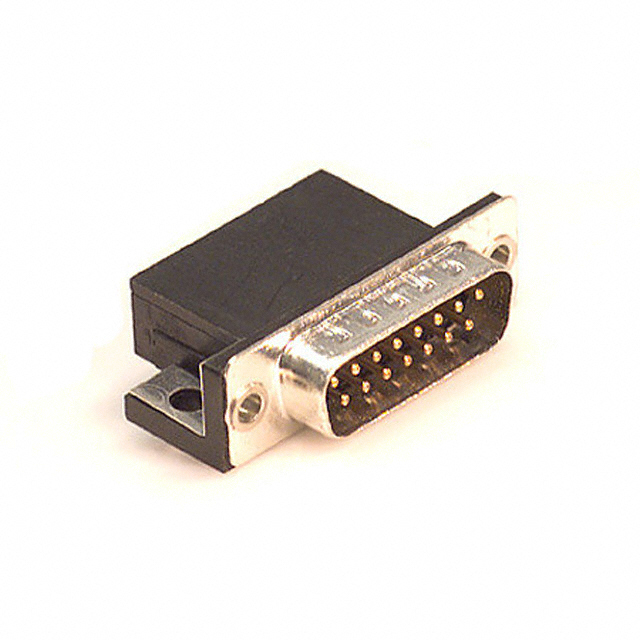

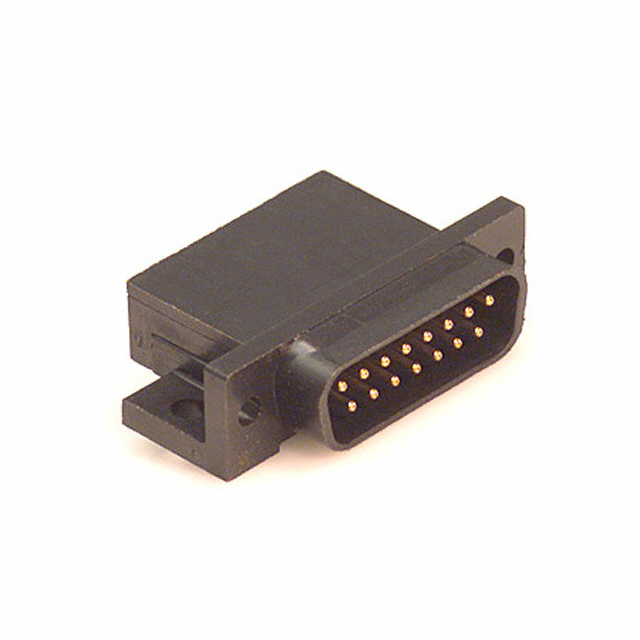

CONN D-SUB PLUG 15POS R/A SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Contact Type | Mounting Type | Number of Positions | Features | Connector Style | Flange Feature | Contact Finish Thickness | Material Flammability Rating | Backset Spacing | Backset Spacing | Number of Rows [custom] | Current Rating (Amps) | Shell Size, Connector Layout | Shell Material, Finish | Connector Type | Termination | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 105 ░C | Polyester Glass Filled | Phosphor Bronze | Black | Signal | Panel Mount Right Angle Through Hole | 15 | Board Lock Ground Strap Grounding Indents | D-Sub | 4-40 Mating Side Female Screwlock | Flash | UL94 V-0 | 0.59 in | 14.99 mm | 2 | 5 A | 2 | Metal Tin Plated | Plug Male Pins | Solder | Gold | |
 NorComp Inc. | -55 C | 105 ░C | Polyester Glass Filled | Phosphor Bronze | Black | Signal | Panel Mount Right Angle Through Hole | 15 | Ground Strap Grounding Indents | D-Sub | Housing/Shell (Unthreaded) | Flash | UL94 V-0 | 0.59 in | 14.99 mm | 2 | 5 A | 2 | Metal Tin Plated | Plug Male Pins | Solder | Gold | |
 NorComp Inc. | -55 C | 105 ░C | Polyester Glass Filled | Phosphor Bronze | Black | Signal | Panel Mount Right Angle Through Hole | 15 | Ground Strap | D-Sub | 4-40 Mating Side Female Screwlock | Flash | UL94 V-0 | 0.59 in | 14.99 mm | 2 | 5 A | 2 | Metal Tin Plated | Receptacle Female Sockets | Solder | Gold | |
 NorComp Inc. | -55 C | 105 ░C | Polyester Glass Filled | Phosphor Bronze | Black | Signal | Panel Mount Right Angle Through Hole | 15 | D-Sub | Housing/Shell (Unthreaded) | Flash | UL94 V-0 | 0.59 in | 14.99 mm | 2 | 5 A | 2 | Plug Male Pins | Solder | Gold | |||
NorComp Inc. | -55 C | 105 ░C | Polyester Glass Filled | Phosphor Bronze | Black | Signal | Panel Mount Right Angle Through Hole | 15 | Board Lock Ground Strap | D-Sub | 4-40 Mating Side Female Screwlock | Flash | UL94 V-0 | 0.59 in | 14.99 mm | 2 | 5 A | 2 | Metal Tin Plated | Receptacle Female Sockets | Solder | Gold | |
NorComp Inc. | -55 C | 105 ░C | Polyester Glass Filled | Phosphor Bronze | Black | Signal | Panel Mount Right Angle Through Hole | 15 | Board Lock Ground Strap | D-Sub | Housing/Shell | Flash | UL94 V-0 | 0.59 in | 14.99 mm | 2 | 5 A | 2 | Metal Tin Plated | Receptacle Female Sockets | Solder | Gold | 4-40 |
