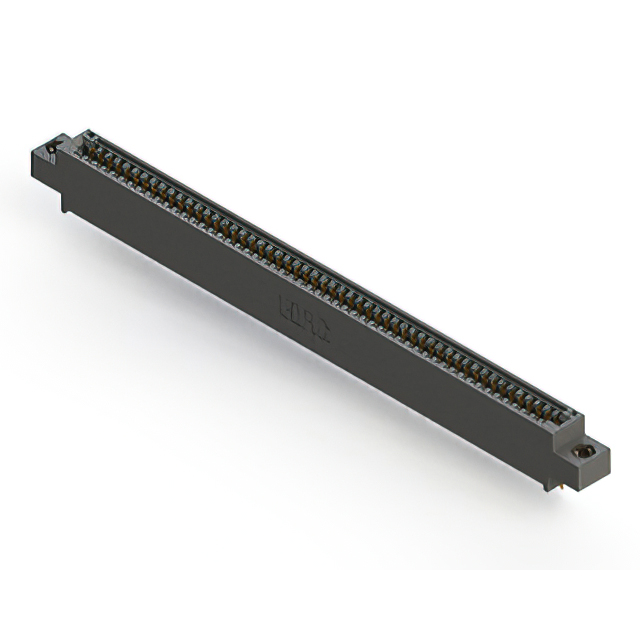

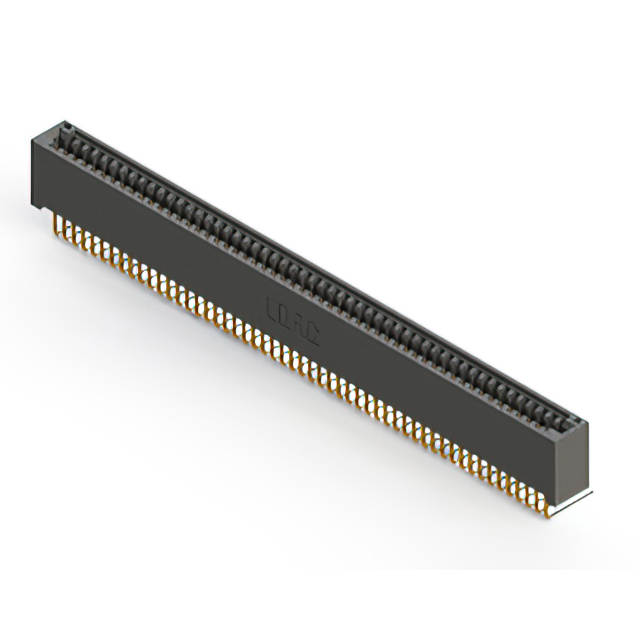

895-053 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 53POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish | Color | Contact Type | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Pitch | Pitch | Mounting Type | Number of Positions | Card Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Single | Wire Wrap | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | Side Mount Opening Unthreaded | 0.25 Ám | 10 Áin | Single | Wire Wrap | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.25 Ám | 10 Áin | Single | Solder | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Solder | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | 0.25 Ám | 10 Áin | Single | Wire Wrap | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Right Angle Through Hole | 53 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.25 Ám | 10 Áin | Single | Solder | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Right Angle Through Hole | 53 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Solder | Copper Alloy | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Wire Wrap | Copper Alloy | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Right Angle Through Hole | 53 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Solder | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | Black | Cantilever | 53 | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Through Hole | 53 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Single | Solder | Copper Alloy |
