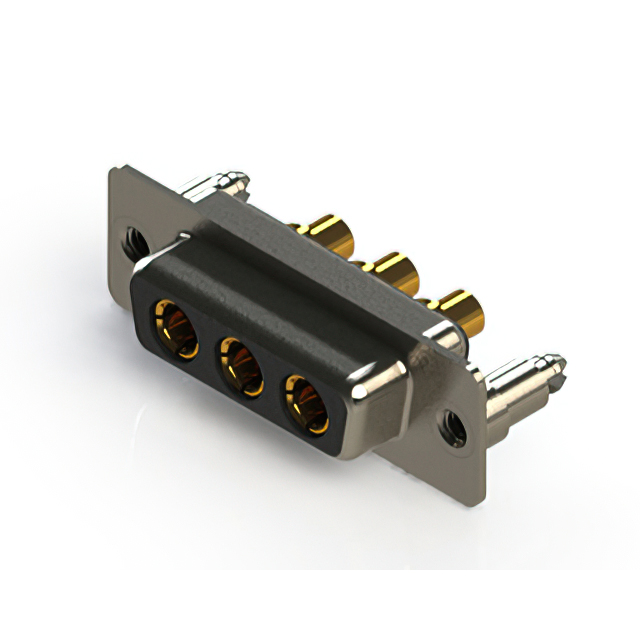

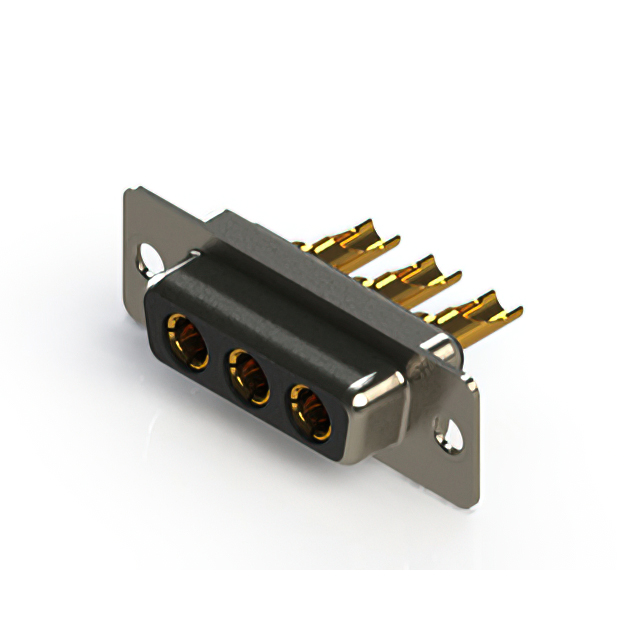

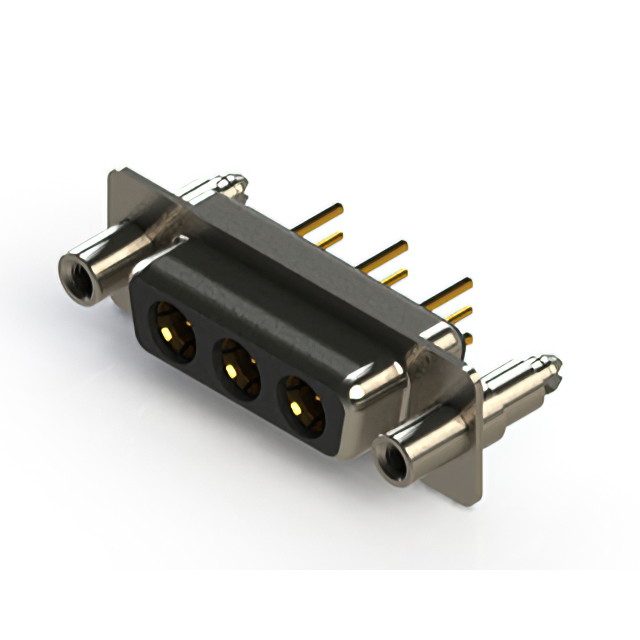

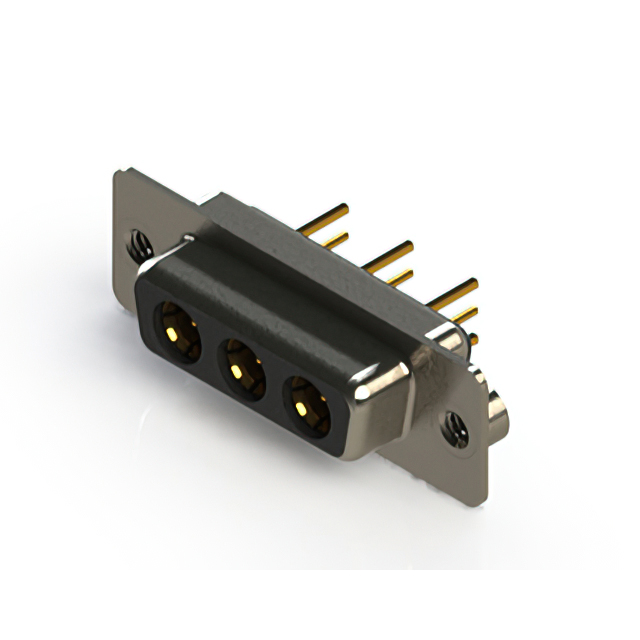

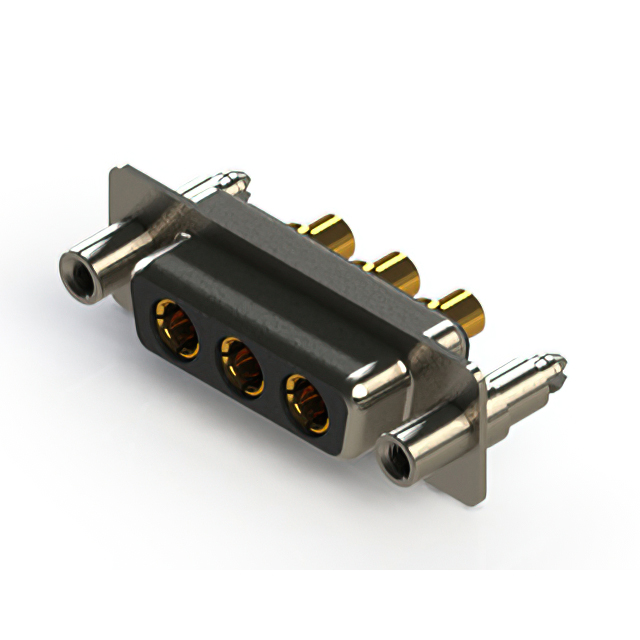

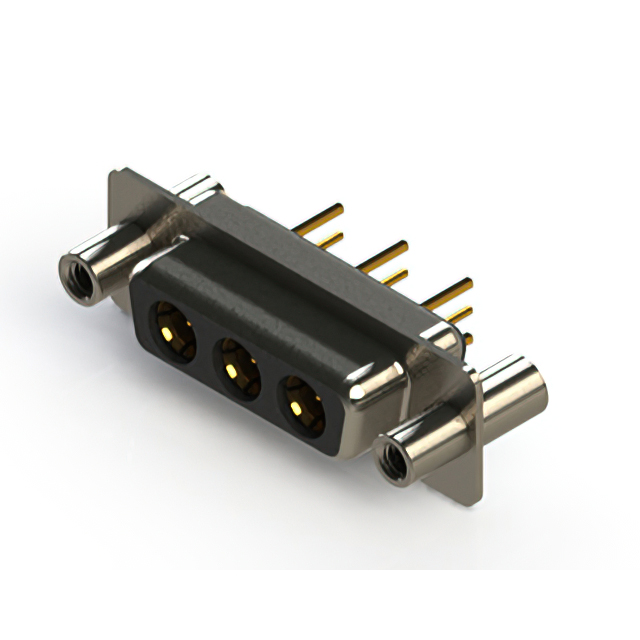

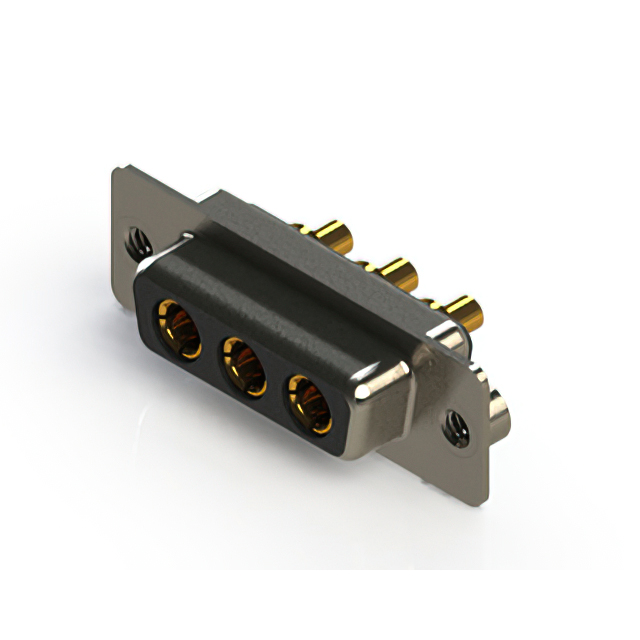

628-3W3 Series
Manufacturer: EDAC Inc.
Catalog
CONN D-SUB RCPT 3POS VERT SLDR
...
| Part | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Connector Type | Contact Finish | Contact Finish Thickness | Termination | Material Flammability Rating | Number of Positions | Mounting Type | Contact Type | Features | Number of Rows | Shell Size, Connector Layout | Flange Feature [custom] | Flange Feature [custom] | Connector Style | Flange Feature | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Flash | Solder | UL94 V-0 | 3 | Through Hole | Coax Signal | Shielded | 1 | 2 (DA A) - 3W3 | 4-40 | 4-40 | Combo D-Sub | |||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Flash | Solder | UL94 V-0 | 3 | Through Hole | Signal and Power | Board Lock Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | M3 | 40 A | |||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Solder | UL94 V-0 | 3 | Through Hole | Signal and Power | Board Lock Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | Board Side (M3) | 40 A | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Solder | UL94 V-0 | 3 | Through Hole | Signal and Power | Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | Board Side (4-40) | 20 A | 30 Áin | 0.76 Ám | Nickel Plated Steel | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Flash | Solder | UL94 V-0 | 3 | Through Hole | Coax Signal | Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | Board Side (M3) | ||||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Solder | UL94 V-0 | 3 | Through Hole | Signal and Power | Board Lock Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | Board Side (4-40) | 40 A | 30 Áin | 0.76 Ám | Nickel Plated Steel | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Flash | Solder | UL94 V-0 | 3 | Through Hole | Coax Signal | Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | Board Side (4-40) | ||||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Flash | Solder | UL94 V-0 | 3 | Through Hole | Coax Signal | Board Lock Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | M3 | Nickel Plated Steel | |||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | UL94 V-0 | 3 | Free Hanging (In-Line) | Signal and Power | Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | Housing/Shell (Unthreaded) | 20 A | 30 Áin | 0.76 Ám | |||||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Receptacle Female Sockets | Gold | Flash | Solder | UL94 V-0 | 3 | Through Hole | Coax Signal | Board Lock Shielded | 1 | 2 (DA A) - 3W3 | Combo D-Sub | 4-40 | Nickel Plated Steel |
