003934 Series

Manufacturer: Molex

Catalog

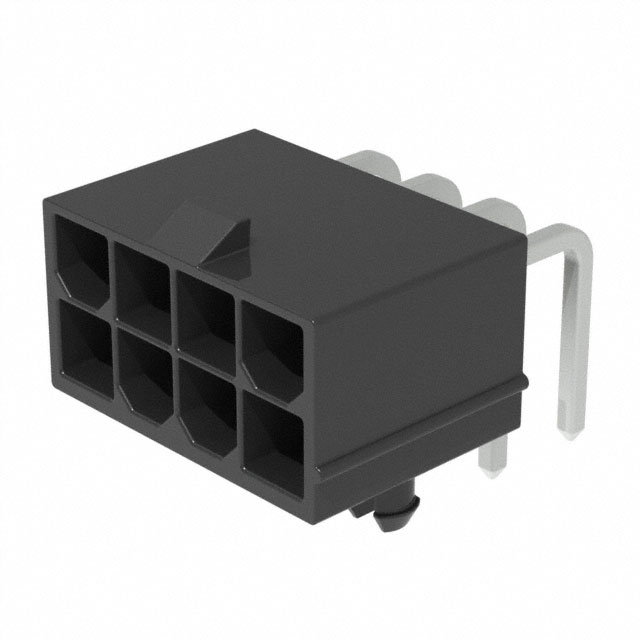

CONN HEADER R/A 8POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Features	Shrouding	Style	Contact Shape	Number of Positions Loaded	Number of Positions	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Material	Connector Type	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Termination	Fastening Type	Material Flammability Rating	Insulation Color	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Rows
Molex 0039349081	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All	8	2	0.165 in	4.2 mm	Brass	Header	Tin	Male Pin	9.6 mm	0.378 in	0.165 in	4.2 mm	Right Angle Through Hole	Solder	Locking Ramp	UL94 V-0	Black	Nylon 6/6 Polyamide (PA66)	0.142 in	3.6 mm	100 çin	2.54 çm
Molex 0039348088	0.9 µm	35 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All	8	2	0.165 in	4.2 mm	Brass	Header	Tin	Male Pin			0.165 in	4.2 mm	Through Hole	Solder	Locking Ramp	UL94 V-2	Natural	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	35.4 µin	0.9 µm	12.8 mm	0.504 "
Molex 0039341121														Header		Male Pin								UL94 V-2									Varies by Wire Gauge	80 °C	-40 C	600 VAC
Molex 0039348048	0.9 µm	35 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All	4	2	0.165 in	4.2 mm	Brass	Header	Tin	Male Pin			0.165 in	4.2 mm	Through Hole	Solder	Locking Ramp	UL94 V-2	Natural	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	35.4 µin	0.9 µm	12.8 mm	0.504 "
Molex 0039348068	0.9 µm	35 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All	6	2	0.165 in	4.2 mm	Brass	Header	Tin	Male Pin			0.165 in	4.2 mm	Through Hole	Solder	Locking Ramp	UL94 V-2	Natural	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	35.4 µin	0.9 µm	12.8 mm	0.504 "
Molex 0039343037	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All			0.165 in	4.2 mm	Brass	Header	Tin	Male Pin					Right Angle Through Hole	Solder	Friction Lock	UL94 V-0	Natural	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	100 çin	2.54 çm	5.4 mm	0.213 "					1
Molex 0039348248	0.9 µm	35 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All	24	2	0.165 in	4.2 mm	Brass	Header	Tin	Male Pin			0.165 in	4.2 mm	Through Hole	Solder	Locking Ramp	UL94 V-2	Natural	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	35.4 µin	0.9 µm	12.8 mm	0.504 "
Molex 0039348028	0.9 µm	35 µin	General Purpose Industrial Telecommunications	Board Lock	Shrouded - 4 Wall	Board to Cable/Wire	Square	All	2	2			Brass	Header	Tin	Male Pin			0.165 in	4.2 mm	Through Hole	Solder	Locking Ramp	UL94 V-2	Natural	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	35.4 µin	0.9 µm	12.8 mm	0.504 "
