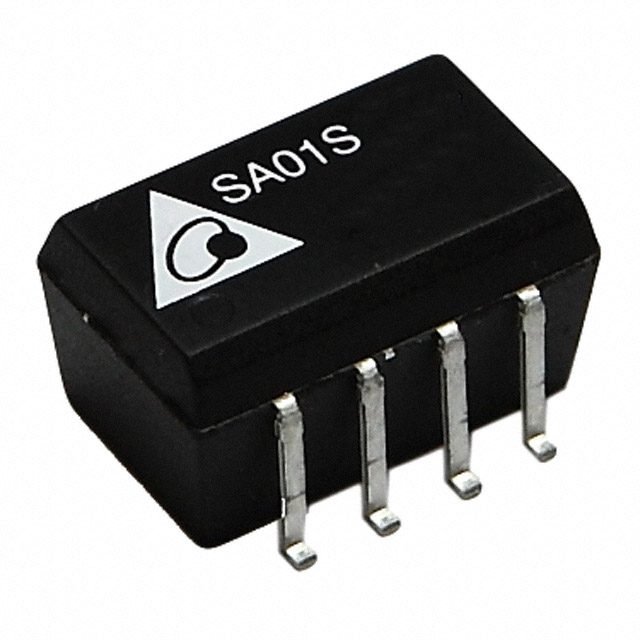

SA01S Series

Catalog

DC DC CONVERTER 12V 1W

Part	Voltage - Output 1	Current - Output (Max) [Max]	Applications	Voltage - Input (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Type	Efficiency	Voltage - Isolation	Number of Outputs	Package / Case	Mounting Type
Delta Electronics SA01S1212A	12 V	84 mA	Medical	13.2 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	10.8 V	Isolated Module	81 %	1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S2415A	15 V	67 mA	Medical	26.4 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	21.6 V	Isolated Module	80 %	1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S2409A	9 V	110 mA	Medical	26.4 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	21.6 V	Isolated Module	77 %	1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S0509A	9 V	110 mA	Medical	5.5 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	4.5 V	Isolated Module	78 %	1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S1209A	9 V	110 mA	Medical	13.2 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	10.8 V	Isolated Module	78 %	1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S1203A	3.3 V	0.3 A	Medical	13.2 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	10.8 V	Isolated Module	75 %	1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S1215A	15 V	67 mA	Medical	13.2 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	10.8 V	Isolated Module		1000 V	1	8-SMD Module	Surface Mount
Delta Electronics SA01S2405A	5 V	200 mA	Medical	26.4 V	SCP	10.7 mm	12.8 mm	0.28 "	0.42 "	7 mm	0.5 "	85 °C	-40 C	21.6 V	Isolated Module	79 %	1000 V	1	8-SMD Module	Surface Mount
