MPQ3369 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

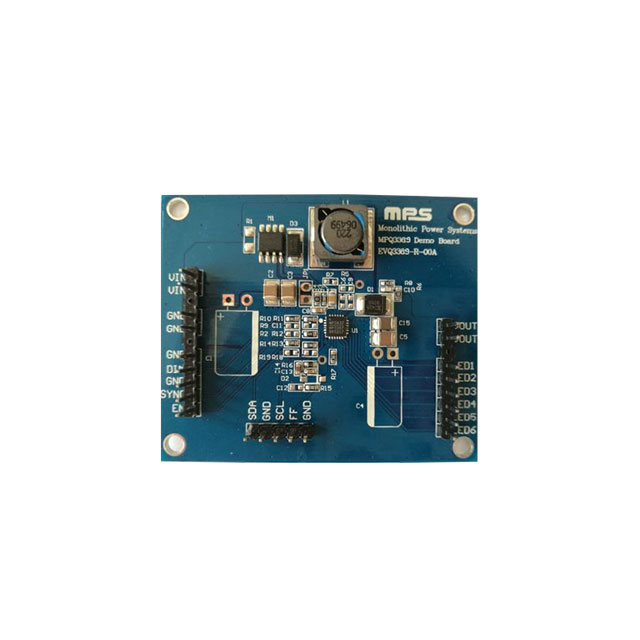

EVALUATION BOARD, MPQ3369GR, ANALOGUE, PWM, BOOST, 6 OUTPUTS, 50 MA O/P, 50 V O/P, 3.5 V TO 36 V
| Part | Supplied Contents | Outputs and Type | Contents | Features | Utilized IC / Part | Current - Output / Channel | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Dimming | Topology | Supplier Device Package | Mounting Type | Voltage - Supply (Min) [Min] | Internal Switch(s) | Type | Number of Outputs | Voltage - Supply (Max) [Max] | Grade | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Frequency | Qualification | Current - Output / Channel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Board(s) | 6 Non-Isolated Outputs | Board(s) | Dimmable | MPQ3369 | 100 mA | 50 V | 3.5 V | 36 V | ||||||||||||||||
 Monolithic Power Systems Inc. | 100 mA | 5 V | Analog PWM | Step-Up (Boost) | 28-TSSOP-EP | Surface Mount | 3.5 V | DC DC Regulator | 6 | 36 V | Automotive | 28-TSSOP (0.173" 4.40mm Width) Exposed Pad | -40 C | 125 °C | 2.2 MHz | AEC-Q100 | |||||||||
 Monolithic Power Systems Inc. | 100 mA | 5 V | Analog PWM | Step-Up (Boost) | 24-QFN (4x4) | Surface Mount | 3.5 V | DC DC Regulator | 6 | 36 V | Automotive | 24-VFQFN Exposed Pad | -40 C | 125 °C | 2.2 MHz | AEC-Q100 | |||||||||
 Monolithic Power Systems Inc. | 100 mA | 5 V | Analog PWM | Step-Up (Boost) | 24-QFN (4x4) | Surface Mount | 3.5 V | DC DC Regulator | 6 | 36 V | Automotive | 24-VFQFN Exposed Pad | -40 C | 125 °C | 2.2 MHz | AEC-Q100 | |||||||||
 Monolithic Power Systems Inc. | 100 mA | 5 V | Analog PWM | Step-Up (Boost) | 28-TSSOP-EP | Surface Mount | 3.5 V | DC DC Regulator | 6 | 36 V | Automotive | 28-TSSOP (0.173" 4.40mm Width) Exposed Pad | -40 C | 125 °C | 2.2 MHz | AEC-Q100 | |||||||||

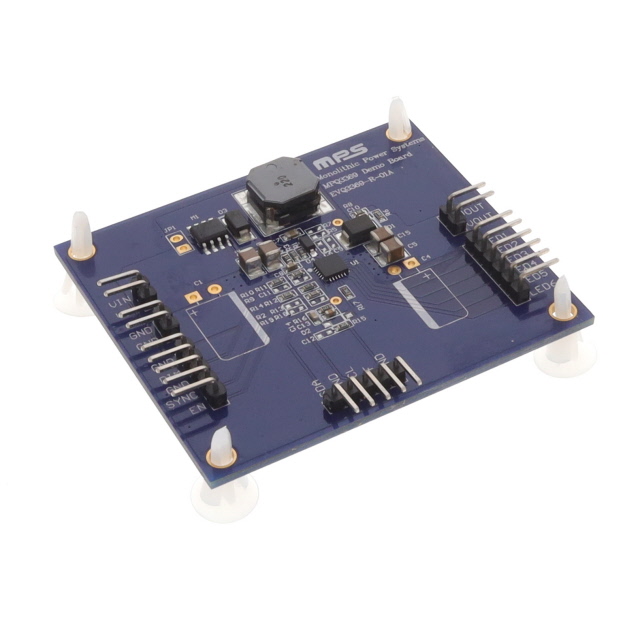

 Monolithic Power Systems Inc. | Board(s) | 6 Non-Isolated Outputs | Board(s) | Dimmable | MPQ3369 | 3.5 V | 36 V | 50 mA |
