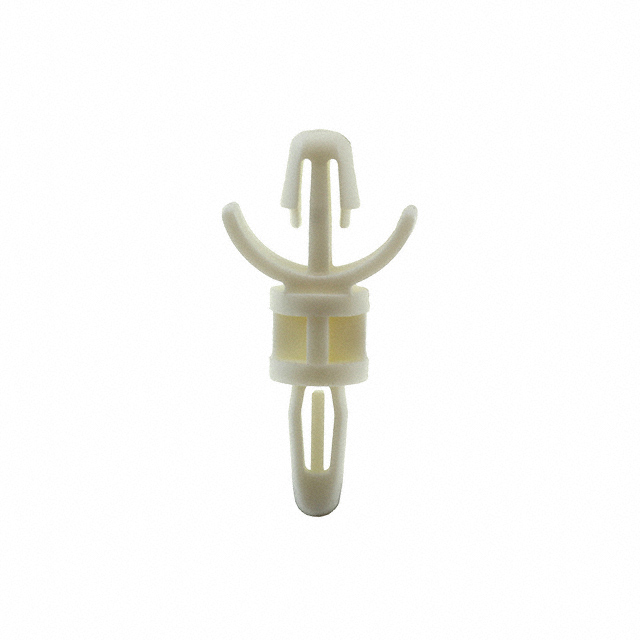

LCBS-2 Series

Catalog

CBS LOCKING FR NYLON 1/2"

Part	Holding Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Material	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Features	Length - Overall [x]	Length - Overall [x]	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall	Length - Overall
Essentra Components LCBS-2-8-19	Arrowhead Snap Lock	3.96 mm	5 32"	0.156 in	1.57 mm	0.062 in	0.0625 in	12.7 mm	0.5 in	0.5 in	Nylon Flame Retardant	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm
Essentra Components LCBS-2-18-19	Arrowhead Snap Lock	3.96 mm	5 32"	0.156 in	1.57 mm	0.062 in	0.0625 in	28.58 mm		1.125 in	Nylon Flame Retardant	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm

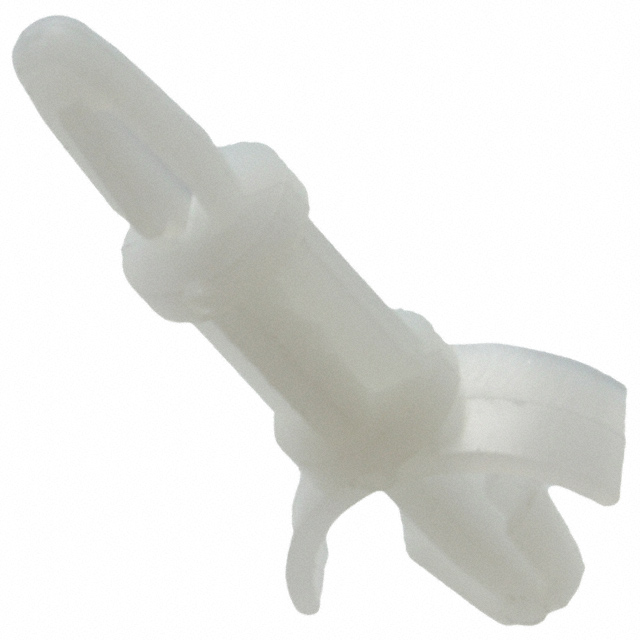

Essentra Components LCBS-2-8-01	Snap Lock				1.57 mm	0.062 in	0.0625 in	12.7 mm	0.5 in	0.5 in	Nylon	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm	Winged	1.303 in	33.1 mm	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-2-14-01	Snap Lock				1.57 mm	0.062 in	0.0625 in	22.23 mm	0.875 in	0.875 in	Nylon	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm	Winged	1.677 in	42.6 mm	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-2-14-19	Arrowhead Snap Lock	3.96 mm	5 32"	0.156 in	1.57 mm	0.062 in	0.0625 in	22.23 mm	0.875 in	0.875 in	Nylon Flame Retardant	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm
Essentra Components LCBS-2-5-01	Snap Lock				1.57 mm	0.062 in	0.0625 in	7.95 mm	0.3125 in	0.313 in	Nylon	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm	Winged			Snap Lock	3.99 mm	0.157 "	28.3 mm	1.114 in
Essentra Components LCBS-2-7-01	Snap Lock				1.57 mm	0.062 in	0.0625 in	11.13 mm	0.4375 "	0.438 in	Nylon	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm	Winged	1.24 in	31.5 mm	Snap Lock	3.99 mm	0.157 "
Essentra Components LCBS-2-4-19	Arrowhead Snap Lock	3.96 mm	5 32"	0.156 in	1.57 mm	0.062 in	0.0625 in	0.25 in		6.35 mm	Nylon Flame Retardant	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm
Essentra Components LCBS-2-5-19	Snap Lock										Nylon	0.078 "	0.031 in	0.79 mm	1.98 mm	0.1875 in	0.187 in	4.75 mm				Snap Lock	3.99 mm	0.157 "

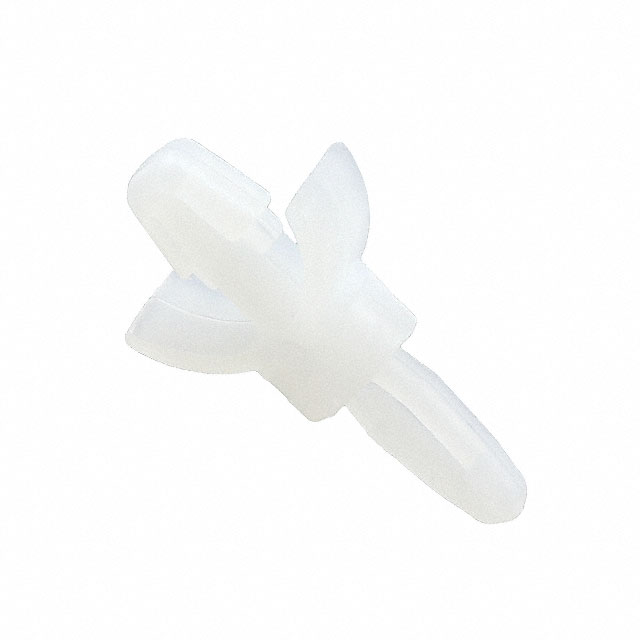

Essentra Components LCBS-2-3-01	Snap Lock				1.57 mm	0.062 in	0.0625 in	0.1875 in		0.188 in	Nylon	0.141 "	0.078 "	1.98 mm	3.58 mm	0.1875 in	0.187 in	4.75 mm	Winged			Snap Lock	3.99 mm	0.157 "
