ASMT-QWBG Series
Manufacturer: Broadcom Limited
Beta
⌘K

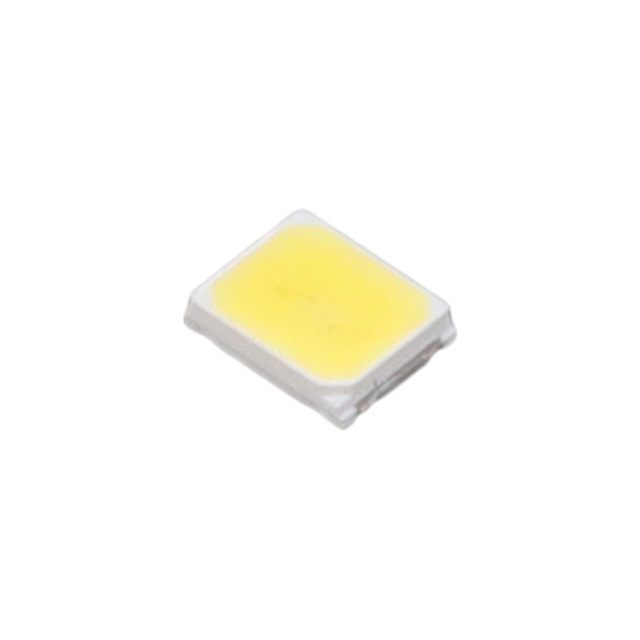

LED ASMT-QWBG COOL WHITE 4PLCC
| Part | Thermal Resistance of Package | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Max [Max] | CRI (Color Rendering Index) | Color | Package / Case | Viewing Angle | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Supplier Device Package | Voltage - Forward (Vf) (Typ) | Current - Test | Flux @ 85°C, Current - Test | Lumens/Watt @ Current - Test | Size / Dimension [y] | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 40 °C/W | 0.138 in | 0.126 in | 3.5 mm | 3.2 mm | 180 mA | 80 | Cool White | 4-SMD J-Lead Exposed Pad | 120 ° | 1.2 mm | 0.047 " | Surface Mount | 4-PLCC | 3.2 V | |||||
Broadcom Limited | 40 °C/W | 0.126 " | 0.11 " | 3.2 mm | 180 mA | Cool White | 4-PLCC | 120 ° | 2.1 mm | 0.083 in | Surface Mount | 4-PLCC | 3.4 V | 150 mA | 43 lm | 106 lm/W | 2.8 mm | 8000 K | ||
 Broadcom Limited | 40 °C/W | 0.126 " | 0.11 " | 3.2 mm | 180 mA | Neutral White | 4-PLCC | 120 ° | 2.1 mm | 0.083 in | Surface Mount | 4-PLCC | 3.4 V | 150 mA | 43 lm | 106 lm/W | 2.8 mm |
