1825264 Series

Catalog

SWITCH SLIDE 4PDT 0.4VA 20V

Part	Mechanical Life	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - AC	Voltage Rating - DC	Contact Material	Mounting Type	Switch Travel	Electrical Life	Features	Contact Timing	Actuator Type	Contact Finish	Actuator Length [x]	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Material

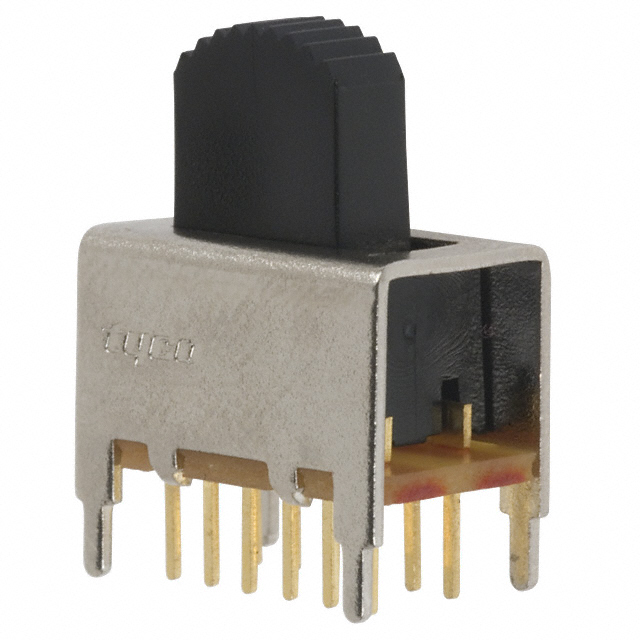

TE Connectivity Raychem Cable Protection 1825264-2	15000 Cycles	0.4 VA	PC Pin	4PDT	20 V	20 V	Copper Alloy	Through Hole	2 mm	15000 Cycles	Epoxy Sealed Terminals	Shorting	Standard	Gold	8 mm	600 gf	85 °C	-20 C	On-On	Polyoxymethylene (Acetal) (POM)

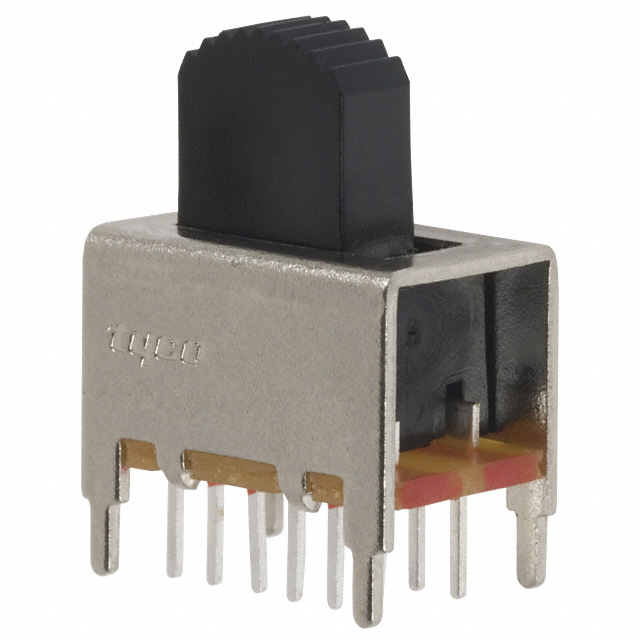

TE Connectivity Raychem Cable Protection 1825264-1	15000 Cycles	300 mA	PC Pin	4PDT	125 V		Copper Alloy	Through Hole	2 mm	15000 Cycles	Epoxy Sealed Terminals	Shorting	Standard	Silver	8 mm	600 gf	85 °C	-20 C	On-On	Polyoxymethylene (Acetal) (POM)
