AL6H Series
Manufacturer: IDEC
Beta
⌘K
SWITCH ACTUATOR, IDEC AL6 SERIES ILLUMINATED PUSHBUTTON SWITCHES, A6 SERIES
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Switch Function | Circuit | Actuator Type | Voltage Rating - DC | Type | Actuator Marking | Mounting Type | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

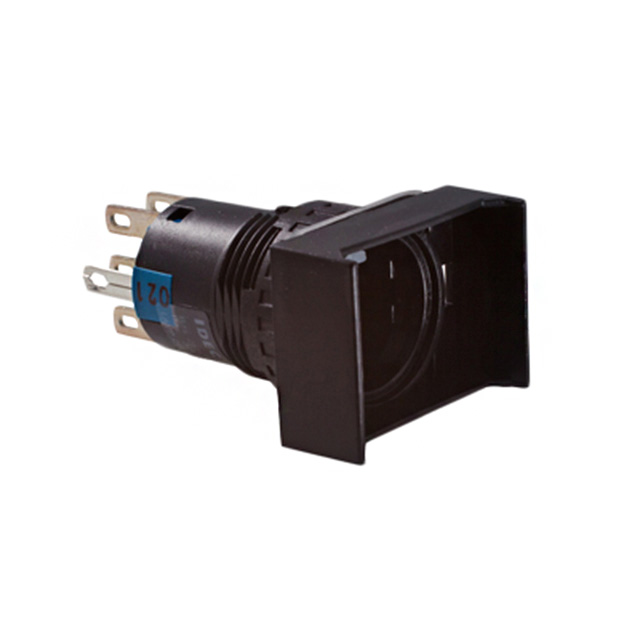

 IDEC | 100000 Cycles | 1000000 Cycles | 1 A | 55 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 120 V | On-Mom | SPDT | Button Rectangular | 24 V | Illuminated Standard | No Marking | Panel Mount Front | ||||

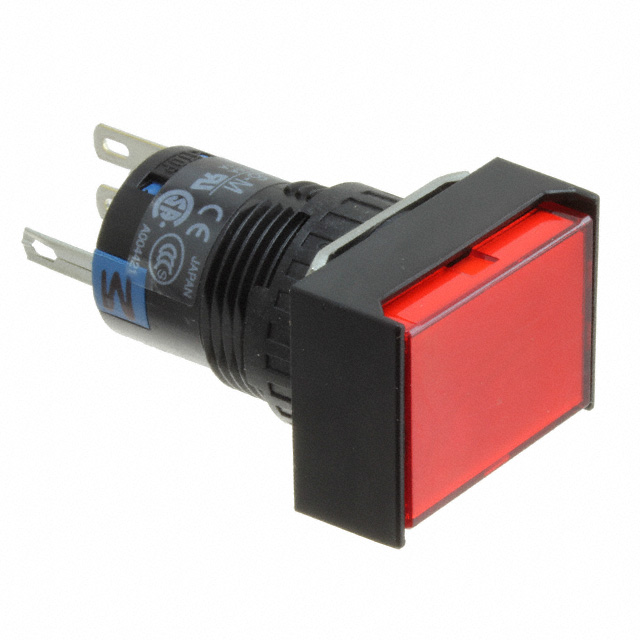

 IDEC | 100000 Cycles | 1000000 Cycles | 1 A | 55 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 120 V | On-Mom | SPDT | Button Rectangular | 24 V | Illuminated Standard | No Marking | Panel Mount Front | LED Red | 24 VAC/DC | IP65 | Red |
