SRD1-2G Series

Catalog

SWITCH ROCKER DPDT 21A 125V

Part	Current Rating (Amps)	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Switch Function	Actuator Type	Ingress Protection	Actuator Marking	Termination Style	Mechanical Life	Electrical Life
Switch Components SRD1-2G-DC-1-RNN	20 A 21 A	DPDT	21 mm	36.8 mm	14 V	Panel Mount Snap-In	Red	85 °C	-25 °C	125 V	Mom-Off-Mom	Convex (Reverse V)	IP56 - Dust Protected Water Resistant	No Marking	Quick Connect - 0.250" (6.3mm)
Switch Components SRD1-2G-DC-1-BNN	20 A 21 A	DPDT	21.2 mm	36.8 mm	14 V	Panel Mount Snap-In	Black	85 °C	-25 °C	125 V	Mom-Off-Mom	Convex (Reverse V)	IP56 - Dust Protected Water Resistant	No Marking	Quick Connect - 0.250" (6.3mm)	10000 Steps	6000 Cycles

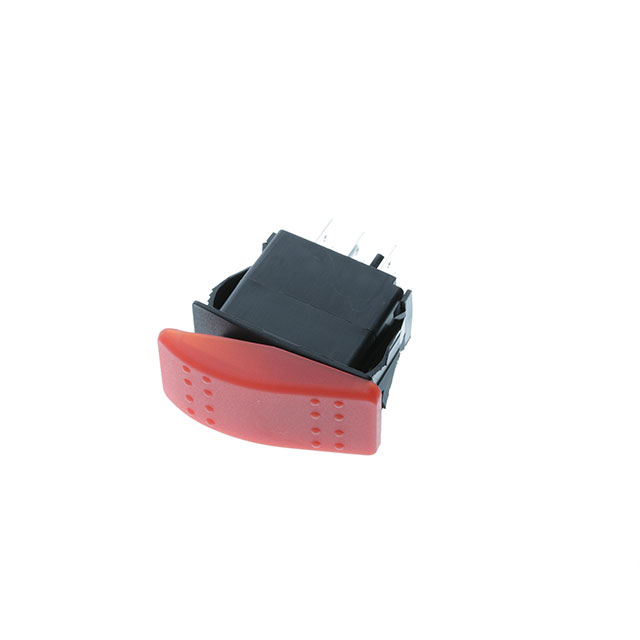

Switch Components SRD1-2G-AC-1-RNN	20 A	DPDT	21.2 mm	36.8 mm		Panel Mount Snap-In	Red	85 °C	-25 °C	125 V	Mom-Off-Mom	Convex (Reverse V)	IP56 - Dust Protected Water Resistant	No Marking	Quick Connect - 0.250" (6.3mm)
Switch Components SRD1-2G-AC-1-BNN	20 A	DPDT	21.2 mm	36.8 mm		Panel Mount Snap-In	Black	85 °C	-25 °C	125 V	Mom-Off-Mom	Convex (Reverse V)	IP56 - Dust Protected Water Resistant	No Marking	Quick Connect - 0.250" (6.3mm)
