TX24-60R Series

Catalog

CONN RCPT 60POS VERT GOLD

Part	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Mounting Type	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Finish	Connector Type	Features

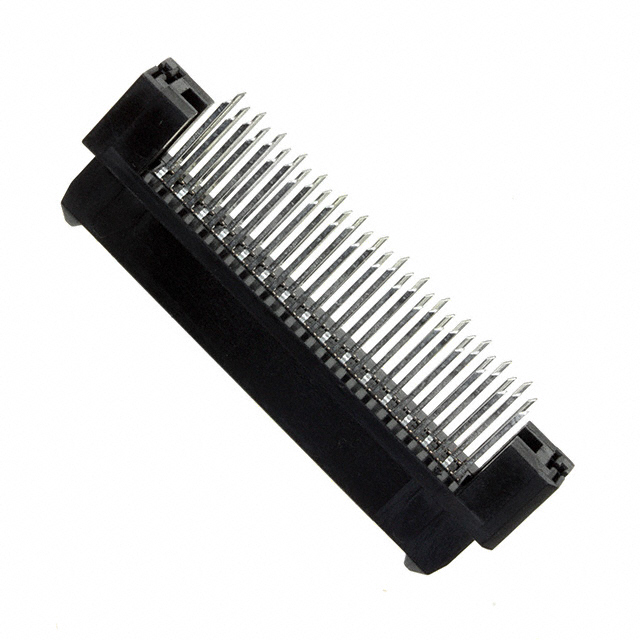

JAE Electronics TX24-60R-12ST-N1E	0.05 in	1.27 mm	0.1 Ám	4 Áin	18 mm 20 mm 24 mm	Through Hole	2	16.3 mm	0.642 in	60	Gold	Receptacle Outer Shroud Contacts

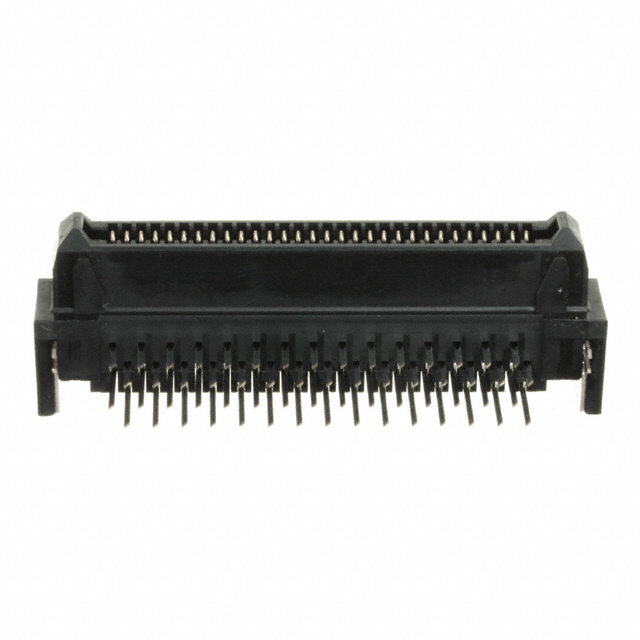

JAE Electronics TX24-60R-LT-H1E	0.05 in	1.27 mm	0.1 Ám	4 Áin		Right Angle Through Hole	2	9 mm	0.354 in	60	Gold	Receptacle Outer Shroud Contacts	Board Lock
JAE Electronics TX24-60R-6ST-N1E	0.05 in	1.27 mm	0.1 Ám	4 Áin	12 mm 14 mm 18 mm	Through Hole	2	10.3 mm	0.406 in	60	Gold	Receptacle Outer Shroud Contacts

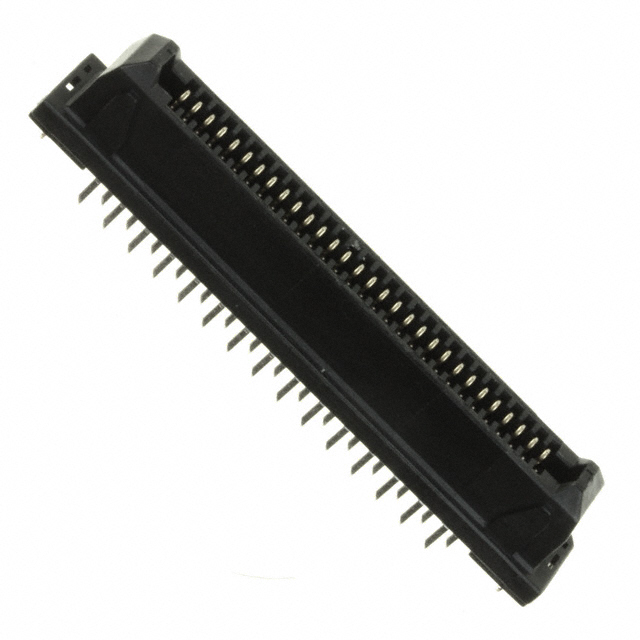

JAE Electronics TX24-60R-6ST-H1E	0.05 in	1.27 mm	0.1 Ám	4 Áin	12 mm 14 mm 18 mm	Through Hole	2	10.3 mm	0.406 in	60	Gold	Receptacle Outer Shroud Contacts	Board Lock

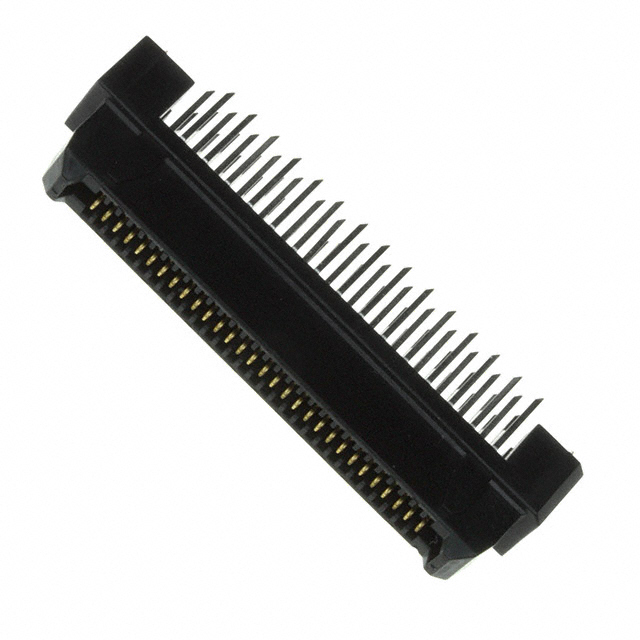

JAE Electronics TX24-60R-10ST-H1E	0.05 in	1.27 mm	0.1 Ám	4 Áin	16 mm 18 mm 22 mm	Through Hole	2	14.3 mm	0.563 in	60	Gold	Receptacle Outer Shroud Contacts	Board Lock

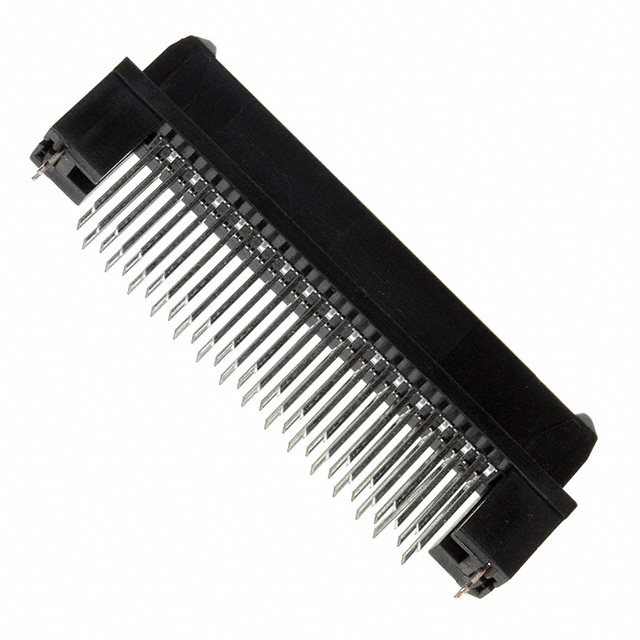

JAE Electronics TX24-60R-12ST-H1E	0.05 in	1.27 mm	0.1 Ám	4 Áin	18 mm 20 mm 24 mm	Through Hole	2	16.3 mm	0.642 in	60	Gold	Receptacle Outer Shroud Contacts	Board Lock

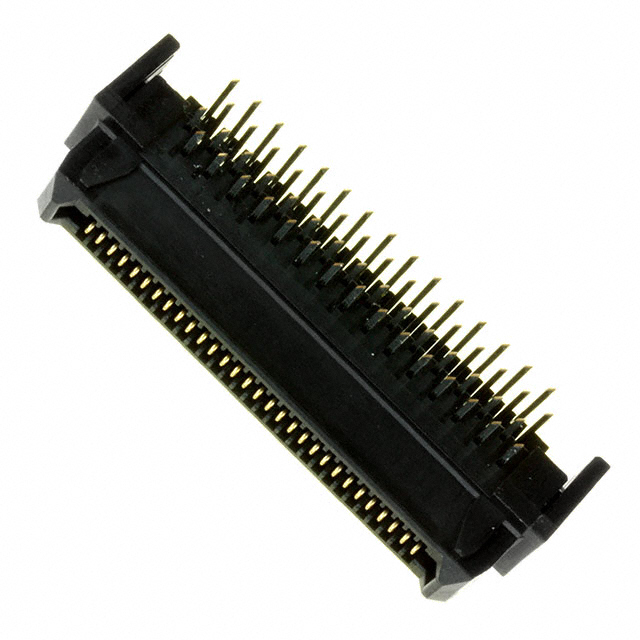

JAE Electronics TX24-60R-LT-N1E	0.05 in	1.27 mm	0.1 Ám	4 Áin		Right Angle Through Hole	2	9 mm	0.354 in	60	Gold	Receptacle Outer Shroud Contacts
