1064 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CBL ASSY OSMT JACK-JACK 1.969"
| Part | 2nd Connector | Style [Max] | Style [Min] | Style | Overall Impedance | Length [x] | Length [x] | 1st Connector | Color | 1st Connector Mounting Type | Frequency - Max [Max] | 1st Contact Gender | Operating Temperature [Min] | Operating Temperature [Max] | 2nd Connector Mounting Type | Features | 2nd Contact Gender | Style | Cable Type [diameter] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | OSMT Jack Right Angle | 20 mA | 10 mA | 5 V | 50 Ohms | 50 mm | 1.969 in | OSMT Jack Right Angle | Black | Free Hanging (In-Line) | 6000 MHz | Female | -40 C | 105 ░C | Free Hanging (In-Line) | Shielded | Female | |||||
TE Connectivity AMP Connectors | OSMT Jack Right Angle | 20 mA | 10 mA | 5 V | 50 Ohms | 125 mm | 4.921 in | OSMT Jack Right Angle | Free Hanging (In-Line) | 6000 MHz | Female | -40 C | 105 ░C | Free Hanging (In-Line) | Shielded | Female | ||||||

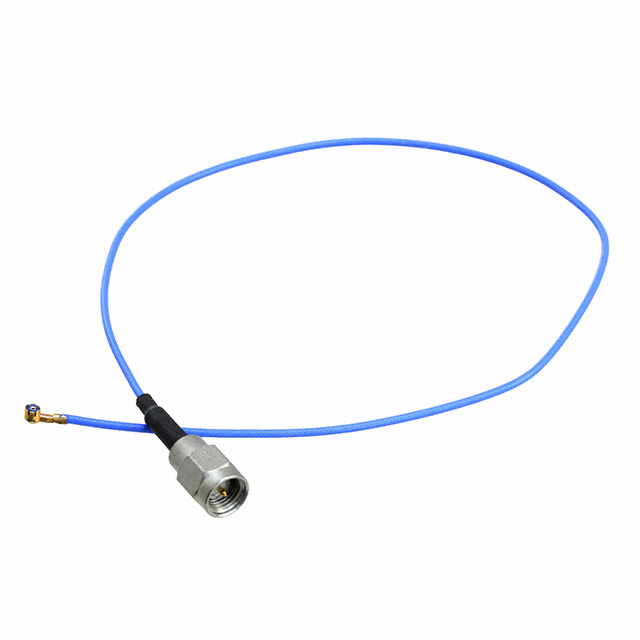

 TE Connectivity AMP Connectors | SMA Plug | 50 Ohms | 304.8 mm | 12 in | SSMT Jack Right Angle | Blue | Free Hanging (In-Line) | 6000 MHz | Female | -40 C | 125 °C | Free Hanging (In-Line) | Shielded | Male | SMA to SSMT | 1.3 mm | Coaxial Cable | |||||
TE Connectivity AMP Connectors | SMA Plug | 50 Ohms | SSMT Jack Right Angle | Blue | Free Hanging (In-Line) | 6000 MHz | Female | -40 C | 125 °C | Free Hanging (In-Line) | Shielded | Male | SMA to SSMT | 1.3 mm | Coaxial Cable | 200 mm | 7.874 in | |||||

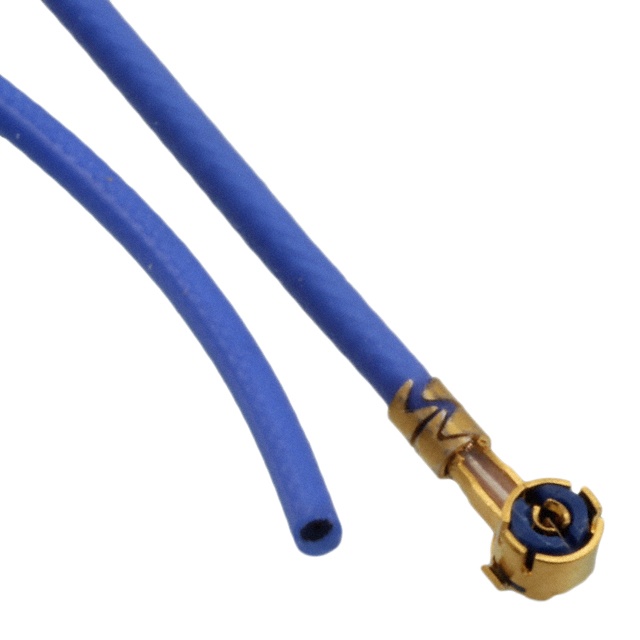

 TE Connectivity AMP Connectors | Cable (Round) | 50 Ohms | 304.8 mm | 12 in | SSMT Jack Right Angle | Blue | Free Hanging (In-Line) | 6000 MHz | Female | -40 C | 125 °C | Shielded | SSMT to Cable |
