DF201 Series

Catalog

RECTIFIER BRIDGE DIODE SINGLE 100V 2A 4-PIN CASE DF TUBE

Part	Package / Case	Package / Case	Package / Case	Diode Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Technology	Operating Temperature [Max]	Operating Temperature [Min]
Comchip Technology DF201-G	0.321 in	4-EDIP	8.15 mm	Single Phase	1.1 V	10 µA	4-DF	2 A	100 V	Through Hole	Standard	150 °C	-55 °C

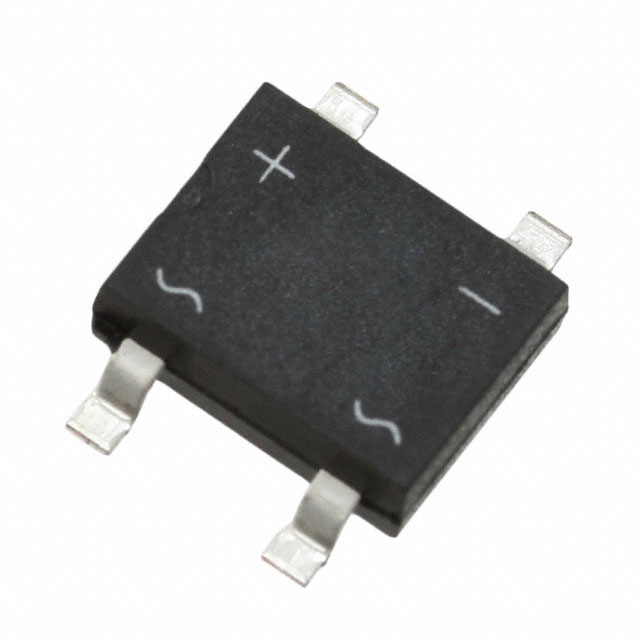

Comchip Technology DF201S-G		4-SMD Gull Wing		Single Phase	1.1 V	10 µA	DFS	2 A	100 V	Surface Mount	Standard	150 °C	-55 °C
Comchip Technology DF201SP-G		4-SMD Gull Wing		Single Phase	1.1 V	10 µA	DFS	2 A	100 V	Surface Mount	Standard	150 °C	-55 °C
