1571924 Series

Catalog

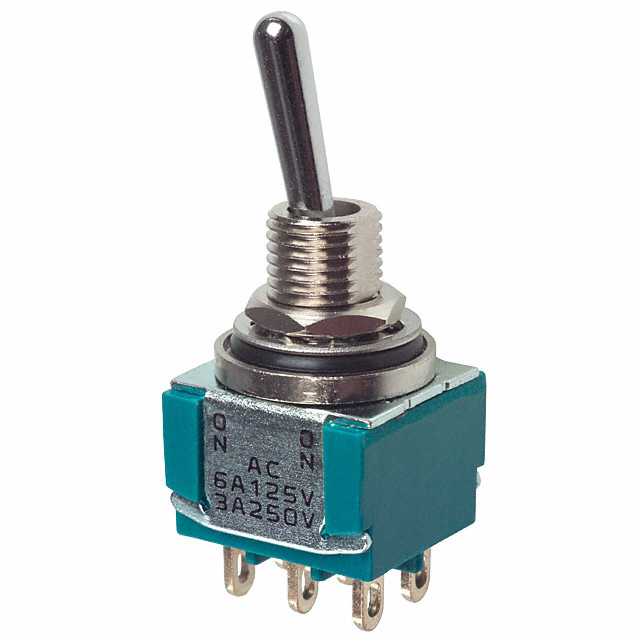

SWITCH TOGGLE 4PDT 6A 125V

Part	Electrical Life	Actuator Material	Features	Current Rating (Amps)	Illumination	Bushing Thread	Actuator Length [x]	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Actuator Type	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1-1571924-8	80000 Cycles	Copper Alloy Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	Non-Illuminated	1/4-40	10.49 mm	Solder Lug	On-On	6.4 mm	4PDT	Standard Round	Panel Mount	125 V	28 V	80 °C	-20 ░C
TE Connectivity AMP Connectors 1571924-6	60000 Cycles	Brass Nickel Plated	Epoxy Sealed Terminals	4 A 6 A	Non-Illuminated	1/4-40	10.49 mm	Solder Lug	Mom-Off-Mom	6.4 mm	SPDT	Standard Round	Panel Mount	125 V	28 V	80 °C	-20 ░C
TE Connectivity AMP Connectors 1-1571924-0	80000 Cycles	Copper Alloy Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	Non-Illuminated	1/4-40	10.49 mm	Solder Lug	On-On	6.4 mm	DPDT	Standard Round	Panel Mount	125 V	28 V	80 °C	-20 ░C
TE Connectivity AMP Connectors 1-1571924-4	60000 Cycles	Copper Alloy Chrome Plated	Epoxy Sealed Terminals	4 A 6 A	Non-Illuminated	1/4-40	10.49 mm	Solder Lug	Mom-Off-Mom	6.4 mm	DPDT	Standard Round	Panel Mount	125 V	28 V	80 °C	-20 ░C
TE Connectivity AMP Connectors 1571924-4	60000 Cycles	Brass Nickel Plated	Epoxy Sealed Terminals	4 A 6 A	Non-Illuminated	1/4-40	10.49 mm	Solder Lug	On-Off-On	6.4 mm	SPDT	Standard Round	Panel Mount	125 V	28 V	80 °C	-20 ░C
