KLPX-0848 Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN RCA PHONO JACK R/A WHITE
| Part | Contact Material | Housing Material | Body Color | Contact Material - Plating | Body Material | Gender | Termination | Insulation Color | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Industry Recognized Mating Diameter [diameter] | Connector Type | Signal Lines | Internal Switch(s) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

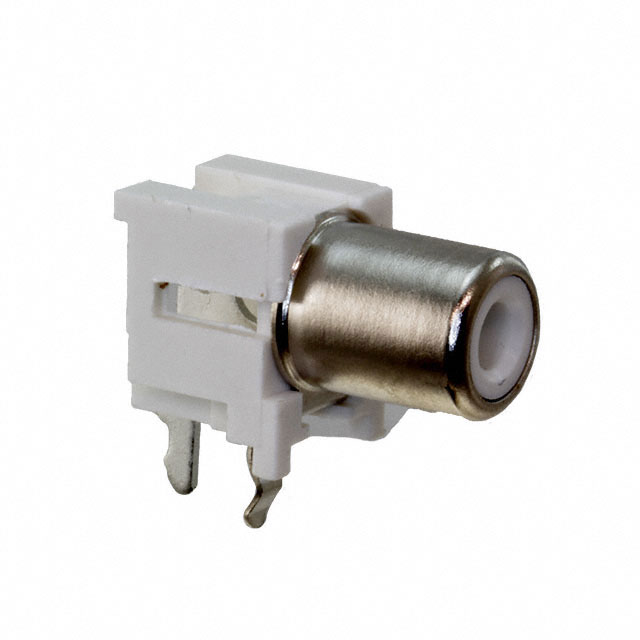

 Kycon, Inc. | Brass | Polybutylene Terephthalate (PBT) | Silver White | Nickel Tin | Brass | Female | Kinked Pin | White | Right Angle Through Hole | 2 | 2 | 3.2 mm 9 mm | Phono (RCA) Jack | Mono | Board Lock | -25 °C | 80 °C | Unshielded | |

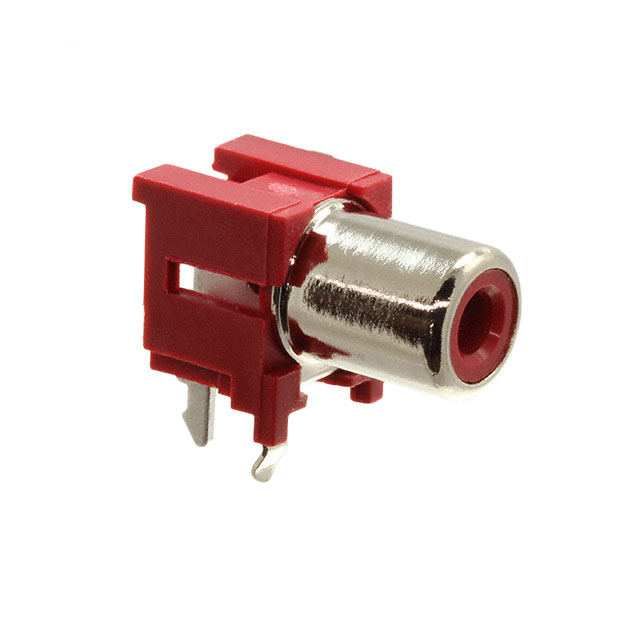

 Kycon, Inc. | Brass | Polybutylene Terephthalate (PBT) | Red Silver | Nickel Tin | Brass | Female | Kinked Pin | Red | Right Angle Through Hole | 2 | 2 | 3.2 mm 9 mm | Phono (RCA) Jack | Mono | Board Lock | -25 °C | 80 °C | Unshielded |
