M2044SS Series

Catalog

SWITCH TOGGLE DP3T 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - DC	Features	Actuator Type	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Illumination	Circuit	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Length [x]
NKK Switches M2044SS1W01	25000 Steps	Brass Chrome Plated	30 V	Jumper needed to achieve triple throw	Standard Round	1/4-40	85 °C	-30 ░C	On-On-On	Solder Lug	Non-Illuminated	DP3T	125 V	3 A 6 A	Panel Mount	6.5 mm
NKK Switches M2044SS1W01-BG	25000 Steps	Brass Chrome Plated	30 V	Jumper needed to achieve triple throw	Standard Round with Cap	1/4-40	85 °C	-30 ░C	On-On-On	Solder Lug	Non-Illuminated	DP3T	125 V	3 A 6 A	Panel Mount	6.5 mm	13.5 mm
NKK Switches M2044SS1W03-BE	25000 Steps	Brass Chrome Plated	30 V	Jumper needed to achieve triple throw	Standard Round with Cap	1/4-40	85 °C	-30 ░C	On-On-On	PC Pin	Non-Illuminated	DP3T	125 V	3 A 6 A	Panel Mount	6.5 mm	13.5 mm
NKK Switches M2044SS1W01-BA	25000 Steps	Brass Chrome Plated	30 V	Jumper needed to achieve triple throw	Standard Round with Cap	1/4-40	85 °C	-30 ░C	On-On-On	Solder Lug	Non-Illuminated	DP3T	125 V	3 A 6 A	Panel Mount	6.5 mm	13.5 mm
NKK Switches M2044SS1W01-BE	25000 Steps	Brass Chrome Plated	30 V	Jumper needed to achieve triple throw	Standard Round with Cap	1/4-40	85 °C	-30 ░C	On-On-On	Solder Lug	Non-Illuminated	DP3T	125 V	3 A 6 A	Panel Mount	6.5 mm	13.5 mm

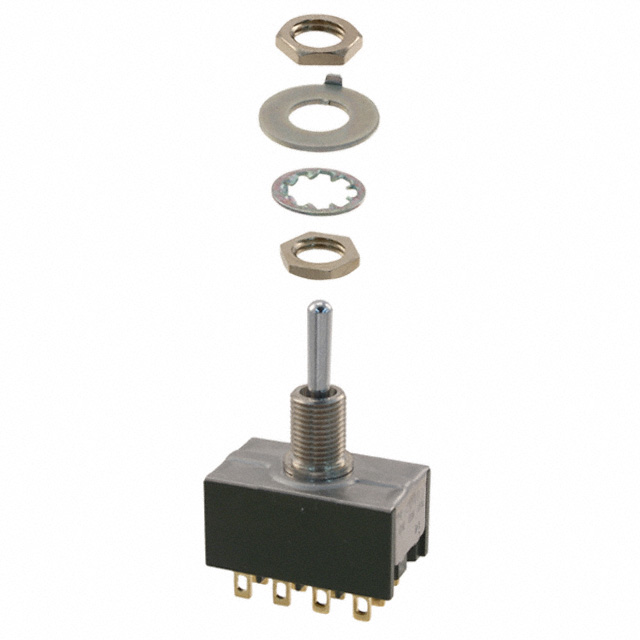

NKK Switches M2044SS1G01	50000 Cycles	Brass Chrome Plated	28 V	Jumper needed to achieve triple throw	Standard Round	1/4-40	85 °C	-30 ░C	On-On-On	Solder Lug	Non-Illuminated	DP3T	28 V	0.4 VA	Panel Mount	6.5 mm
NKK Switches M2044SS1W01-BC	25000 Steps	Brass Chrome Plated	30 V	Jumper needed to achieve triple throw	Standard Round with Cap	1/4-40	85 °C	-30 ░C	On-On-On	Solder Lug	Non-Illuminated	DP3T	125 V	3 A 6 A	Panel Mount	6.5 mm	13.5 mm
