2314925 Series

Catalog

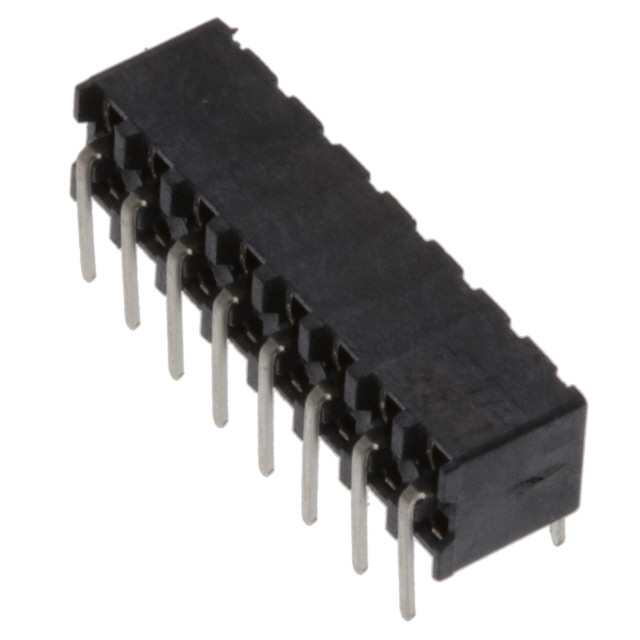

16P,2MM,B-B,REC,DRHZ,2.8,0.38AU,

Part	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Number of Rows	Connector Type	Voltage Rating	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Termination	Contact Finish - Mating	Number of Positions	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Number of Positions
TE Connectivity Raychem Cable Protection 1-2314925-6	0.11 in	2.79 mm	Black	2	Receptacle	125 VDC	Tin	All	UL94 V-0	2 A	Push-Pull	Solder	Gold	16	Female Socket	0.3 µm	12 µin	0.161 in	4.1 mm	Phosphor Bronze	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	0.079 in	2 mm	Through Hole Right Angle	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 1-2314925-4	0.11 in	2.79 mm	Black	2	Receptacle	125 VDC	Tin	All	UL94 V-0	2 A	Push-Pull	Solder	Gold		Female Socket	0.3 µm	12 µin	0.161 in	4.1 mm	Phosphor Bronze	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	0.079 in	2 mm	Through Hole Right Angle	0.079 in	2 mm	Square	14
