VL08 Series

Catalog

TERM BLOCK HDR 8POS VERT 3.81MM

Part	Contact Mating Finish	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Type	Header Orientation	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Current - UL	Number of Positions	Housing Material	Termination Style	Mounting Type	Insulation Height	Insulation Height	Voltage - UL	Color	Positions Per Level	Material Flammability Rating	Features	Contact Material
Amphenol Anytek VL0832500000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	Vertical	0.15 in	3.81 mm	3.5 mm	0.138 in	10 A	8	Thermoplastic	Solder	Through Hole	0.866 in	22 mm	300 V	Green	4	UL94 V-0	Mating Flange	Copper
Amphenol Anytek VL0813510000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	90° Right Angle	0.138 in	3.5 mm	3.5 mm	0.138 in	8 A	8	Thermoplastic	Solder	Through Hole	0.894 "	22.71 mm	300 V	Green	4	UL94 V-0		Copper
Amphenol Anytek VL0814510000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	90° Right Angle	0.138 in	3.5 mm	3.5 mm	0.138 in	8 A	8	Thermoplastic	Solder	Through Hole	0.894 "	22.71 mm	300 V	Green	4	UL94 V-0	Mating Flange	Copper

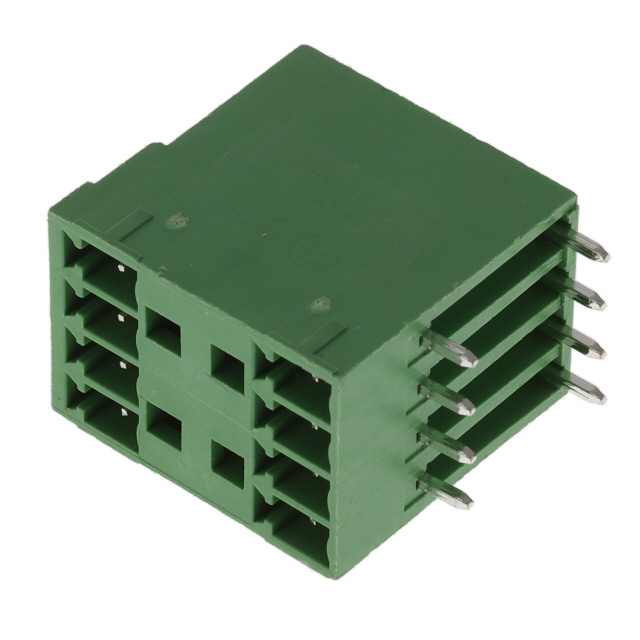

Amphenol Anytek VL0831510000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	90° Right Angle	0.15 in	3.81 mm	3.5 mm	0.138 in	10 A	8	Thermoplastic	Solder	Through Hole	0.894 "	22.71 mm	300 V	Green	4	UL94 V-0		Copper
Amphenol Anytek VL0811500000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	Vertical	0.138 in	3.5 mm	3.6 mm	0.142 in	10 A	8	Thermoplastic	Solder	Through Hole	0.862 in	21.89 mm	300 V	Green	4	UL94 V-0		Copper
Amphenol Anytek VL0814500000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	Vertical	0.138 in	3.5 mm	3.5 mm	0.138 in	8 A	8	Thermoplastic	Solder	Through Hole	0.866 in	22 mm	300 V	Green	4	UL94 V-0	Mating Flange	Copper
Amphenol Anytek VL0871500000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	Vertical	0.197 in	5 mm	3.9 mm	0.154 "	20 A	8	Thermoplastic	Solder	Through Hole	0.866 in	22 mm	300 V	Green	4	UL94 V-0		Brass
Amphenol Anytek VL0832510000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	90° Right Angle	0.15 in	3.81 mm	3.5 mm	0.138 in	10 A	8	Thermoplastic	Solder	Through Hole	0.894 "	22.71 mm	300 V	Green	4	UL94 V-0	Mating Flange	Copper
Amphenol Anytek VL0872510000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	90° Right Angle	0.197 in	5 mm	4 mm	0.157 in	20 A	8	Thermoplastic	Solder	Through Hole	1.122 in	28.5 mm	300 V	Green	4	UL94 V-0	Mating Flange	Copper
Amphenol Anytek VL0852510000G	Tin	2	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	90° Right Angle	0.2 in	5.08 mm	4 mm	0.157 in	20 A	8	Thermoplastic	Solder	Through Hole	1.134 in	28.8 mm	300 V	Green	4	UL94 V-0	Mating Flange	Copper
