34149 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

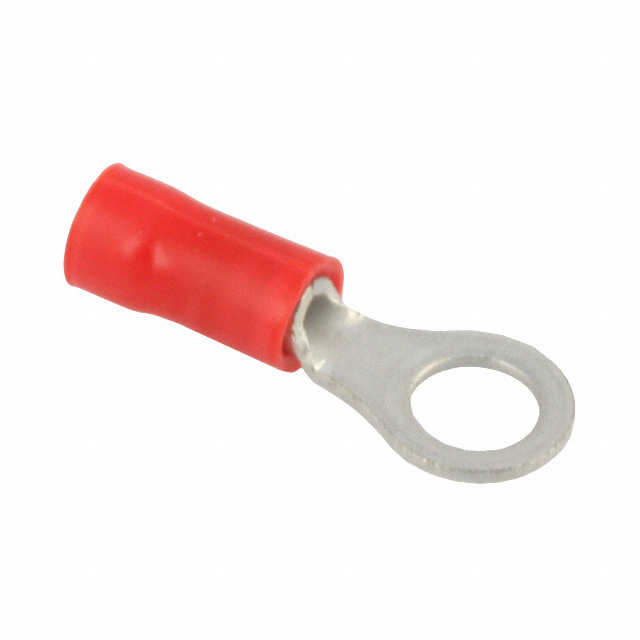

CONN RING CIRC 16-22AWG #10
| Part | Contact Finish | Insulation | Terminal Type | Contact Material | Features | Color | Thickness | Thickness | Length - Overall | Length - Overall [x] | Material - Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Stud/Tab Size | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | Insulated | Circular | Copper | Serrated Termination | Red | 0.031 in | 0.79 mm | 21.74 mm | 0.856 " | Poly-Vinyl Chloride (PVC) | 7.92 mm | 0.312 in | Crimp | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 10 Stud | Free Hanging (In-Line) | 22 AWG | 16 AWG |
