4600M Series
Manufacturer: Bourns Inc.
Beta
⌘K
RESISTOR NETWORK,THICK FILM,8.2KOHMS,100WV,2+/-% TOL,-100,100PPM-TC,8010-CASE ROHS COMPLIANT: YES
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Power Per Element | Package / Case | Resistance (Ohms) | Resistor-Ratio-Drift | Supplier Device Package | Number of Resistors | Circuit Type | Number of Pins | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Resistance (Ohms) | Size / Dimension [y] | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 8-SIP | 8.2 kOhms | 50 ppm/°C | 8-SIP | 7 | Bussed | 8 | 6.35 mm | 0.25 in | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | |||
 Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 9-SIP | 50 ppm/°C | 9-SIP | 8 | Bussed | 9 | 6.35 mm | 0.25 in | 2 % | 22.81 mm | 0.098 in | 2.49 mm | 0.898 in | 100k | |||
Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 400 mW | 8-SIP | 50 ppm/°C | 8-SIP | 4 | Isolated | 8 | 6.35 mm | 0.25 in | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | 100k | |||
 Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 5-SIP | 50 ppm/°C | 5-SIP | 4 | Bussed | 5 | 6.35 mm | 0.25 in | 2 % | 12.65 mm | 0.098 in | 2.49 mm | 0.498 " | 10k | |||
 Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 6-SIP | 50 ppm/°C | 6-SIP | 5 | Bussed | 6 | 6.35 mm | 0.25 in | 2 % | 15.19 mm | 0.098 in | 2.49 mm | 0.598 " | 10k | |||

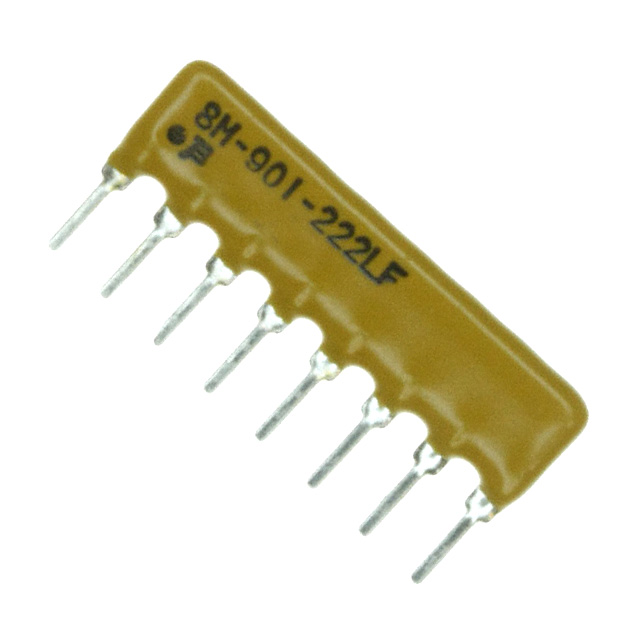

Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 400 mW | 8-SIP | 2.2 kOhms | 50 ppm/°C | 8-SIP | 4 | Isolated | 8 | 6.35 mm | 0.25 in | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | |||
Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 8-SIP | 39 kOhms | 50 ppm/°C | 8-SIP | 7 | Bussed | 8 | 6.35 mm | 0.25 in | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | |||
Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 6-SIP | 50 ppm/°C | 6-SIP | 5 | Bussed | 6 | 6.35 mm | 0.25 in | 2 % | 15.19 mm | 0.098 in | 2.49 mm | 0.598 " | 22k | |||
Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 11-SIP | 50 ppm/°C | 11-SIP | 10 | Bussed | 11 | 6.35 mm | 0.25 in | 2 % | 27.89 mm | 0.098 in | 1.098 " | 10k | 2.49 mm | |||
 Bourns Inc. | Through Hole | -55 C | 125 °C | 100 ppm/°C | 250 mW | 10-SIP | 50 ppm/°C | 10-SIP | 9 | Bussed | 10 | 6.35 mm | 0.25 in | 2 % | 25.35 mm | 0.098 in | 2.49 mm | 0.998 in | 180 Ohms |
