AST11 Series

Catalog

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Ingress Protection	Current Rating (Amps)	Termination Style	Mounting Type	Voltage Rating - DC	Bushing Thread	Circuit	Panel Cutout Dimensions [diameter]	Illumination	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type
CIT Relay and Switch AST11P2EBQ	Brass Chrome Plated	30000 Cycles	120 V	IP67 - Dust Tight Waterproof	5 A	Solder Lug	Panel Mount	28 V	1/4-40	SPDT	0.25 in	Non-Illuminated	On-On	0.5 in	85 °C	-40 C	Standard Round

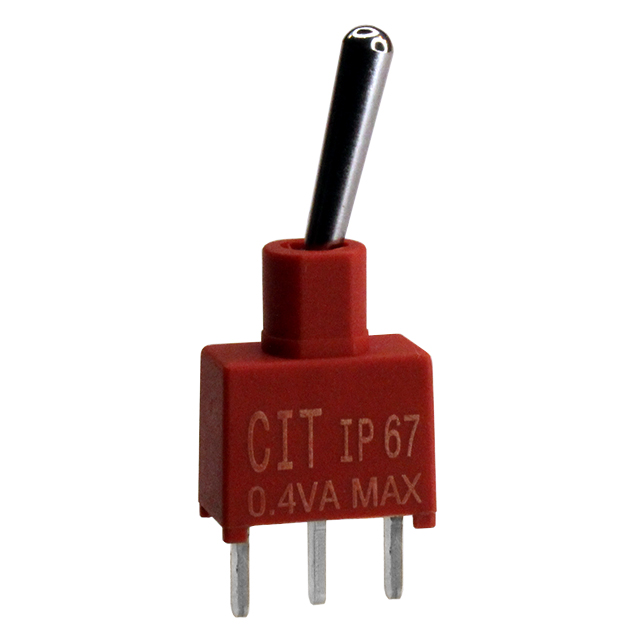

CIT Relay and Switch AST11SNCQ	Brass Chrome Plated	30000 Cycles	120 V	IP67 - Dust Tight Waterproof	5 A	PC Pin	Through Hole	28 V	Unthreaded	SPDT		Non-Illuminated	On-On	0.5 in	85 °C	-40 C	Standard Round

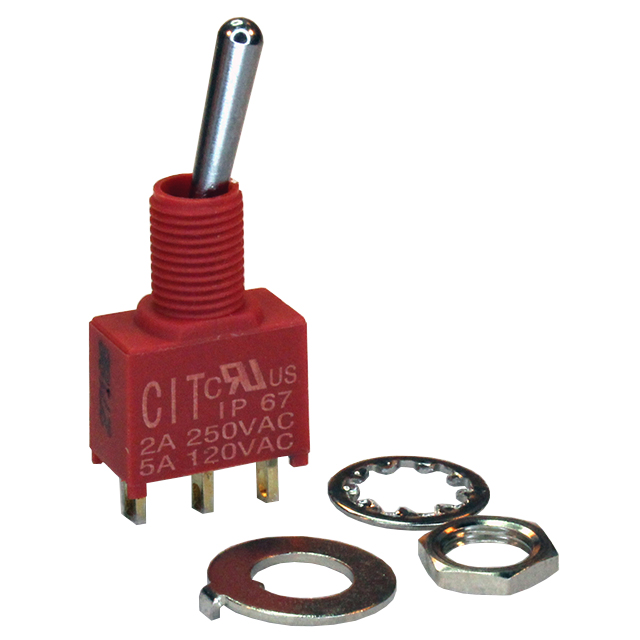

CIT Relay and Switch AST11SEBQ	Brass Chrome Plated	30000 Cycles	120 V	IP67 - Dust Tight Waterproof	5 A	Solder Lug	Panel Mount	28 V	1/4-40	SPDT	0.25 in	Non-Illuminated	On-On	0.5 in	85 °C	-40 C	Standard Round
CIT Relay and Switch AST11SNHQ	Brass Chrome Plated	30000 Cycles	120 V	IP67 - Dust Tight Waterproof	5 A	PC Pin	Right Angle Through Hole	28 V	Unthreaded	SPDT		Non-Illuminated	On-On	0.5 in	85 °C	-40 C	Standard Round
