745-118 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 118POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Gender	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Card Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Mounting Type	Read Out	Termination
EDAC Inc. 745-118-525-206	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit
EDAC Inc. 745-118-541-206	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit Wire Wrap
EDAC Inc. 745-118-545-206	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit
EDAC Inc. 745-118-525-201	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit
EDAC Inc. 745-118-545-201	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit

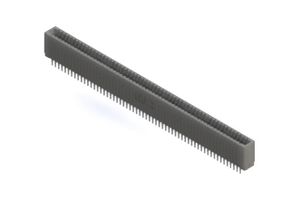

EDAC Inc. 745-118-520-201	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit

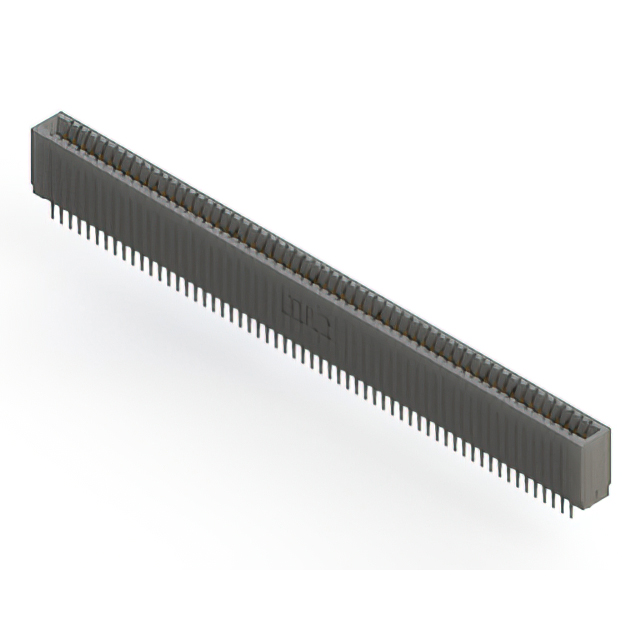

EDAC Inc. 745-118-560-201	2	Polyester Thermoplastic	Cantilever Make Before Break	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit
EDAC Inc. 745-118-540-201	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit Wire Wrap
EDAC Inc. 745-118-541-201	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit Wire Wrap
EDAC Inc. 745-118-520-206	2	Polyester Thermoplastic	Cantilever	30 Áin	0.76 Ám	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	0.1 "	2.54 mm	59	Non Specified - Dual Edge	118	-40 C	105 ░C	Black	Copper Alloy	Through Hole	Dual	Press-Fit
