Gecko-MT Series

Catalog

CONN, HDR, PIN, 4+4POS, THT-RT, 1.25MM ROHS COMPLIANT: YES

Part	Contact Type	Contact Finish - Post	Material Flammability Rating	Features	Termination	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Insulation Material	Contact Finish - Mating	Number of Positions	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Height	Insulation Height	Contact Shape	Style	Contact Material	Number of Rows [custom]	Connector Type	Current Rating (Amps)	Insulation Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Color	Pitch	Pitch	Contact Termination	Row Spacing	Row Spacing	Number of Positions [custom]	Number of Conductors	Number of Rows	Contact End	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Length	Length	Contact Finish

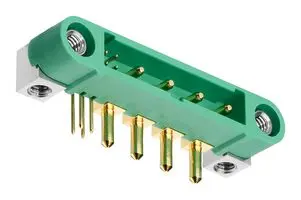

Harwin Inc. G125-MH104M4-04AD000P	Male Pin	Gold	UL94 V-0	Mating Flange Mounting Flange Polarizing Key	Solder	0.13 "	3.3 mm	150 °C	-65 ░C	All	Nylon 4T Polyamide (PA4T)	Gold	8	Right Angle Through Hole	1.25 mm	0.049 in	0.049 in	1.25 mm	Shrouded - 4 Wall	0.208 in	5.3 mm	Circular	Board to Board Cable	Beryllium Copper Phosphor Bronze	2	Header	2 A 10 A	Green
Harwin Inc. G125-MH116M3-04AD000P	Male Pin	Gold	UL94 V-0	Jackscrews Mating Flange Polarizing Key	Solder	0.13 "	3.3 mm	150 °C	-65 ░C	All	Nylon 4T Polyamide (PA4T)	Gold	20	Right Angle Through Hole	1.25 mm	0.049 in	0.049 in	1.25 mm	Shrouded - 4 Wall	0.208 in	5.3 mm	Circular	Board to Board Cable	Beryllium Copper Phosphor Bronze	2	Header	2 A 10 A	Green	16	4

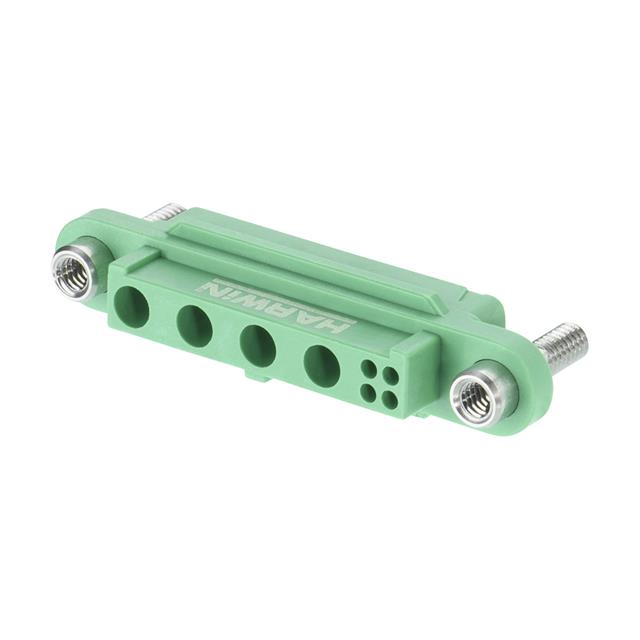

Harwin Inc. G125-22496F3-03-08-00	Female Socket			Mating Flange Polarizing Key				150 °C	-65 ░C		Nylon 4T Polyamide (PA4T)			Free Hanging (In-Line)											2	Receptacle				3	8	Green	0.049 in	1.25 mm	Crimp	1.25 mm	0.049 in
Harwin Inc. G125-22496F5-02-08-02	Female Socket			Mating Flange Mounting Flange Polarizing Key Threaded Inserts				150 °C	-65 ░C		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)			Panel Mount											2	Receptacle				4		Green	0.049 in	1.25 mm	Crimp	1.25 mm	0.049 in	8
Harwin Inc. G125-22496F2-02-04-00	Female Socket			Mating Flange Polarizing Key				150 °C	-65 ░C		Nylon 4T Polyamide (PA4T)		6	Free Hanging (In-Line)											2	Receptacle						Green	0.049 in	1.25 mm	Crimp	1.25 mm	0.049 in
Harwin Inc. G125-MW10150M94																																White							1	1	Pin to Pin	0.2 µm	8 µin	26 AWG	5.9 in	149.86 mm	Gold
Harwin Inc. G125-32496M3-02-04-00	Male Pin			Polarizing Key Threaded Inserts				150 °C	-65 ░C		Nylon 4T Polyamide (PA4T)		6	Free Hanging (In-Line)											2	Plug						Green	0.049 in	1.25 mm	Crimp	1.25 mm	0.049 in
