MDSTB Series

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

Catalog

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

Part	Insulation Height	Insulation Height	Material Flammability Rating	Housing Material	Contact Tail Length	Contact Tail Length	Voltage - UL	Number of Positions	Header Orientation	Contact Mating Finish	Current - IEC	Positions Per Level	Color	Features	Pitch	Pitch	Type	Termination Style	Number of Levels	Mounting Type	Voltage - IEC	Positions Per Level [custom]

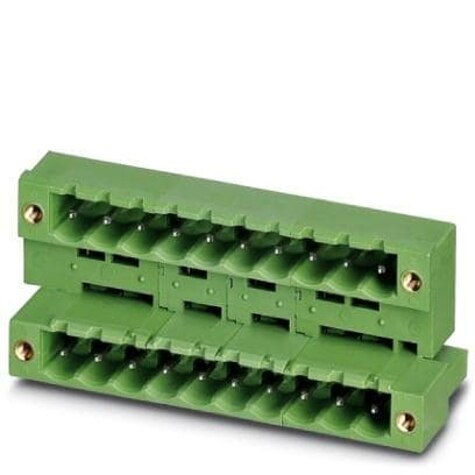

Phoenix Contact 1846726	0.933 "	23.7 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.138 in	3.5 mm	300 V	10	90° Right Angle	Tin	10 A	5	Green	Mating Flange	0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Solder	2	Through Hole	400 V
Phoenix Contact 1846412							300 V	14	90° Right Angle	Tin	10 A		Green	Interlocking (Side)	0.197 in	5 mm	Header Male Pins Shrouded (2 Side)	Solder	2	Through Hole	400 V	7

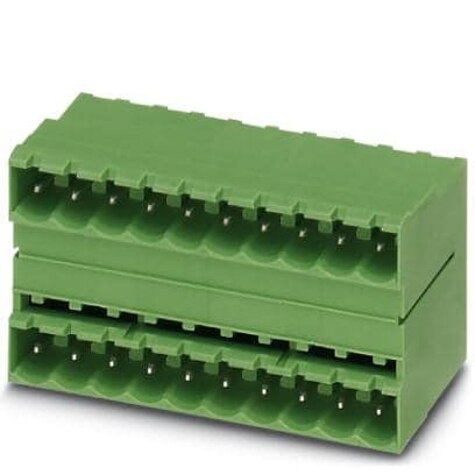

Phoenix Contact 1762800	1.122 in	28.5 mm	UL94 V-0	Polyamide (PA) Nylon	0.138 in	3.5 mm	300 V	26	90° Right Angle	Tin	10 A	13	Green		0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Solder	2	Through Hole	630 V
Phoenix Contact 1726444	0.933 "	23.7 mm						8	90° Right Angle	Tin	10 A	4	Gray	Interlocking (Side)	0.197 in	5 mm	Header Male Pins Shrouded (2 Side)	Solder	2	Through Hole	250 V
Phoenix Contact 1762813	1.122 in	28.5 mm	UL94 V-0	Polyamide (PA) Nylon	0.138 in	3.5 mm	300 V	28	90° Right Angle	Tin	10 A	14	Green		0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Solder	2	Through Hole	630 V
Phoenix Contact 1765438	1.122 in	28.5 mm	UL94 V-0	Polyamide (PA) Nylon	0.138 in	3.5 mm			90° Right Angle	Gold	10 A	16	Green		0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Solder	2	Through Hole	630 V
Phoenix Contact 1846768	0.933 "	23.7 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.138 in	3.5 mm	300 V	18	90° Right Angle	Tin	10 A	9	Green	Mating Flange	0.197 in	5 mm	Header Male Pins Shrouded (4 Side)	Solder	2	Through Hole	400 V

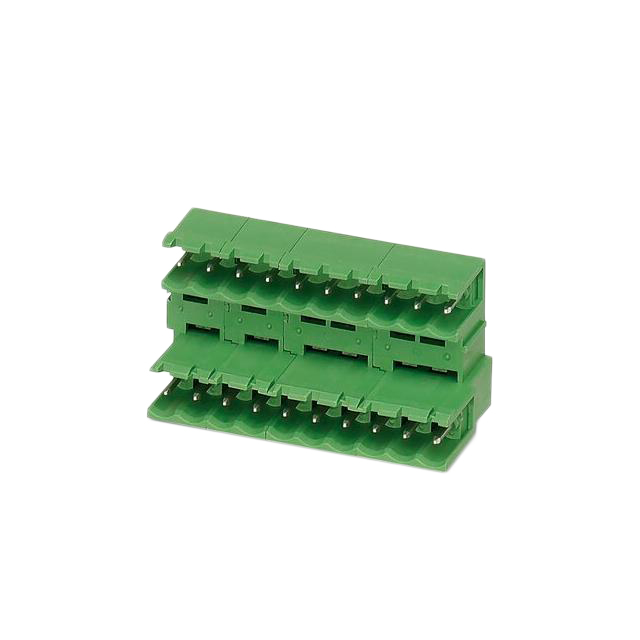

Phoenix Contact 1762088	0.933 "	23.7 mm	UL94 V-0	Polybutylene Terephthalate (PBT)				4	90° Right Angle	Tin	10 A	2	Black	Interlocking (Side)	0.197 in	5 mm	Header Male Pins Shrouded (2 Side)	Solder	2	Through Hole	630 V
Phoenix Contact 1837133							300 V	10	90° Right Angle	Tin	10 A	5	Green	Interlocking (Side)	0.197 in	5 mm	Header Male Pins Shrouded (2 Side)	Solder	2	Through Hole	400 V
Phoenix Contact 1834819							300 V	6	90° Right Angle	Tin	10 A	3	Beige	Interlocking (Side)	0.2 in	5.08 mm	Header Male Pins Shrouded (2 Side)	Solder	2	Through Hole	250 V
