Enc0 Series Series

Encoders Optical Encoder Optical Encoder

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Encoders Optical Encoder Optical Encoder

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Pulses per Revolution	Built in Switch	Detent	Output Type	Actuator Type	Encoder Type	Orientation	Rotational Life (Cycles Min) [Min]
Littelfuse/Commercial Vehicle Products ENCOS24D2S65R	4.75 V	5.25 V	Connector	24 per Revolution			2-Bit Quadrature	5.92mm Dia Knurled End	Optical	User Selectable	300K

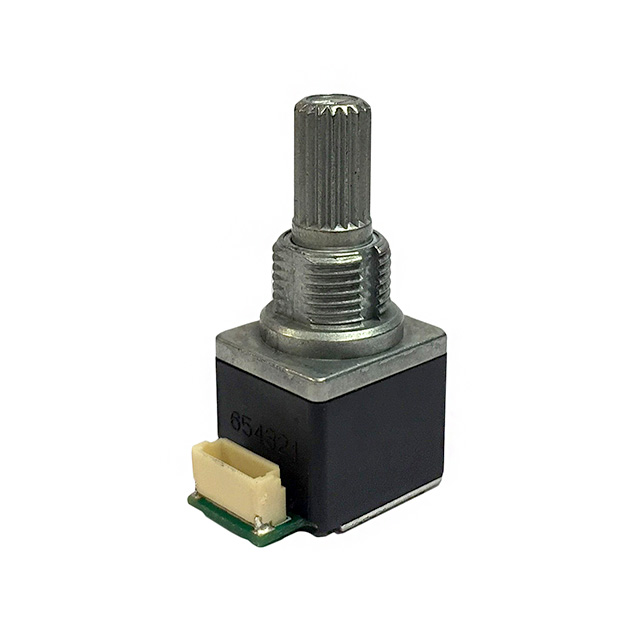

Littelfuse/Commercial Vehicle Products ENCOS16D2S65C			Connector	16			2-Bit Quadrature	5.92mm Dia Knurled End	Optical	User Selectable	300K

Catalog

Encoders Optical Encoder Optical Encoder

Key Features

• Clear Detent / Haptic feel

• Incremental type

• Two channels, 2 bit output

Description

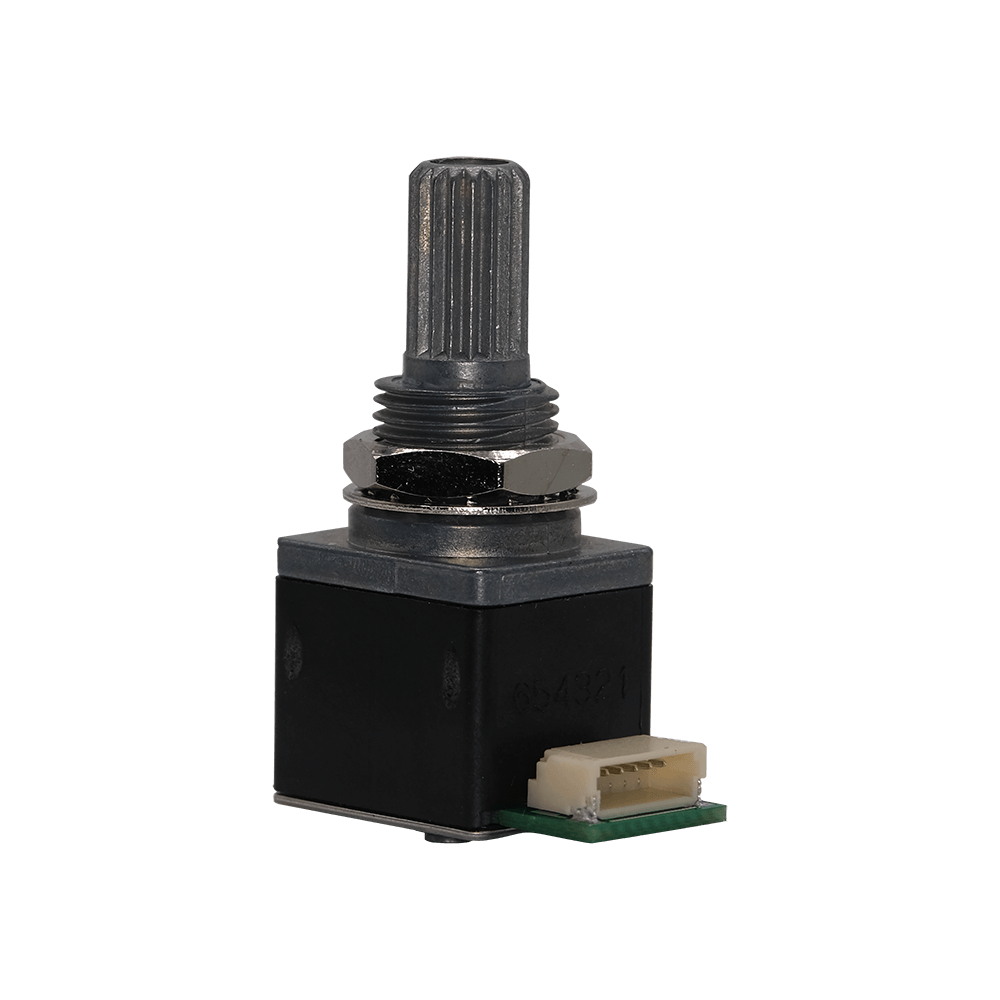

C&K’s ENC series optical encoder switches are perfect for designers in the automotive, industrial and instrumentation industries. Featuring clear detent and a strong haptic feel, these incremental type switches are available in two channels, with 2 bit output – and provide designers with the long-lasting, high performance switch needed to be successful.
