IL-Z-5 Series

Catalog

CONN HEADER VERT 5POS 1.25MM

Part	Mated Stacking Heights	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Rows	Fastening Type	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Contact Shape	Current Rating (Amps)	Connector Type	Voltage Rating	Shrouding	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Material	Insulation Material	Style	Insulation Height [z]	Insulation Height [z]	Features	Contact Finish - Mating	Note	Contact Termination	Pitch	Pitch
JAE Electronics IL-Z-5P-S125T3-E	5.2 mm	Male Pin	1.7 mm	0.067 in	5	70 °C	-40 C	0.108 in	2.75 mm	Tin	0.049 in	1.25 mm	UL94 V-0	1	Push-Pull	Solder	4.25 mm	0.167 "	All	Through Hole	Square	1 A	Header	200 V	Shrouded - 4 Wall	Brown	0.209 in	5.3 mm	Brass	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire
JAE Electronics IL-Z-5PL1-SMTYE-R1500		Male Pin			5	70 °C	-40 C	0.108 in	2.75 mm		0.049 in	1.25 mm	UL94 V-0	1	Friction Lock	Solder			All	Right Angle Surface Mount	Square	1 A	Header	200 V	Shrouded - 4 Wall	Beige			Brass	Polyphenylene Sulfide (PPS)	Board to Cable/Wire	3.46 mm	0.136 in	Solder Retention	Gold

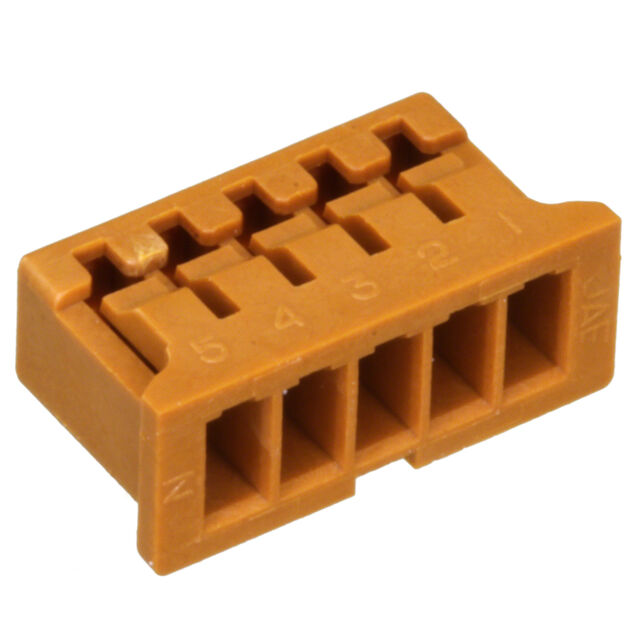

JAE Electronics IL-Z-5S-S125C3		Female Socket			5	70 °C	-40 C							1	Friction Lock					Free Hanging (In-Line)			Receptacle							Glass Filled Nylon 6/6 Polyamide (PA66)						Contacts Not Included	Crimp	0.049 in	1.25 mm
JAE Electronics IL-Z-5PL-SMTYE-R1500		Male Pin			5	70 °C	-40 C	0.108 in	2.75 mm	Tin	0.049 in	1.25 mm	UL94 V-0	1	Friction Lock	Solder			All	Right Angle Surface Mount	Square	1 A	Header	200 V	Shrouded - 4 Wall	Beige			Brass	Polyphenylene Sulfide (PPS)	Board to Cable/Wire	3.46 mm	0.136 in	Solder Retention
