0295-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

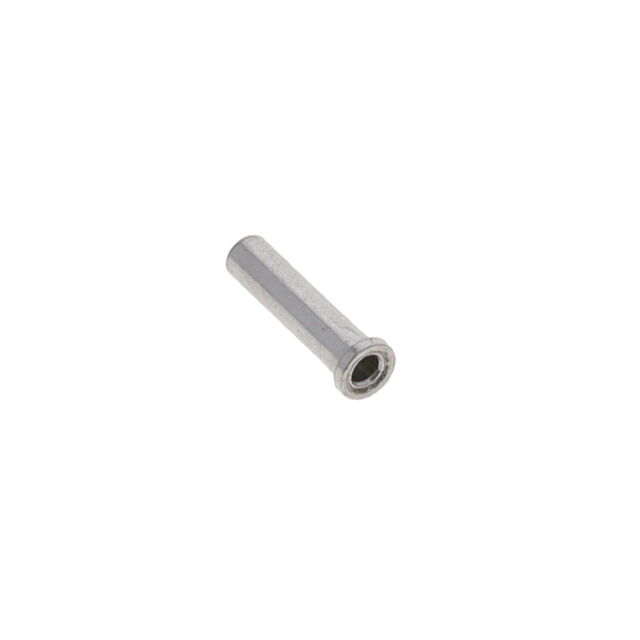

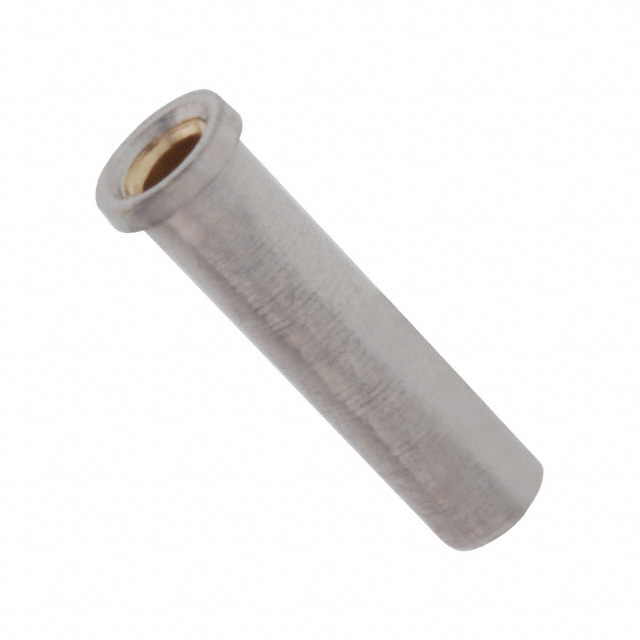

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Socket Depth | Socket Depth | Tail Type | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 6.58 mm | 0.259 " | 0.063 in | 1.6 mm | 0.051 in | 1.3 mm | 200 Áin | 5.08 Ám | Beryllium Copper | 5.92 mm | 0.233 in | No Tail | Tin | 1.96 mm | 0.077 in |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 6.58 mm | 0.259 " | 0.063 in | 1.6 mm | 0.051 in | 1.3 mm | 30 Áin | 0.76 Ám | Beryllium Copper | 5.92 mm | 0.233 in | No Tail | Gold | 1.96 mm | 0.077 in |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 6.58 mm | 0.259 " | 0.063 in | 1.6 mm | 0.051 in | 1.3 mm | 10 Áin | 0.25 Ám | Beryllium Copper | 5.92 mm | 0.233 in | No Tail | Gold | 1.96 mm | 0.077 in |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 6.58 mm | 0.259 " | 0.063 in | 1.6 mm | 0.051 in | 1.3 mm | 200 Áin | 5.08 Ám | Beryllium Copper | 5.92 mm | 0.233 in | No Tail | Tin-Lead | 1.96 mm | 0.077 in |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 6.58 mm | 0.259 " | 0.063 in | 1.6 mm | 0.051 in | 1.3 mm | 30 Áin | 0.76 Ám | Beryllium Copper | 5.92 mm | 0.233 in | No Tail | Gold | 1.96 mm | 0.077 in |
