ESD5111 Series

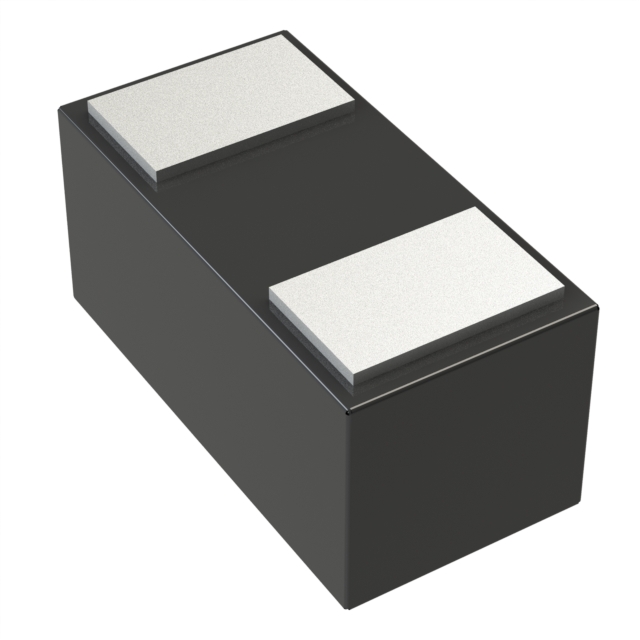

Low Capacitance LVPT ESD Protection Diode in WLCSP2

Catalog

Low Capacitance LVPT ESD Protection Diode in WLCSP2

Part	Power Line Protection	Voltage - Reverse Standoff (Typ)	Bidirectional Channels [custom]	Capacitance @ Frequency	Type	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp
ON Semiconductor ESD5111FCT5G		3.3 V	1	5.5 pF	Zener	General Purpose	6.5 V	Surface Mount	2-XFBGA WLCSP	2-WLCSP (0.6x0.3)	125 ¯C	-55 °C	3.68 V	16 A
ON Semiconductor ESD5111PFCT5G		3.3 V	1	5.5 pF	Zener	General Purpose		Surface Mount	2-XFBGA WLCSP	2-WLCSP (0.6x0.3)	125 ¯C	-55 °C	3.68 V		6.5 V

Catalog

Low Capacitance LVPT ESD Protection Diode in WLCSP2

Key Features

• Low Capacitance (5 pF Max, I/O to GND)

• Small Body Outline Dimensions0201 Size: 0.6 x 0.3 mm

• Protection for the Following IEC Standards:IEC 61000−4−2 (Level 4)

• Low ESD Clamping Voltage

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant

Description

The ESD51x1 Series is designed to protect voltage sensitivecomponents from ESD. Excellent clamping capability, low leakage,and fast response time provide best in class protection on designs thatare exposed to ESD. Because of its small size, it is suited for use insmartphone, smart-watch, or many other portable / wearableapplications where board space comes at a premium.
