SFW20S Series

Catalog

CONN FPC VERT 20POS 1MM SMD

Part	Housing Color	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Mounting Type	Cable End Type	Flat Flex Type	Contact Finish	Pitch	Pitch	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Material Flammability Rating	FFC, FCB Thickness	Termination	Number of Positions	Actuator Material	Connector/Contact Type	Locking Feature	Actuator Color	Features	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFW20S-2STMAE1LF	Brown	20	0.209 in	5.3 mm	Surface Mount	Straight or Tapered	FPC	Gold	1 mm	0.039 in	Phosphor Bronze	100 V	-55 C	85 °C	Glass Filled Thermoplastic	UL94 V-0	0.3 mm	Kinked Pin	20	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided

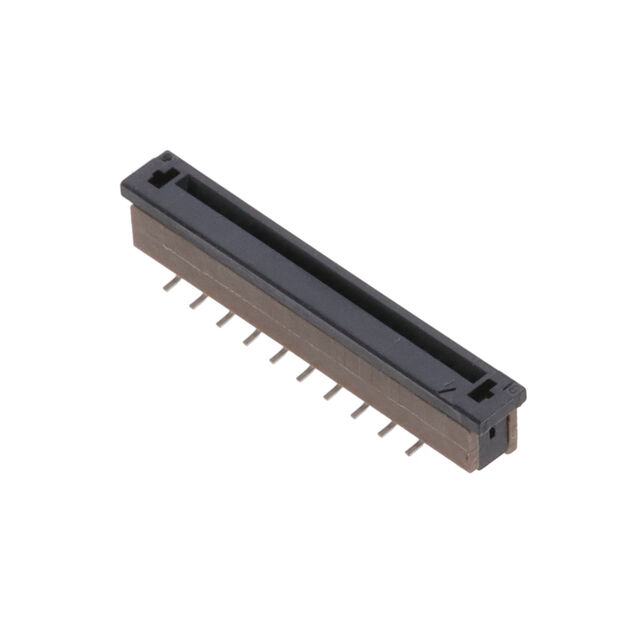

Amphenol ICC (FCI) SFW20S-2STE1LF	Brown	20	0.209 in	5.3 mm	Surface Mount		FFC FPC	Tin	1 mm	0.039 in	Phosphor Bronze	100 V	-55 C	105 ░C	Glass Filled Thermoplastic	UL94 V-0	0.33 mm	Solder	20	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided	Slide Lock

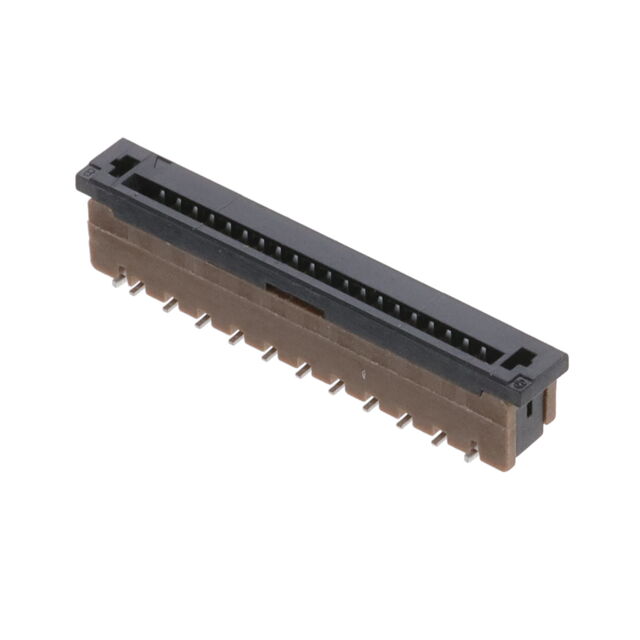

Amphenol ICC (FCI) SFW20S-2STME1LF	Brown	20	0.209 in	5.3 mm	Surface Mount		FFC FPC	Tin	1 mm	0.039 in	Phosphor Bronze	100 V	-55 C	105 ░C	Glass Filled Thermoplastic	UL94 V-0	0.33 mm	Solder	20	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided

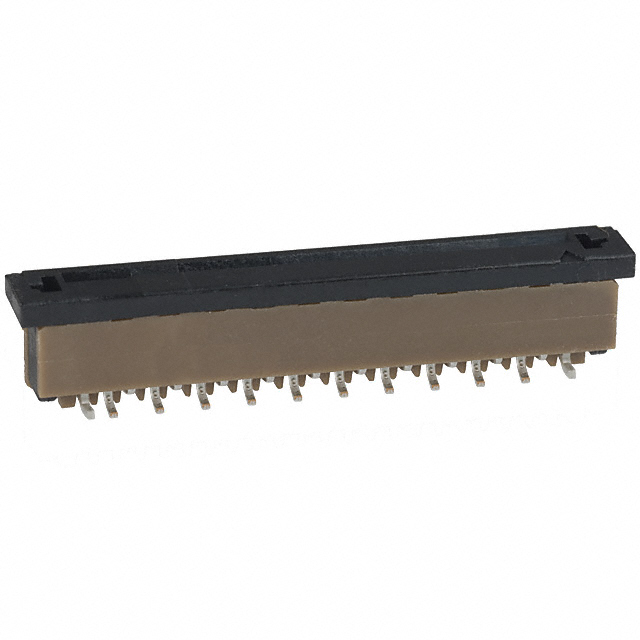

Amphenol ICC (FCI) SFW20S-2STME1	Brown	20	0.209 in	5.3 mm	Surface Mount	Straight Tapered	FFC FPC	Tin Alloy	1 mm	0.039 in	Phosphor Bronze	100 V	-55 C	85 °C	Glass Filled Thermoplastic	UL94 V-0		Solder	20	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided	Slide Lock	Black	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW20S-6STME1	Brown	10	0.209 in	5.3 mm	Surface Mount	Tapered	CIC	Tin Alloy	1 mm	0.039 in	Phosphor Bronze	100 V	-55 C	85 °C	Glass Filled Thermoplastic	UL94 V-0	0.3 mm	Solder	20	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided	Slide Lock	Black	Solder Retention Zero Insertion Force (ZIF)
