LCA2 Series

Catalog

CONN TERM RECT TONG 2 AWG #5/16

Part	Contact Finish	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Material	Terminal Type	Mounting Type	Color	Terminal Style	Termination	Wire Gauge	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Insulation	Width - Outer Edges	Width - Outer Edges	Diameter - Ring ID	Tab Thickness [x]	Tab Thickness [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]

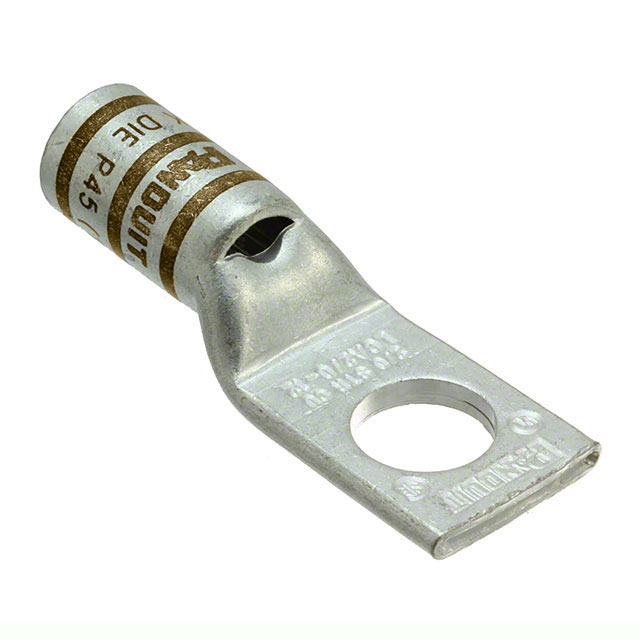

Panduit Corp LCA2-56-Q	Electro-Tin	8.64 mm	0.34 in	7.87 mm	0.31 in	0.42 in	10.67 mm	Copper	Rectangular Tongue	Free Hanging (In-Line)	Brown	Single Stud Hole	Barrel Crimp	2 AWG	2.54 mm	0.1 in	48.26 mm	1.9 in	0.3125 Stud	Non-Insulated	16.76 mm	0.66 in

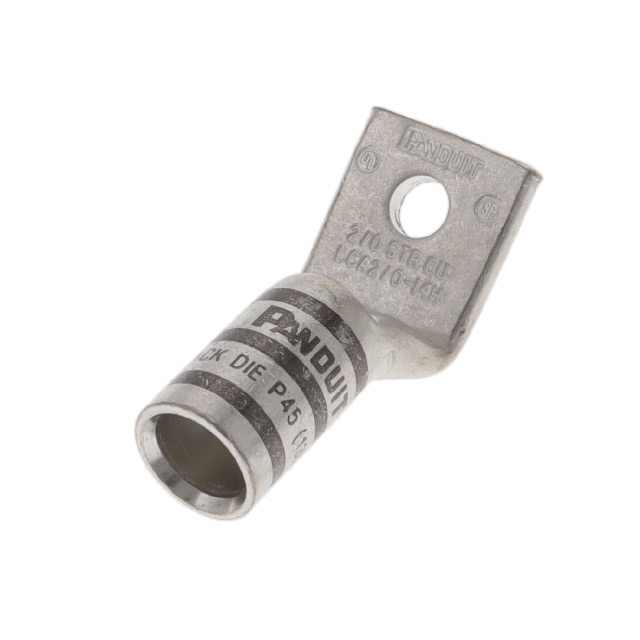

Panduit Corp LCA2/0-14H-X	Electro-Tin		6.86 mm	11.43 mm	0.45 in	0.58 "	14.73 mm	Copper	Rectangular Tongue	Free Hanging (In-Line)	Black	Single Stud Hole	Barrel Crimp						0.25 Stud	Non-Insulated			0.27 in	3.3 mm	0.13 in	0.85 in	21.59 mm

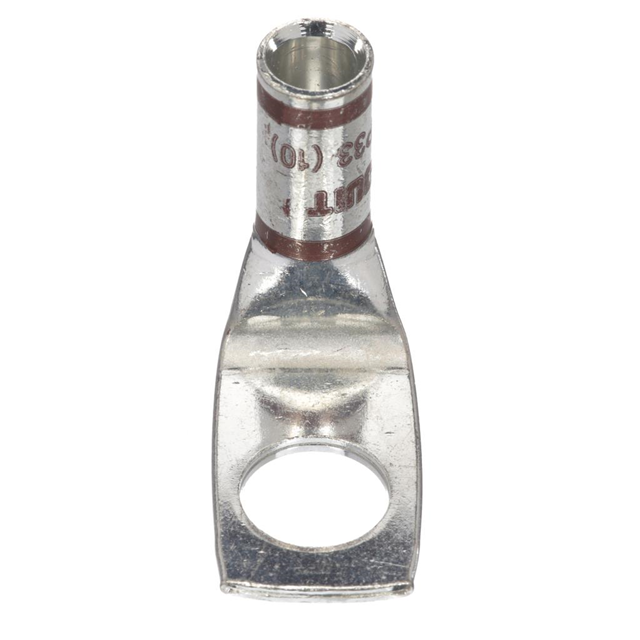

Panduit Corp LCA2-12F-Q	Electro-Tin	13.46 mm	0.53 in	7.87 mm	0.31 in	0.42 in	10.67 mm	Copper	Rectangular Tongue	Free Hanging (In-Line) Right Angle	Brown	Single Stud Hole	Barrel Crimp	2 AWG	2.03 mm	0.08 "			0.5 Stud	Non-Insulated						0.75 in	19.05 mm

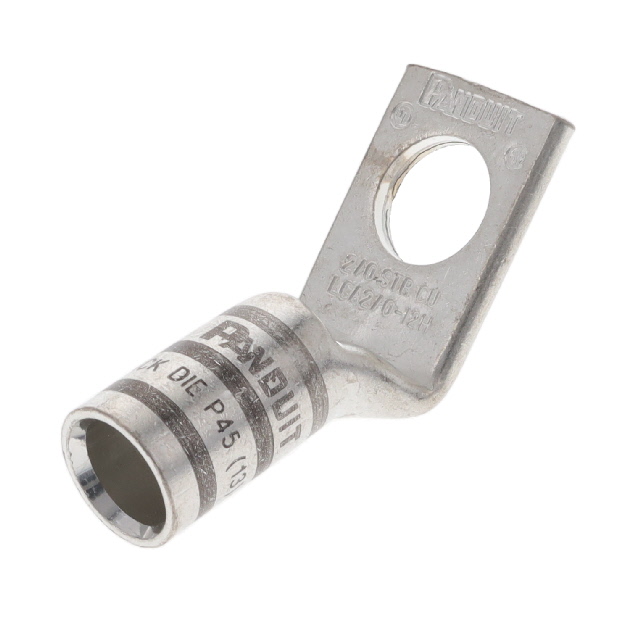

Panduit Corp LCA2/0-12H-X	Electro-Tin	13.46 mm	0.53 in	11.43 mm	0.45 in	0.58 "	14.73 mm	Copper	Rectangular Tongue	Free Hanging (In-Line)	Black	Single Stud Hole	Barrel Crimp						0.5 Stud	Non-Insulated				3.3 mm	0.13 in	0.85 in	21.59 mm
Panduit Corp LCA2/0-38F-X	Electro-Tin			11.43 mm	0.45 in	0.58 "	14.73 mm	Copper	Rectangular Tongue	Free Hanging (In-Line) Right Angle	Black	Single Stud Hole	Barrel Crimp						0.375 Stud	Non-Insulated				3.3 mm	0.13 in	0.85 in	21.59 mm	10.41 mm	0.41 "

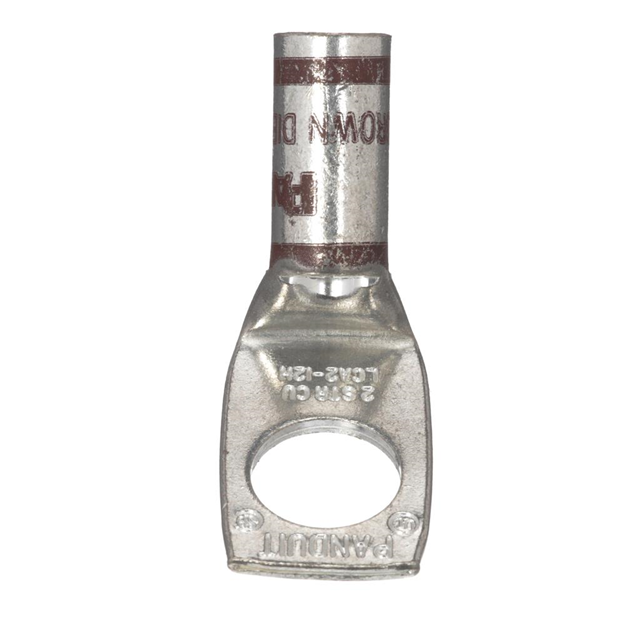

Panduit Corp LCA2-12H-Q	Electro-Tin	13.46 mm	0.53 in	7.87 mm	0.31 in	0.42 in	10.67 mm	Copper	Rectangular Tongue	Free Hanging (In-Line)	Brown	Single Stud Hole	Barrel Crimp	2 AWG	2.03 mm	0.08 "			0.5 Stud	Non-Insulated						0.75 in	19.05 mm

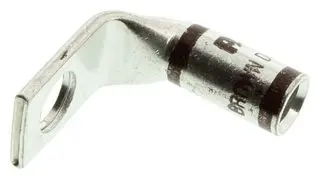

Panduit Corp LCA2-38F-Q	Electro-Tin			7.87 mm	0.31 in	0.42 in	10.67 mm	Copper	Rectangular Tongue	Free Hanging (In-Line) Right Angle	Brown	Single Stud Hole	Barrel Crimp	2 AWG	2.54 mm	0.1 in			0.375 Stud	Non-Insulated	16.76 mm	0.66 in						10.41 mm	0.41 "
Panduit Corp LCA2-14H-Q	Electro-Tin		6.86 mm	7.87 mm	0.31 in	0.42 in	10.67 mm	Copper	Rectangular Tongue	Free Hanging (In-Line)	Brown	Single Stud Hole	Barrel Crimp	2 AWG	2.54 mm	0.1 in			0.25 Stud	Non-Insulated	15.24 mm		0.27 in			0.6 "
Panduit Corp LCA2-14-Q	Electro-Tin		6.86 mm	7.87 mm	0.31 in	0.42 in	10.67 mm	Copper	Lug Grounding	Free Hanging (In-Line)	Brown	Single Stud Hole	Barrel Crimp	2 AWG	2.54 mm	0.1 in	45 mm	1.772 in	0.25 Stud	Non-Insulated	15.24 mm		0.27 in			0.6 "
Panduit Corp LCA2/0-56-X	Electro-Tin	8.64 mm	0.34 in	11.43 mm	0.45 in	0.58 "	14.73 mm	Copper	Rectangular Tongue	Free Hanging (In-Line)	Black	Single Stud Hole	Barrel Crimp				52.83 mm	2.08 "	0.3125 Stud	Non-Insulated				3.3 mm	0.13 in	0.85 in	21.59 mm
