FA-20H Series

Manufacturer: EPSON

Catalog

Catalog

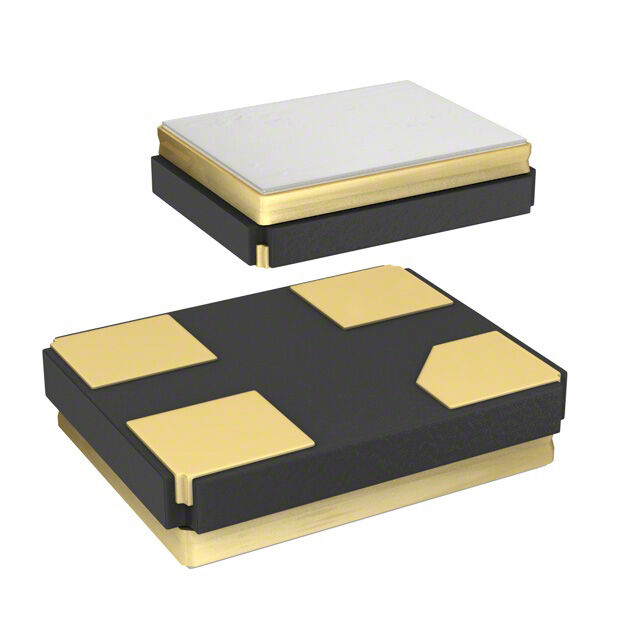

FA-20H 24.0000MD30V-C5: SMD XTAL

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency Tolerance	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Frequency	Load Capacitance	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Mode
EPSON FA-20H 24.0000MD30V-C5	70 °C 85 °C	-40 C -20 ░C	4-SMD No Lead	30 ppm	30 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	24 MHz	18 pF	2	2.5	4-SMD	80 Ohm	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 25.00M-J0NNJJG60RGB	85 °C	-40 C	4-SMD No Lead	20 ppm	18 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	25 MHz	18 pF	2	2.5	4-SMD	60 Ohms 80 Ohm	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 24.0000MF10Z-AC	85 °C	-40 C	4-SMD No Lead	10 ppm	10 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	24 MHz	9 pF	2	2.5	4-SMD	80 Ohm	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 26.0000MF13P-GG	85 °C	-20 ░C	4-SMD No Lead	10 ppm	13 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	26 MHz	8.8 pF 20 pF	2	2.5	4-SMD	60 Ohms	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 25.00M-J0YYYYU50RGB	85 °C	-40 C	4-SMD No Lead	30 ppm	30 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	25 MHz	18 pF	2	2.5	4-SMD	50 Ohms 80 Ohm	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 16.0000MD30X-G	85 °C	-40 C	4-SMD No Lead	30 ppm	30 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	16 MHz	20 pF	2	2.5	4-SMD	80 Ohm	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 33.33333MA20X-AJ0	85 °C	-40 C	4-SMD No Lead	20 ppm	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	33.33333 MHz	8 pF	2	2.5	4-SMD	50 Ohms	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 38.4000MF10Z-AS5	85 °C	-40 C	4-SMD No Lead	10 ppm	10 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	38.4 MHz	8.5 pF	2	2.5	4-SMD	40 Ohms	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 16.0000MA20V-AC7	70 °C 85 °C	-40 C -20 ░C	4-SMD No Lead	20 ppm	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	16 MHz	9 pF	2	2.5	4-SMD	80 Ohm	0.55 mm	0.022 in	Fundamental
EPSON FA-20H 38.88M-A0FFTTG50RG5	85 °C	-40 C	4-SMD No Lead	15 ppm	25 ppm	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	38.88 MHz	10 pF	2	2.5	4-SMD	40 Ohms 50 Ohms	0.55 mm	0.022 in	Fundamental
